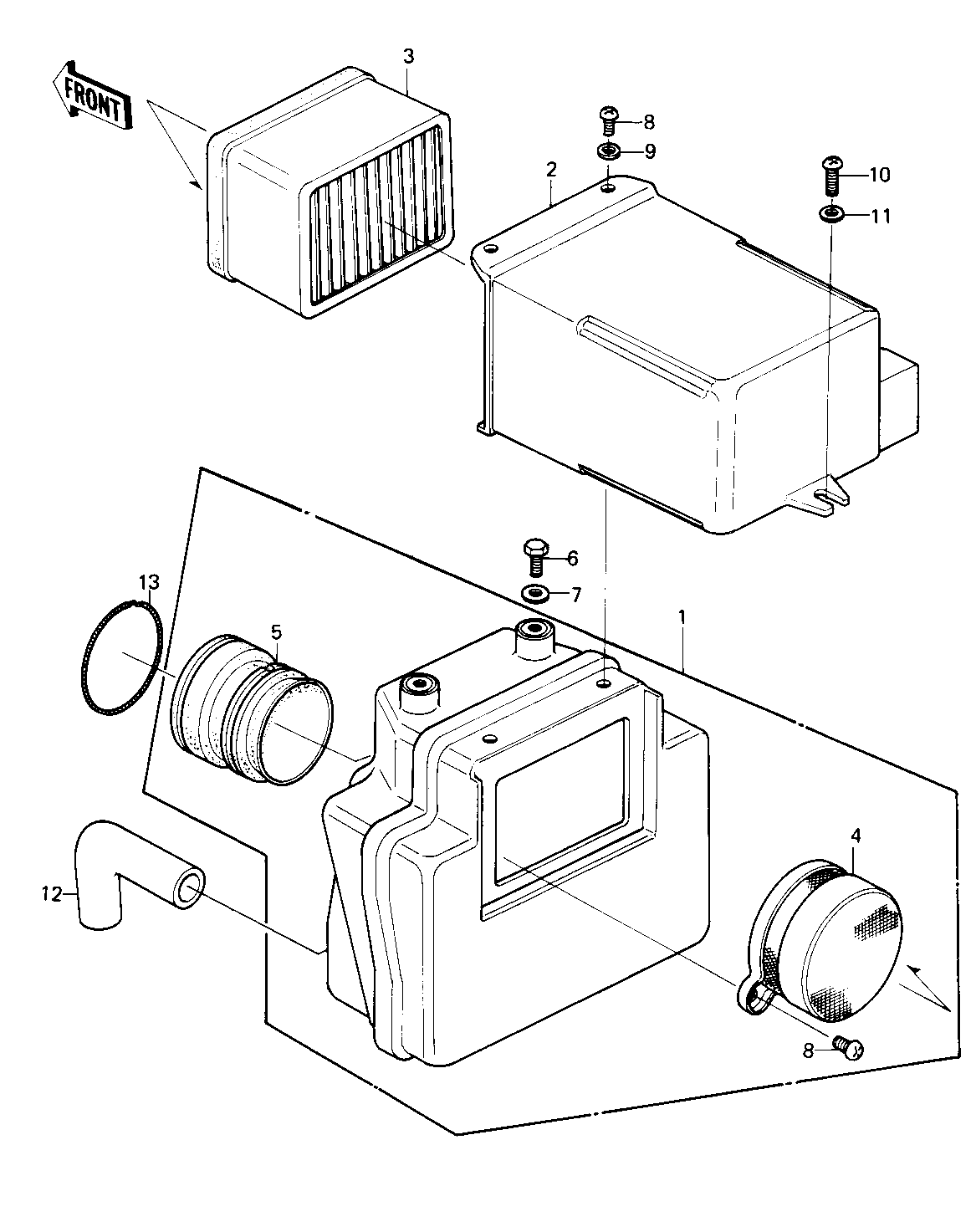

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
AIR CLEANER ASSY 1 11010-5022 1
CAP,AIR CLEANER 2 11012-1103 1
ELEMENT,AIR CLNR 3 11013-1030 1
HOLDER AIR CLEANER 4 13091-1067 1
DUCT,AIR CLEANER 5 14073-1031 1
BOLT-UPSET,6X12 6 112G0612 2
WASHER PLAIN 6MM 7 411B0600 2
SCREW PAN HEAD 6X10 8 220B0610 4
WASHER PLAIN 6MM 9 410B0600 2
SCREW PAN HEAD 6X14 10 220B0614 1
WASHER,6.5X16X2 11 92022-1565 1
TUBE,BREATHER 12 92059-1113 1
SPRING,AIR CLEANER 13 92081-1178 1
