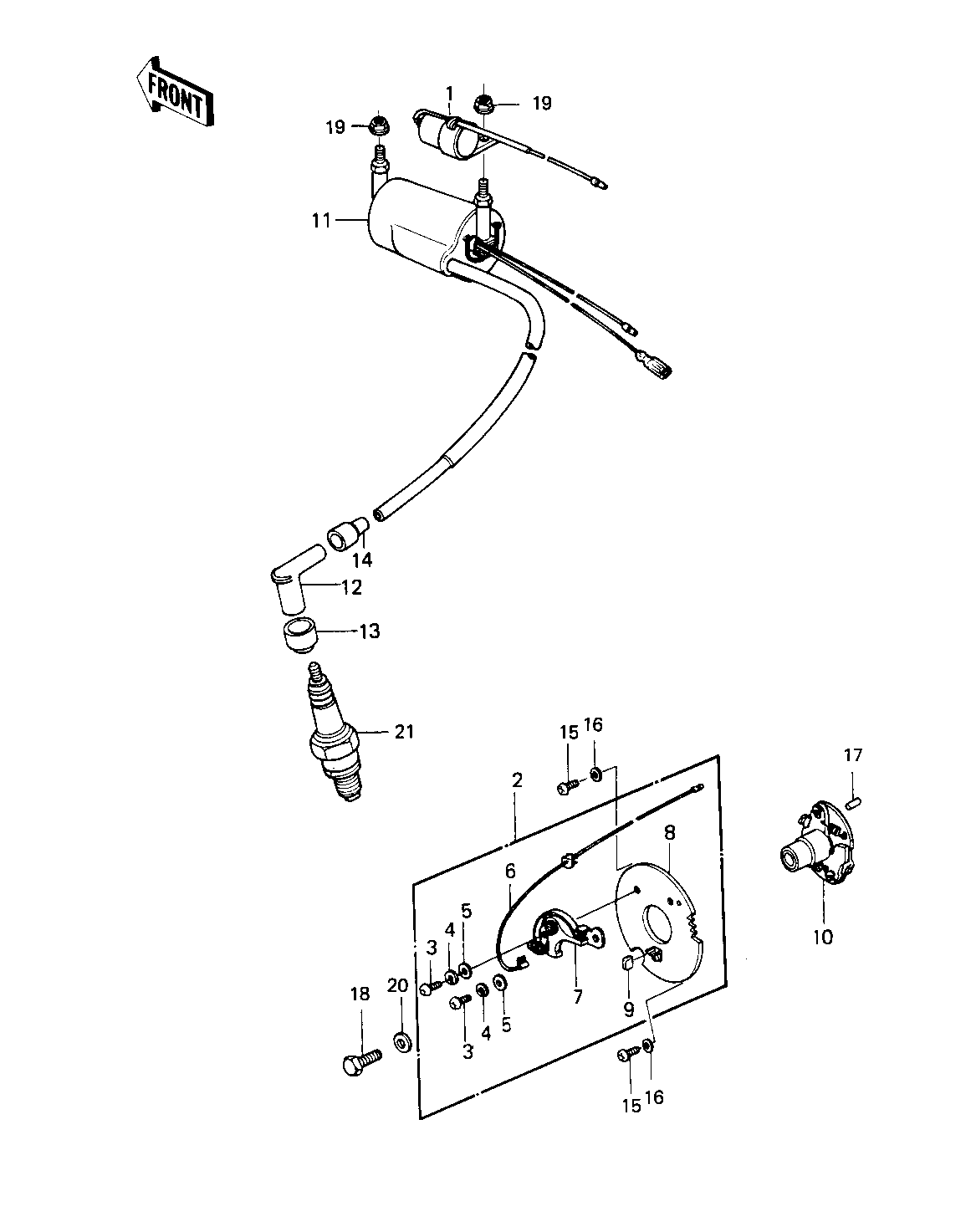

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
CONDENSER | 1 | 21013-036 | 1 | ||
BREAKER ASSY, CONTACT | 2 | 21135-013 | 1 | ||
SCREW PAN HEAD 4X6 | 3 | 220B0406 | 2 | ||
WASHER SPRING 4MM | 4 | 461F0400 | 2 | ||
WASHER PLAIN 4MM | 5 | 410B0400 | 2 | ||
WIRING HARNESS,CONTAC | 6 | 26001-1020 | 1 | ||
BREAKER,CONTACT | 7 | 21008-1002 | 1 | ||
BASE,CONTACT BREAKER | 8 | 21021-1001 | 1 | ||
FELT OIL | 9 | 21019-005 | 1 | ||
ADVANCER,AUT TIMMING | 10 | 21148-1015 | 1 | ||
COIL,IGNITION | 11 | 21121-1026 | 1 | ||
CAP-SPARK PLUG,RTFM20 | 12 | 21130-1007 | 1 | ||
GROMMET-PLUG CAP,A | 13 | 21131-004 | 1 | ||
GROMMET,SPARK PLG CAP | 14 | 21132-005 | 1 | ||
SCREW PAN HEAD 6X10 | 15 | 220B0610 | 2 | ||
WASHER PLAIN 6MM | 16 | 410B0600 | 2 | ||
PIN DOWEL 3X8 | 17 | 551A0308 | 1 | ||
BOLT,6X14 | 18 | 92003-221 | 1 | ||
NUT-6MM | 19 | 92015-1078 | 2 | ||
WASHER,PLAIN | 20 | 92022-323 | 1 | ||
SPARK PLUG B7ES | 21 | B7ES | 1 | LOCAL PROCUREMENT ITEM |
