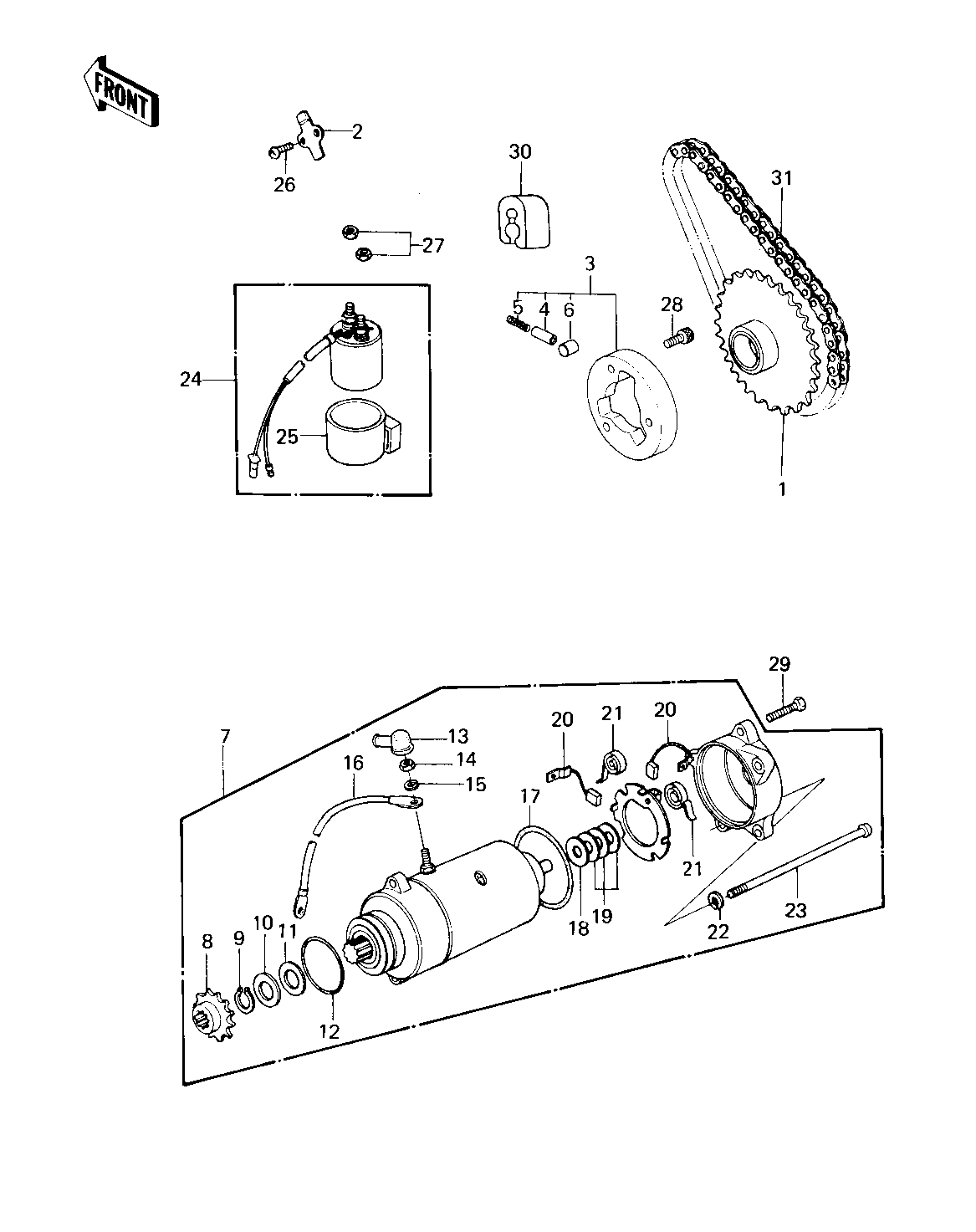

1980 KZ250 - STARTER MOTOR/STARTER CLUTCH ('80 D1)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SPROCKET,STARTER 1 12046-1023 1
PLATE 2 13169-1010 1
CLUTCH ASSY,STARTING 3 13193-1006 1
PIN 4 92043-087 3
SPRING 5 92081-110 3
PIN 6 92122-001 3
STARTER-ELECTRIC 7 21163-1036 1
SPROCKET,STARTER MOTO 8 12046-1004 1
CIRCLIP,13M/M 9 92033-037 1
WASHER,PLAIN,14MM 10 21025-008 1 0.2 T
WASHER PLAIN 14MM 11 21025-009 1 0.5 T
"0" RING,42.8MM 12 21027-005 1
CAP,STARTING MOTOR 13 21017-020 2
NUT 6MM 14 312B0600 1
WASHER SPRING 6MM 15 461F0600 1
WIRE-LEAD,STARTER MOT 16 26011-1201 1
"0" RING,62MM 17 21027-006 1
WASHER,THRUST,1.6T 18 21025-010 1
WASHER,THRUST,0.2T 19 21025-011 AR
BRUSH CARBON 20 21039-004 2
SPRING CARBON BRUSH 21 21040-004 2
WASHER SPRING 6MM 22 461F0600 2
SCREW,PAN HEAD,6X130 23 92001-1046 2
SWITCH ASSY,MAGNETIC 24 21164-005 1
DAMPER MAG SWITCH SHK 25 21064-002 1
SCREW PAN HEAD 6X14 26 220B0614 1
NUT,6M/M 27 311G0600 2
BOLT 28 120P0816 3
BOLT,FLANGED,6X25 29 130G0625 2
CLAMP,CABLE 30 92037-1049 1
CHAIN,DYNAMO 31 92057-1009 1
