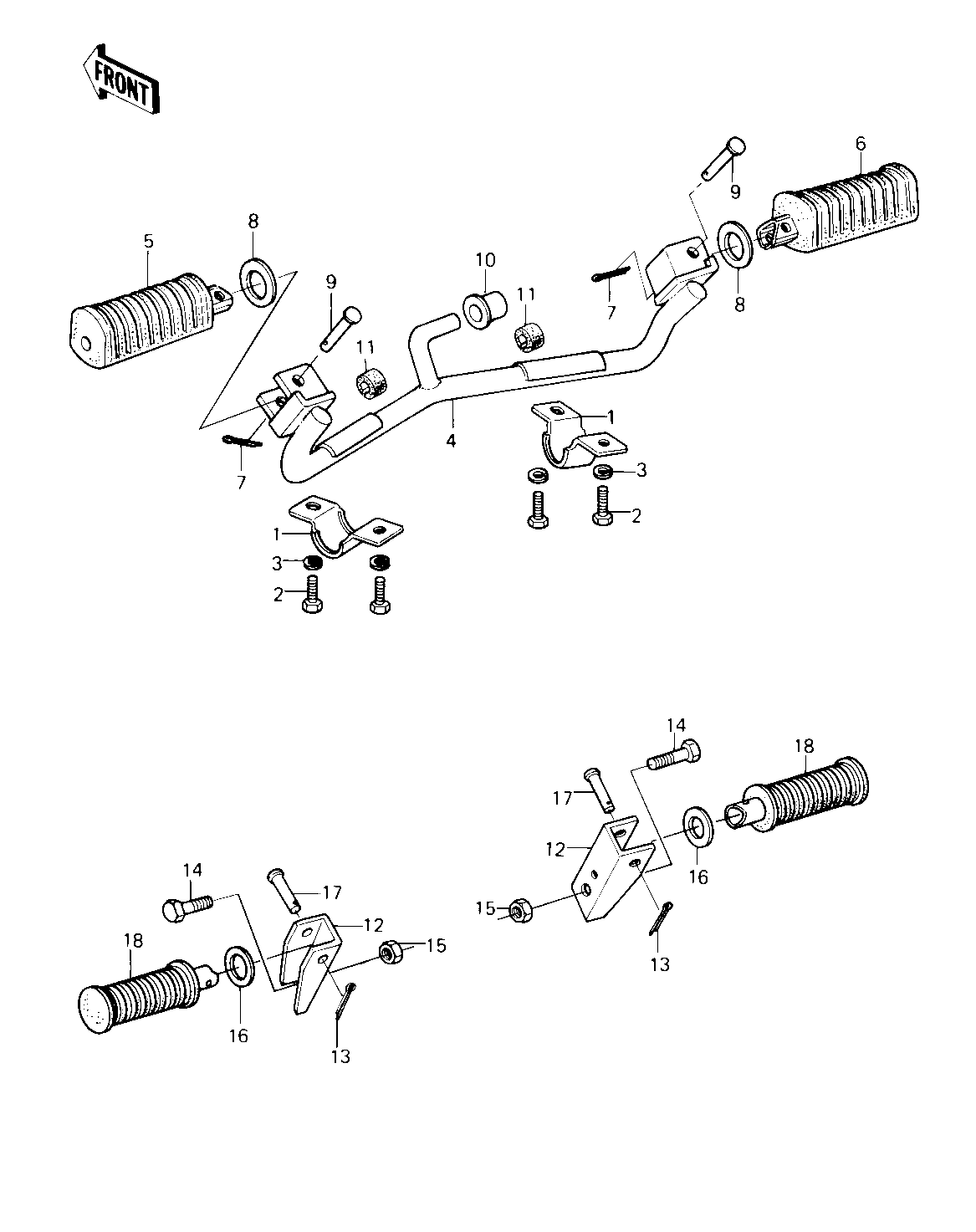

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
HOLDER,FOOTREST 1 13091-1003 2
BOLT-SMALL-UPSET,8X16 2 115G0816 4
WASHER SPRING 8MM 3 461F0800 4
BAR,FOOT REST 4 34003-1058 1
STEP-ASSY,FR,LH 5 34027-1106 1
STEP-ASSY,FR,RH 6 34027-1107 1
PIN COTTER 2.5X16 7 550D2516 2
WASHER,PLAIN 8 92022-250 2
PIN,FOOTREST BAR FIT 9 92043-115 2
DAMPER,RUBBER 10 92075-1029 1
DAMPER,RUBBER 11 92075-306 2
HOLDER,REAR FOOTREST 12 34003-1025 2
PIN,COTTER,2.0X12 13 550D2012 2
BOLT,HEX HEAD,10X40 14 92003-213 2
NUT,LOCK,10MM 15 92019-021 2
WASHER-PLAIN (OPT) 16 92022-199 2
PIN 17 92043-1464 2
RUBBER,FOOTREST 18 92076-027 2
