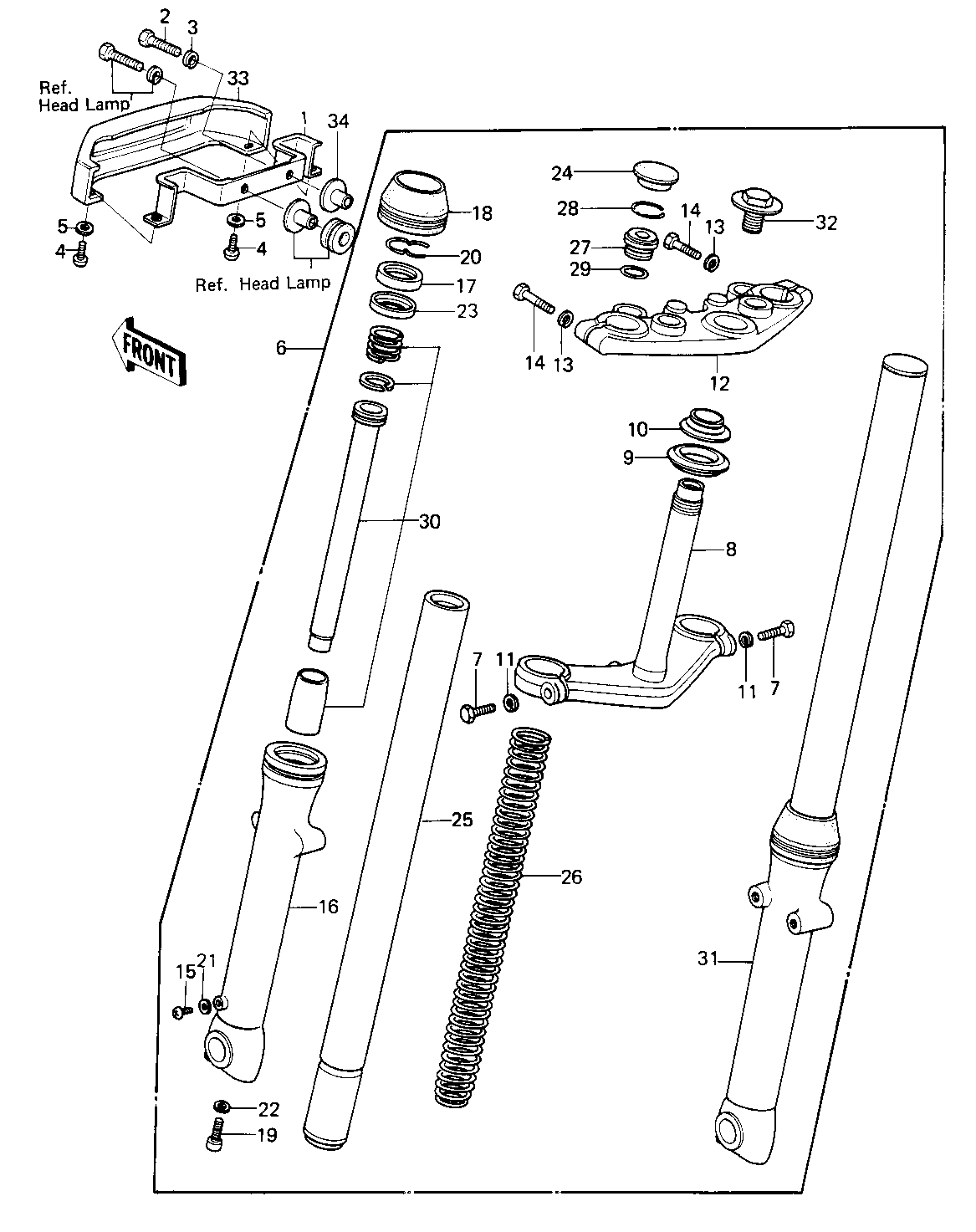

1980 KZ250 - FRONT FORK ('80 D1)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,FORK COVER 1 11034-1698 1
BOLT-UPSET 2 112G0625 1
WASHER SPRING 6MM 3 461F0600 1
SCREW PAN HEAD 4X10 4 220B0410 2
WASHER PLAIN 4MM 5 410B0400 2
FORK-FRONT 6 44001-1114 1
BOLT,HEX HEAD 10X35 7 92001-1252 2
STEM,STEERING 8 44037-1036 1
SEAL,STEERING STEM 9 44010-027 1
CONE STERNG BERG LOW 10 92047-010 1
WASHER SPRING 10MM 11 461F1000 2
HEAD,STEERING STEM 12 44039-078 1
WASHER SPRING 8MM 13 461F0800 2
BOLT,HEX HEAD,8X40 14 92001-1063 2
SCREW PAN HEAD 4X6 15 220B0406 2
TUBE,LH,FORK OUTER 16 44005-1047 1
OIL SEAL,FORK 17 44009-028 2
DUST SHIELD,FORK 18 44010-037 2
BOLT,FORK CYLINDER 19 44041-078 2
CIRCLIP,45MM 20 44044-020 2
GASKET,FORK DRAIN PLG 21 44045-046 2
GASKET,FORK CYL BOLT 22 44045-051 2
SPACER,OUTER TUBE 23 92026-1069 2
CAP,FORK 24 11012-1124 2
TUBE,FORK INNER 25 44013-1039 2
SPRING,FORK 26 44026-1054 2
GUIDE,SPRING 27 44029-022 2
CIRCLIP 28 44044-023 2
"O" RING 29 44046-025 2
CYLINDER-FORK 30 44023-1005 2
TUBE,RH,FORK OUTER 31 44006-1047 1
BOLT,STEERING STEM HE 32 92001-1741 1
COVER,FORK 33 44033-1042 1
COLLAR 34 92027-251 1
