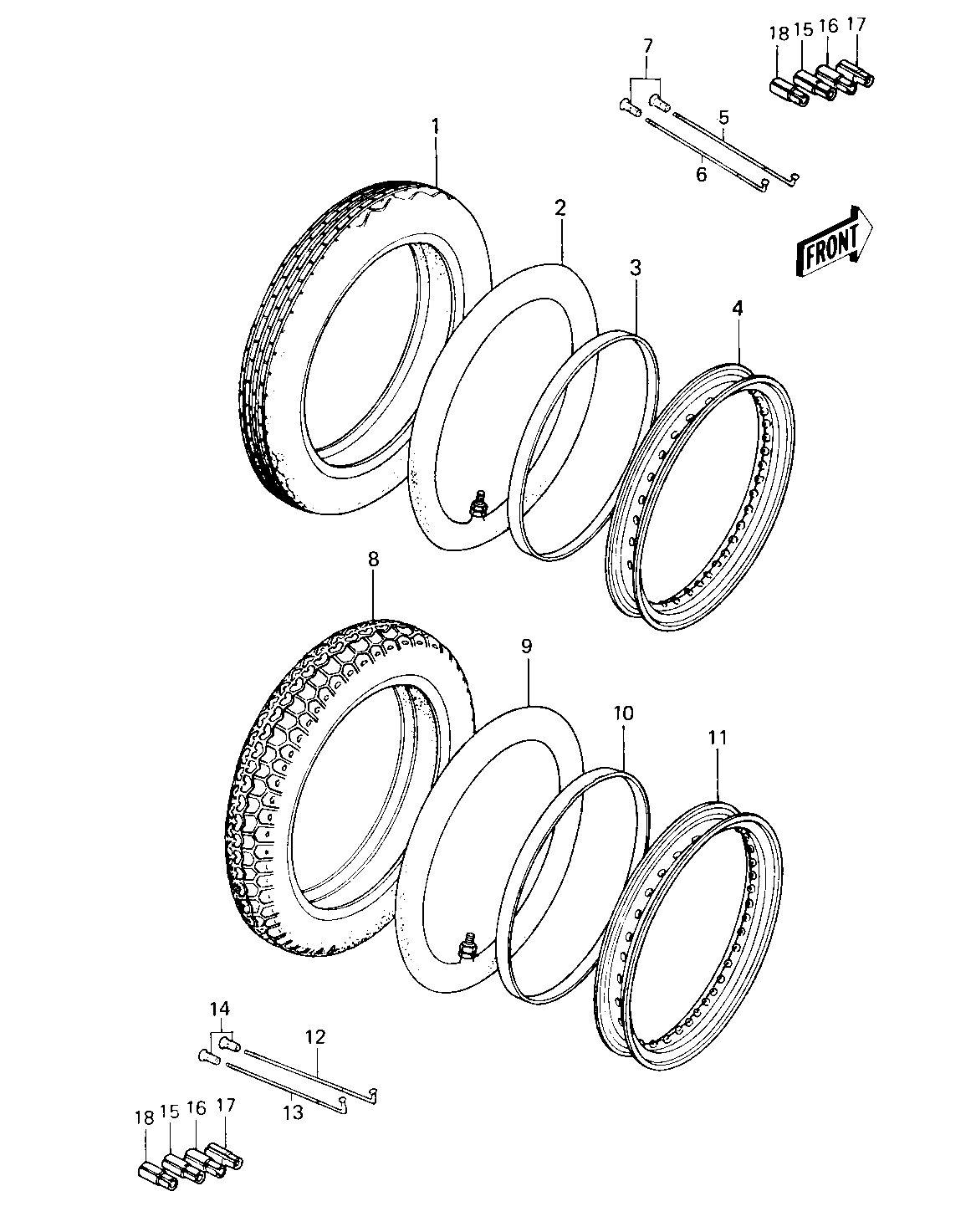

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
TIRE 1 41002-1570 1 Y954
TUBE 250/275-18 2 41022-032 1
BAND RIM 3 41023-001 1 FRONT
RIM,1.60X18 4 41025-1020 1
SPOKE,FR INNER 5 41029-1025 18 102 X 162
SPOKE,FR OUTER 6 41030-1020 18 82 X 161
NIPPLE-SPOKE 7 41032-1055 36
TIRE 460S-16 Y987 R 8 41002-1090 1 Y987
TUBE 460-16 9 41022-1025 1
BAND,RIM 10 41023-1011 1 REAR
RIM,2.15X16 11 41025-1021 1
SPOKE,RR INNER 12 41029-1026 18 98 X 139
SPOKE,RR OUTER 13 41030-1021 18 80 X 138
NIPPLE,SPOKE 14 41032-022 36
WEIGHT,BALANCE,10G 15 41075-1007 AR
WEIGHT,BALANCE,20G 16 41075-1008 AR
WEIGHT,BALANCE,30G 17 41075-1009 AR
WEIGHT,BALANCE,5G 18 41075-1010 AR
