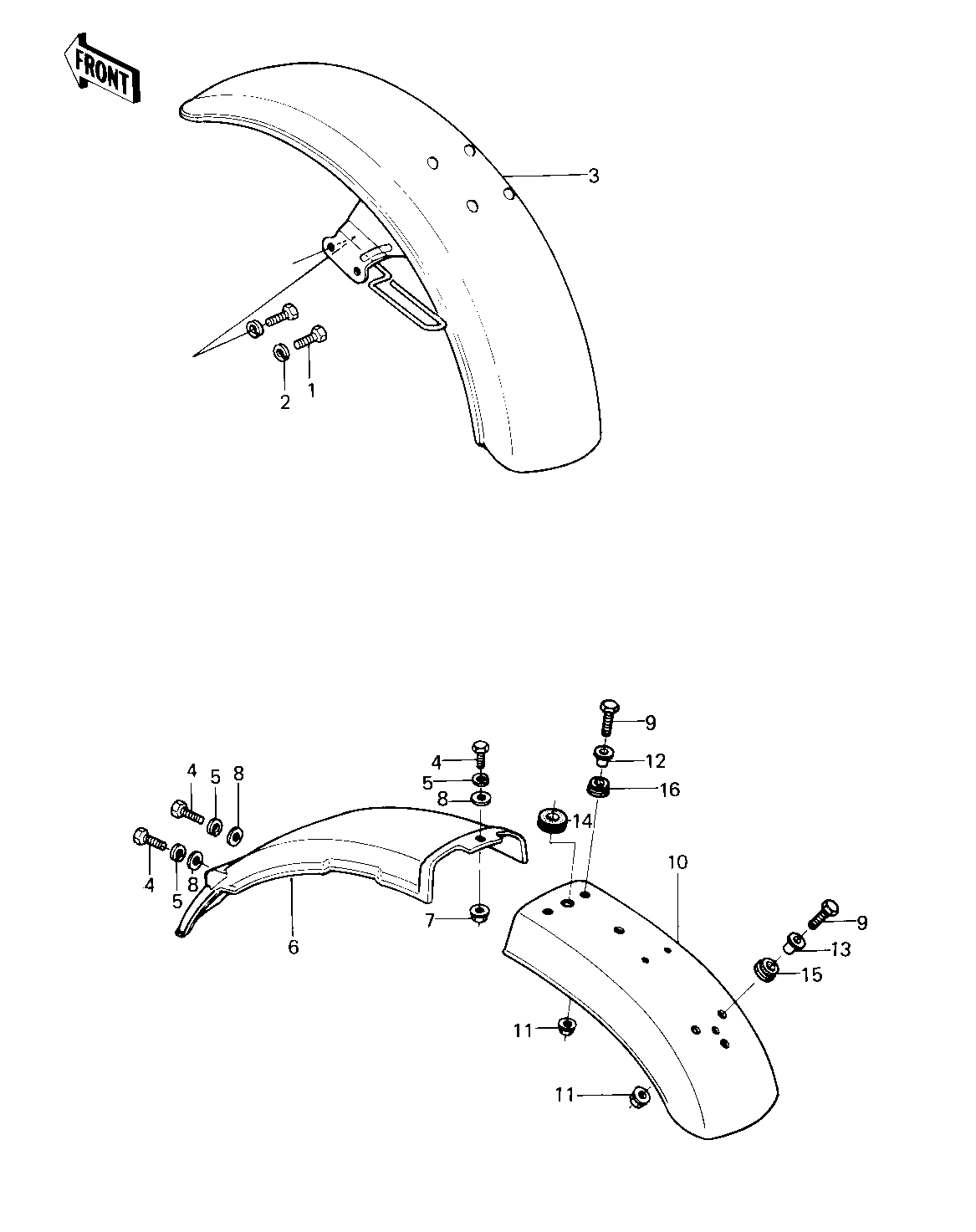

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SMALL-UPSET,8X16 1 115G0816 4
WASHER SPRING 8MM 2 461F0800 4
FENDER-FR 3 35001-1026 1
BOLT-UPSET,6X16 4 112G0616 3
WASHER SPRING 6MM 5 461F0600 3
FENDER-RR 6 35023-1041 1 FRONT
NUT-6MM 7 92015-1078 1
WASHER 6.5X20X1.6T 8 92022-125 3
BOLT 6X22 9 112B0622 4
FENDER-RR 10 35022-1051 1 REAR
NUT-6MM 11 92015-1078 4
COLLAR 12 92027-194 2
COLLAR 13 92027-251 2
GROMMET HARNESS 10MM 14 92071-019 1
DAMPER RUBBER,RR FENR 15 92075-209 2
DAMPER RUBBER 16 92075-277 2
