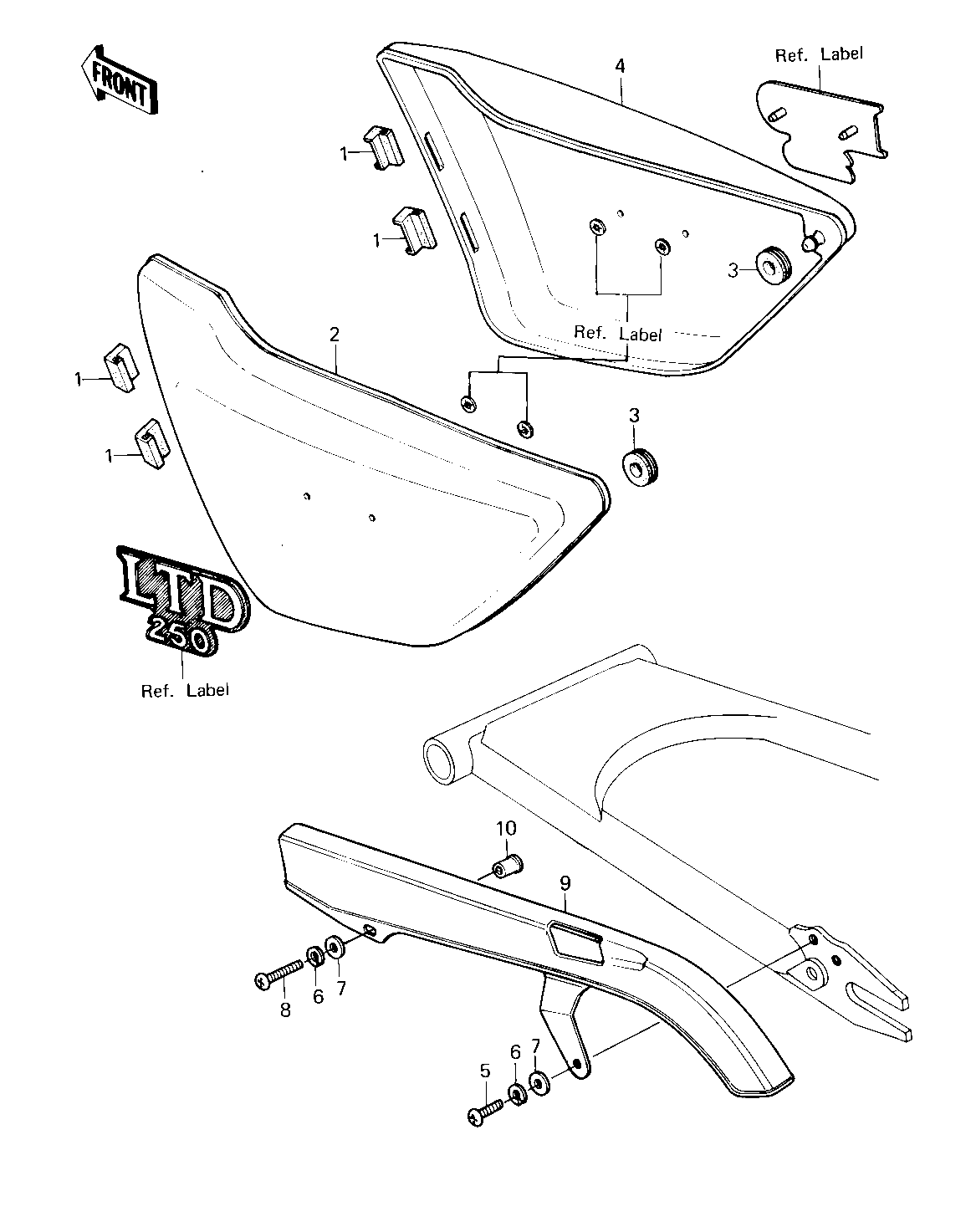

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
PROTECTOR SIDE COVER 1 31082-005 4
COVER,L.H C.P.RED 2 36001-1091-A5 1
COVER,L.H L.D.BLUE 2 36001-1091-7Z 1
GROMMET 3 92071-056 2
COVER,R.H C.P.RED 4 36001-1092-A5 1
COVER,R.H L.D.BLUE 4 36001-1092-7Z 1
SCREW PAN HEAD 6X12 5 220B0612 1
WASHER SPRING 6MM 6 461F0600 2
WASHER PLAIN 6MM 7 411B0600 2
SCREW PAN HEAD 6X50 8 220B0650 1
CASE-CHAIN 9 36014-1021 1
DAMPER,RUBBER 10 92075-1030 1
