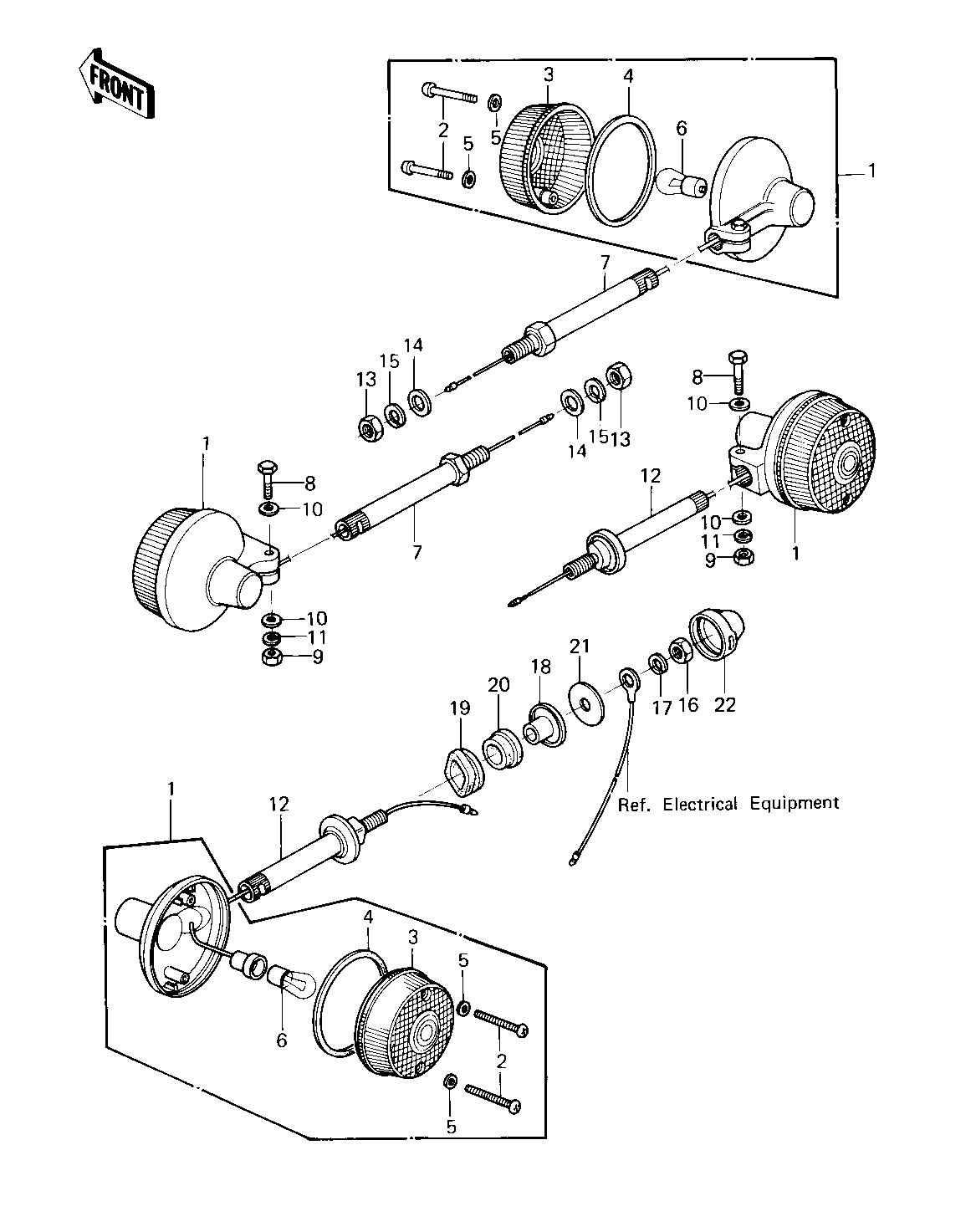

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
LAMP,FRNT TURN SIGNAL | 1 | 23040-1024 | 4 | ||
SCREW-PAN HEAD,4X20 | 2 | 220E0420A | 8 | ||
LENS,TURN SIGNAL LAMP | 3 | 23048-1001 | 4 | ||
GASKET-SIG LAMP LENS | 4 | 23050-003 | 4 | ||
WASHER-PLAIN,4MM | 5 | 23058-002 | 8 | ||
BULB 12V 32CP | 6 | 92069-055 | 4 | ||
BRACKET,SIGNAL LAMP | 7 | 23051-1024 | 2 | ||
BOLT-UPSET | 8 | 112G0630 | 4 | ||
NUT 6MM | 9 | 311B0600 | 4 | ||
WASHER, PLAIN, 6 M/M | 10 | 411B0600 | 8 | ||
WASHER SPRING 6MM | 11 | 461F0600 | 4 | ||
BRACKET,TURN SIGNAL | 12 | 23051-1014 | 2 | ||
NUT 10MM | 13 | 315B1000 | 2 | ||
WASHER-PLAIN,10MM | 14 | 411D1000 | 2 | ||
WASHER SPRING 10MM | 15 | 461F1000 | 2 | ||
NUT 10MM | 16 | 315B1000 | 2 | ||
WASHER SPRING 10MM | 17 | 461F1000 | 2 | ||
COLLAR | 18 | 92027-147 | 2 | ||
DAMPER RUBBER | 19 | 92075-128 | 2 | ||
DAMPER RUBBER,SIG LM | 20 | 92075-158 | 2 | ||
WASHER,PLAIN | 21 | 92022-327 | 2 | ||
RUBBER CAP | 22 | 92073-036 | 2 |
