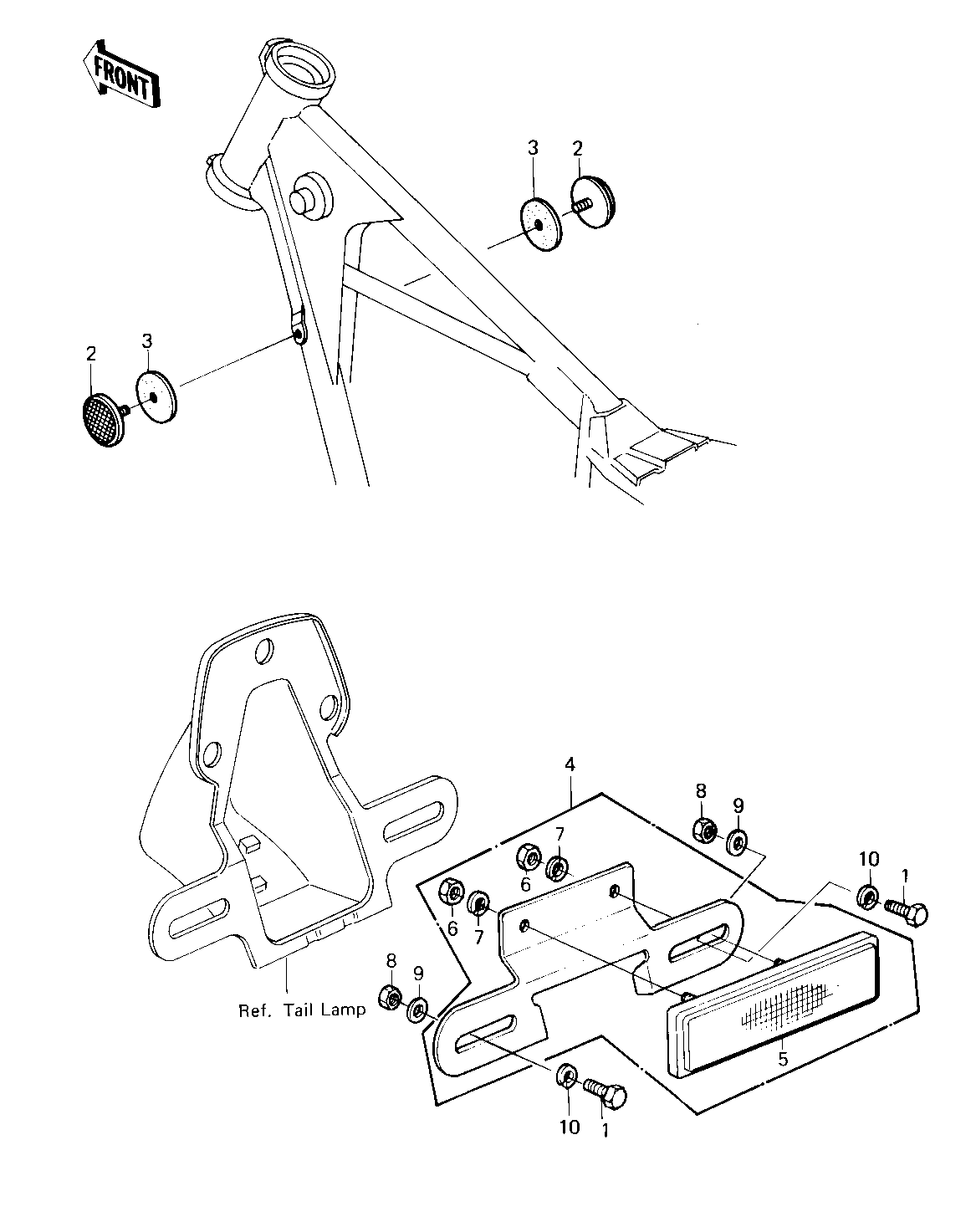

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-UPSET,6X12 1 112G0612 2
REFLECTOR,REFLEX 2 28012-016 2
DAMPER RUBBER,REFLECT 3 92094-011 2
REFLECTOR ASSY,RR 4 28001-1012 1
REFLECTOR,REAR REFLEX 5 28012-1005 1
NUT,5MM 6 311B0500 2
WASHER SPRING 5MM 7 461F0500 2
NUT 6MM 8 311B0600 2
WASHER PLAIN 6MM 9 411B0600 2
WASHER SPRING 6MM 10 461F0600 2
