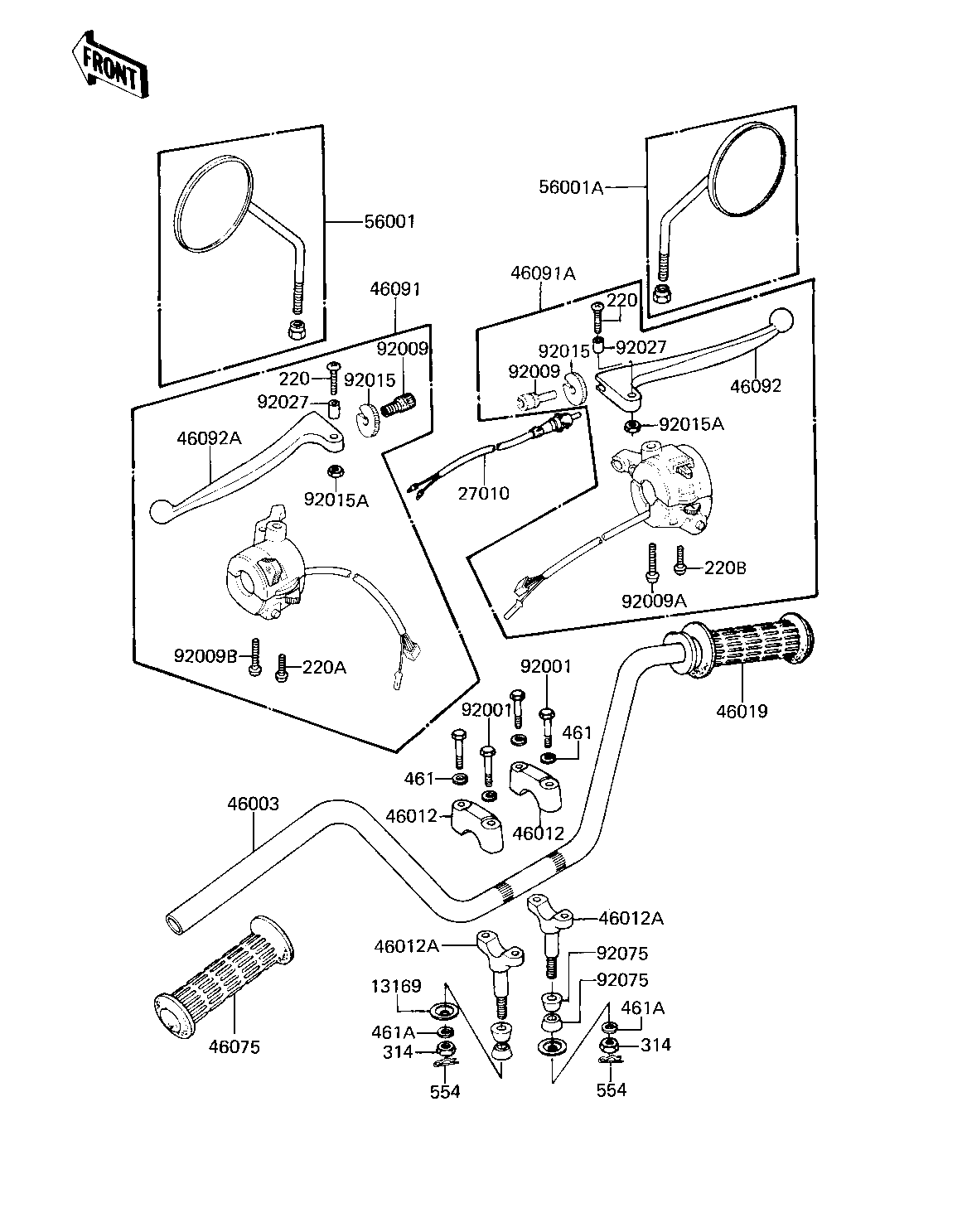

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
CAP HANDLEBAR HOLDER | 13169 | 46016-003 | 2 | ||
SWITCH-FR. BRAKE LAMP | 27010 | 27021-004 | 1 | ||
HANDLEBAR | 46003 | 46003-1045 | 1 | ||
HOLDER-HANDLEBAR | 46012 | 46012-008 | 2 | ||
HOLDER-HANDLEBAR LOW | 46012A | 46012-010 | 2 | ||
GRIP ASSY,THROTTLE | 46019 | 46019-041 | 1 | ||
RUBBER,L.H GRIP | 46075 | 46075-028 | 1 | ||
HOUSING.ASSY,L.H | 46091 | 46091-1085 | 1 | ||
HOUSING-ASSY-CONTROL | 46091A | 46091-1136 | 1 | ||
LEVER,FRONT BRAKE | 46092 | 46058-019 | 1 | ||
LEVER,CLUTCH | 46092A | 46092-024 | 1 | ||
REAR VIEW MIRROR,L.H. | 56001 | 56001-1055 | 1 | ||
MIRROR-ASSY,RH | 56001A | 56001-1077 | 1 | ||
BOLT 8X38 | 92001 | 92001-1405 | 4 | ||
SCREW CABLE ADJUST | 92009 | 46055-003 | 2 | ||
SCREW,PAN HEAD,5X48 | 92009A | 92009-1017 | 1 | ||
SCREW,PAN HEAD,5X38 | 92009B | 92009-1018 | 1 | ||
NUT-LOCK | 92015 | 46056-005 | 2 | ||
NUT-LOCK,5MM | 92015A | 92019-014 | 2 | ||
COLLAR,LEVER | 92027 | 92027-1042 | 2 | ||
DAMPER RUBBER HANDLE | 92075 | 92075-039 | 4 | ||
SCREW PAN HEAD 5X22 | 220 | 220B0522 | 2 | ||
SCREW-PAN-CROS,5X25 | 220A | 220B0525 | 1 | ||
SCREW PAN HEAD 5X30 | 220B | 220B0530 | 1 | ||
NUT,10MM | 314 | 314B1000 | 2 | ||
WASHER SPRING 8MM | 461 | 461F0800 | 4 | ||
WASHER SPRING 10MM | 461A | 461F1000 | 2 | ||
PIN,SNAP | 554 | 554A0800 | 2 |
