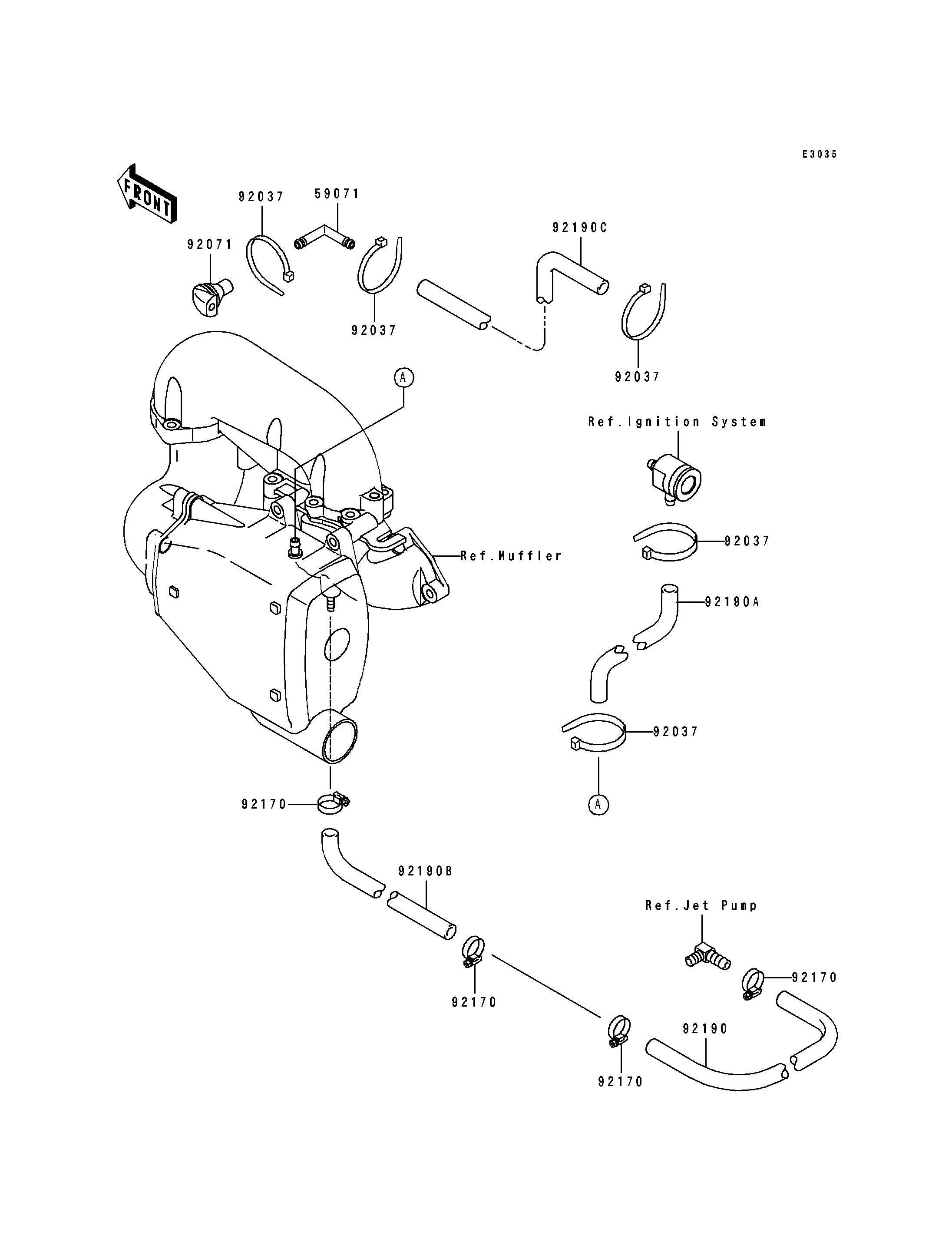

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
JOINT 59071 59071-3706 1
CLAMP 92037 92037-1173 5
GROMMET 92071 92071-3736 1
CLAMP 92170 92170-3718 4
TUBE,PUMP-HULL 92190 92190-3831 1
TUBE 92190A 92190-3883 1
TUBE,9X16X450 92190B 92190-3914 1
TUBE,5.8X10.8X1231 92190C 92190-3920 1
