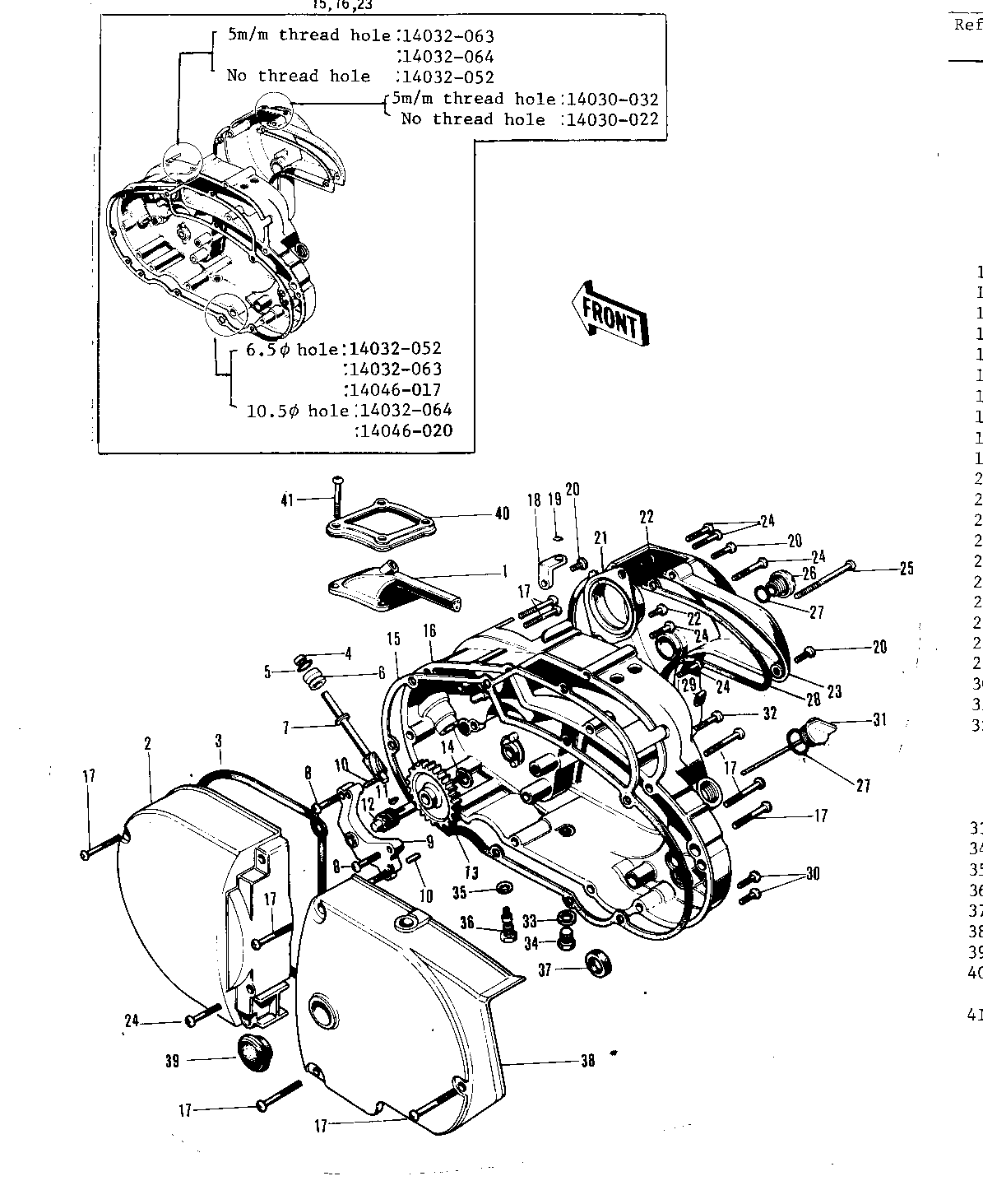

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
CAP,CARBURETOR | 1 | 14038-034 | 1 | ||
COVER,L.H ENGINE,BUFF | 2 | 14031-038-80 | 1 | ||
GASKET-L.H ENG COVER | 3 | 14045-008 | 1 | ||
OIL SEAL | 4 | 92054-004 | 1 | ||
"0" RING | 5 | 92055-025 | 1 | ||
BUSH | 6 | 92028-075 | 1 | ||
GEAR-TACHOMETER | 7 | 13223-004 | 1 | ||
SCREW PAN HEAD 6X25 | 8 | 220B0625 | 3 | ||
HOLDER-TACHOMETER GR | 9 | 14018-004 | 1 | ||
PIN DOWEL 5X12 | 10 | 610A0512 | 2 | ||
WOODRUFF KEY | 11 | 510A3100 | 1 | ||
PINION-TACHOMETER | 12 | 13224-006 | 1 | ||
GEAR-OIL PUMP | 13 | 16085-014 | 1 | 33T | |
WASHER THRUST | 14 | 92026-025 | 1 | ||
GASKET-R.H-ENG.CVR | 15 | 14046-020 | 1 | ||
COVER-R.H.ENGINE | 16 | 14032-064 | 1 | ||
SCREW PAN HEAD 6X55 | 17 | 220B0655 | 9 | ||
HOLDER-OIL PUMP CABLE | 18 | 14044-005 | 1 | ||
CIRCLIP | 19 | 92036-017 | 1 | ||
SCREW PAN HEAD 6X20 | 20 | 220B0620 | 3 | ||
HOLDER-CARBURETOR | 21 | 16065-005 | 1 | ||
SCREW PAN HEAD 6X12 | 22 | 220B0612 | 2 | ||
COVER-CARBURETOR | 23 | 14030-032 | 1 | ||
SCREW PAN HEAD 6X35 | 24 | 220B0635 | 6 | ||
SCREW PAN HEAD 6X70 | 25 | 220B0670 | 1 | ||
PLUG-CARBURETOR COVER | 26 | 92067-006 | 1 | ||
"0" RING,20MM | 27 | 670B2020 | 2 | ||
GASKET-CARBURETOR COV | 28 | 14048-002 | 1 | ||
STOPPER-CARBURETOR | 29 | 14064-001 | 1 | ||
SCREW PAN HEAD 6X30 | 30 | 220B0630 | 2 | ||
PLUG-OIL FILLER | 31 | 16115-017 | 1 | ||
SCREW PAN HEAD 6X35 | 32 | 220B0635 | 1 | USE FOR 14003-054 | |
SCREW PAN HEAD 6X55 | 32 | 220B0655 | 1 | USE FOR 14003-055 14003-057 | |
GASKET CHECK VALVE | 33 | 92065-058 | 1 | ||
PLUG OIL DRAIN | 34 | 92067-001 | 1 | ||
GASKET OIL PIPE BANJO | 35 | 92065-037 | 1 | ||
PLUG-FUEL DRAIN | 36 | 92067-007 | 1 | ||
OIL SEAL SB20285 | 37 | 92049-012 | 1 | ||
COVER,CHAIN-CASE | 38 | 14026-005-E8 | 1 | ||
CAP-CLUTCH HOLE | 39 | 14040-003 | 1 |
CAP,CARBURETOR | |
REF # | 1 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COVER,L.H ENGINE,BUFF | |
REF # | 2 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GASKET-L.H ENG COVER | |
REF # | 3 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
OIL SEAL | |
REF # | 4 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
"0" RING | |
REF # | 5 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BUSH | |
REF # | 6 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GEAR-TACHOMETER | |
REF # | 7 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SCREW PAN HEAD 6X25 | |
REF # | 8 |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS |
HOLDER-TACHOMETER GR | |
REF # | 9 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PIN DOWEL 5X12 | |
REF # | 10 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
WOODRUFF KEY | |
REF # | 11 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PINION-TACHOMETER | |
REF # | 12 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GEAR-OIL PUMP | |
REF # | 13 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | 33T |
WASHER THRUST | |
REF # | 14 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GASKET-R.H-ENG.CVR | |
REF # | 15 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COVER-R.H.ENGINE | |
REF # | 16 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SCREW PAN HEAD 6X55 | |
REF # | 17 |
---|---|
PART NUMBER | |
QUANTITY | 9 |
DESTINATION | |
REMARKS |
HOLDER-OIL PUMP CABLE | |
REF # | 18 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CIRCLIP | |
REF # | 19 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SCREW PAN HEAD 6X20 | |
REF # | 20 |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS |
HOLDER-CARBURETOR | |
REF # | 21 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SCREW PAN HEAD 6X12 | |
REF # | 22 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
COVER-CARBURETOR | |
REF # | 23 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SCREW PAN HEAD 6X35 | |
REF # | 24 |
---|---|
PART NUMBER | |
QUANTITY | 6 |
DESTINATION | |
REMARKS |
SCREW PAN HEAD 6X70 | |
REF # | 25 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PLUG-CARBURETOR COVER | |
REF # | 26 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
"0" RING,20MM | |
REF # | 27 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
GASKET-CARBURETOR COV | |
REF # | 28 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
STOPPER-CARBURETOR | |
REF # | 29 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SCREW PAN HEAD 6X30 | |
REF # | 30 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
PLUG-OIL FILLER | |
REF # | 31 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SCREW PAN HEAD 6X35 | |
REF # | 32 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | USE FOR 14003-054 |
SCREW PAN HEAD 6X55 | |
REF # | 32 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | USE FOR 14003-055 14003-057 |
GASKET CHECK VALVE | |
REF # | 33 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PLUG OIL DRAIN | |
REF # | 34 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GASKET OIL PIPE BANJO | |
REF # | 35 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PLUG-FUEL DRAIN | |
REF # | 36 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
OIL SEAL SB20285 | |
REF # | 37 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COVER,CHAIN-CASE | |
REF # | 38 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CAP-CLUTCH HOLE | |
REF # | 39 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
