Parts Diagrams |

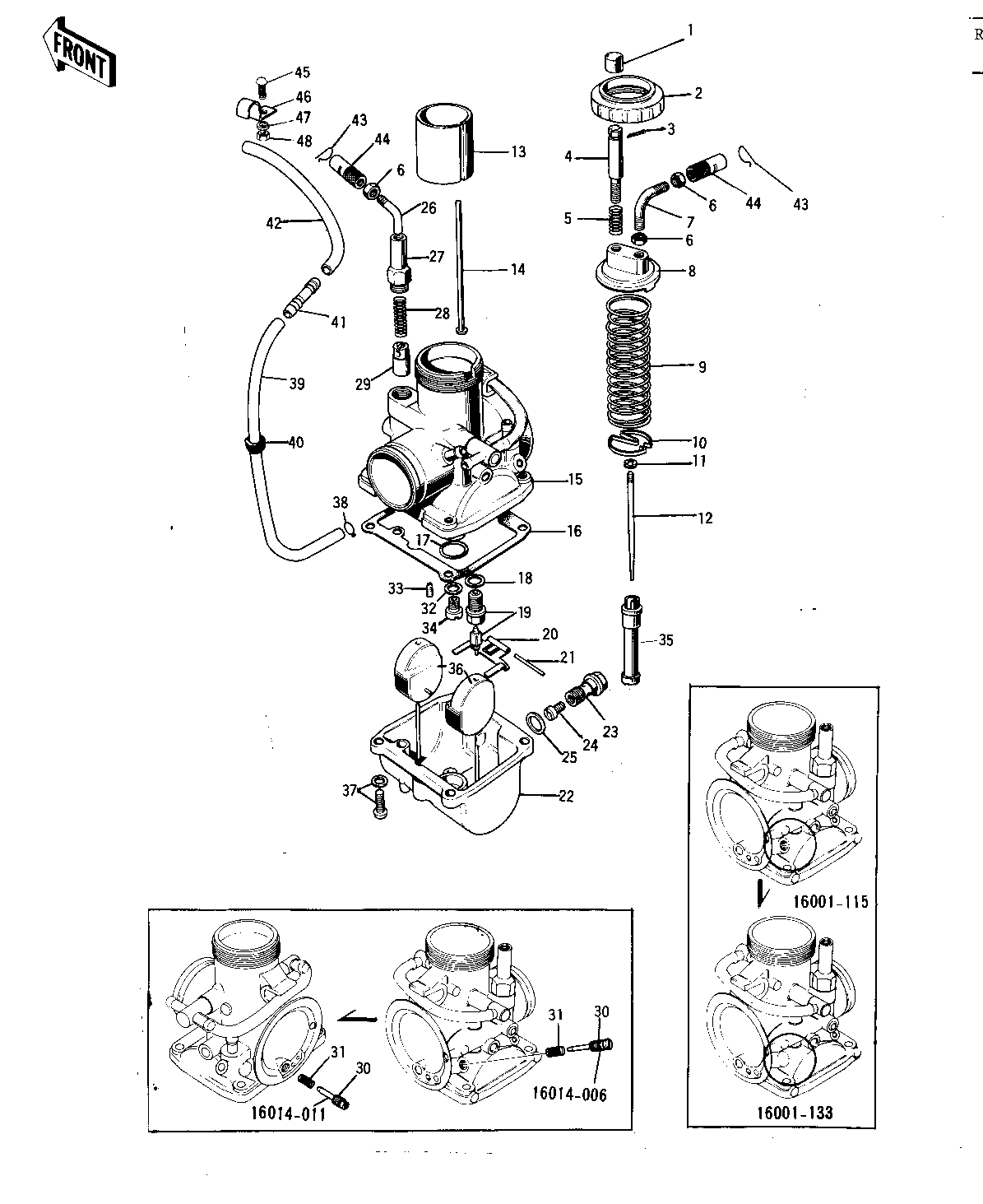

ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
CARBURETOR ASSY | 1~37 | 16001-133 | 1 | VM32SC | |
CAP THROTTLE ADJUSTER | 1 | 16037-002 | 1 | ||
CAP-MIXING CHAMBER | 2 | 16004-015 | 1 | ||
PIN COTTER 1.2X10 | 3 | 550D1210 | 1 | ||
SCREW-THROTTLE STOP | 4 | 16021-009 | 1 | ||
SPRING THR STOP SCREW | 5 | 16022-005 | 1 | ||
NUT CABLE ADJUST LOCK | 6 | 16003-004 | 3 | ||
CABLE GUIDE | 7 | 16077-001 | 1 | ||
TOP-MIXING CHAMBER | 8 | 16005-022 | 1 | ||
SPRING-THROTTLE VALVE | 9 | 16006-016 | 1 | ||
SPRING SEAT-THRTL VLV | 10 | 16007-014 | 1 | ||
CIRCLIP | 11 | 16008-010 | 1 | ||
JET NEEDLE F5L-11 | 12 | 16009-035 | 1 | ||
JET NEEDLE 5EJ8 | 12 | 16009-038 | (1 | ||
JET NEEDLE,5EJ11 | 12 | 16009-045 | 1 | E/NO. 07269 | |
VALVE-THROTTLE | 13 | 16025-033 | 1 | ||
VALVE-THROTTLE,CA1.0 | 13 | 16025-040 | 1 | E/NO. 07269 | |
ROD-THROTTLE VLV STOP | 14 | 16024-008 | 1 | ||
GASKET-FLOAT CHAMBER | 16 | 16019-015 | 1 | ||
'V' RING | 17 | 92055-042 | 1 | ||
WASHER FLOAT VLV SEAT | 18 | 16029-004 | 1 | ||
FLOAT VALVE ASSY | 19 | 16030-013 | 1 | ||
FLOAT ARM | 20 | 16140-001 | 1 | ||
FLOAT PIN | 21 | 16032-005 | 1 | L=31 M/M | |
BOLT-BANJO | 23 | 92001-097 | 1 | ||
JET-MAIN NO 132.5R | 24 | 92063-103 | 1 | STD | |
GASKET-BANJO BOLT | 25 | 16034-005 | 1 | ||
CABLE GUIDE | 26 | 16077-005 | 1 | ||
CAP-STARTER PLUNGER | 27 | 16012-013 | 1 | ||
SPRING-PLUNGER | 28 | 16013-003 | 1 | ||
PLUNGER-ENRICHNER | 29 | 16016-002 | 1 | ||
SCREW | 30 | 16014-006 | 1 | ||
SCREW-PILOT AIR ADJST | 30 | 16014-011 | 1 | E/NO. 07269 | |
SPRING-THR STOP SCREW | 31 | 16022-007 | 1 | ||
WASHER MAIN JET | 32 | 16034-001 | 1 | ||
JET-PILOT NO 35 | 33 | 92064-023 | 1 | ||
PILOT JET,#12.5 | 33 | 92064-033 | 1 | E/NO. 07269 | |
MAIN JET NO 2.4R | 34 | 92063-102 | 1 | ||
NEEDLE JET 0-8 | 35 | 16017-042 | 1 | ||
FLOAT | 36 | 16031-1062 | (2 | ||
FLOAT | 36 | 16031-1062 | 2 | ||
SCREW-PAN-WS-CROS | 37 | 223B0414 | 4 | ||
CLAMP FUEL PIPE | 38 | 92037-010 | 1 | ||
PIPE | 39 | 92059-065 | 1 | ||
GROMMET PIPE | 40 | 92071-038 | 1 | ||
NIPPLE | 41 | 92005-003 | 1 | ||
PIPE OIL TANK | 42 | 92059-002 | 1 | ||
CIRCLIP | 43 | 92036-018 | 2 | ||
CABLE ADJUSTER | 44 | 16002-007 | 2 | ||
SCREW PAN HEAD 6X14 | 45 | 220B0614 | 1 | ||
CLAMP CABLE | 46 | 92037-020 | 1 | ||
WASHER SPRING 6MM | 47 | 461F0600 | 1 | ||
NUT 6MM | 48 | 311B0600 | 1 |
