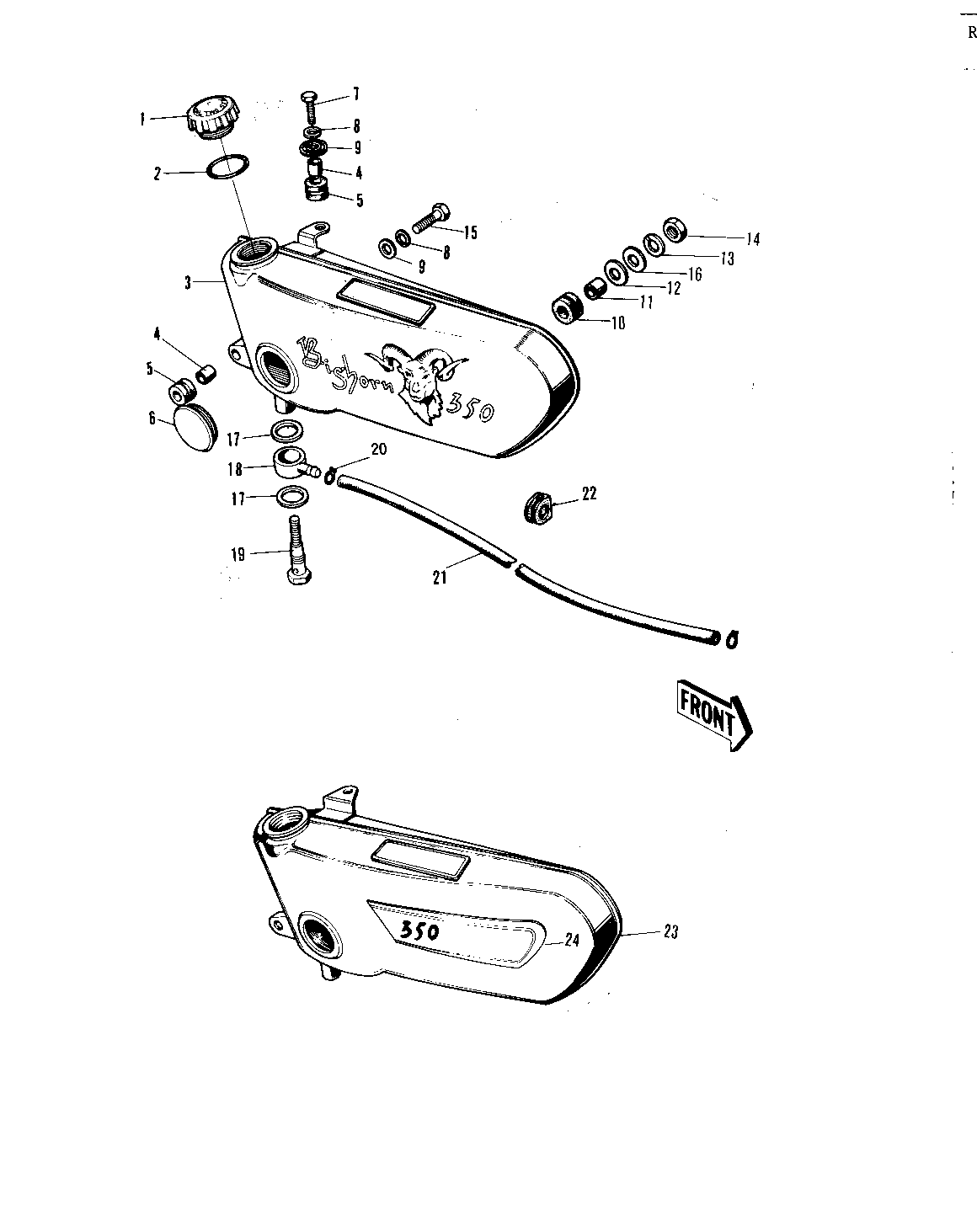

ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
CAP OIL TANK | 1 | 52003-009 | 1 | ||
"0" RING,36MM | 2 | 670B3036 | 1 | ||
TANK-OIL,RAWHIDE | 3 | 52001-020-46 | 1 | ||
COLLAR | 4 | 92027-103 | 2 | ||
DAMPER RUBBER | 5 | 92075-051 | 2 | ||
GAUGE OIL LEVEL | 6 | 52015-001 | 1 | ||
BOLT-UPSET | 7 | 112G0625 | 1 | ||
WASHER SPRING 6MM | 8 | 461F0600 | 2 | ||
WASHER 6.5X20X1.6T | 9 | 92022-125 | 2 | I.D.=6.50 | |
DAMPER RUBBER-MUFFLER | 10 | 18063-005 | 1 | ||
COLLAR | 11 | 92027-102 | 1 | ||
WASHER,8X26X2.3 | 12 | 92022-1564 | 1 | I.D=80 | |
WASHER SPRING 8MM | 13 | 461F0800 | 1 | ||
NUT,8MM | 14 | 311B0800 | 1 | ||
BOLT-UPSET | 15 | 112G0618 | 1 | ||
WASHER PLAIN 8MM | 16 | 411B0800 | 1 | I.D.=8.50 | |
GASKET,10,2X15X1.5T | 17 | 11009-1146 | 2 | ||
CONNECTOR BANJO | 18 | 92061-003 | 1 | ||
BOLT OIL TANK BANJO | 19 | 92060-001 | 1 | ||
CLAMP FUEL PIPE | 20 | 92037-010 | 2 | ||
PIPE | 21 | 92059-064 | 1 | L=580 M/M | |
GROMMET-OIL PIPE | 22 | 92071-041 | 1 | ||
TANK-OIL,L.GREEN | 23 | 52001-020-54 | 1 | ||
EMBLEM-OIL TANK | 24 | 56018-069 | 1 |
