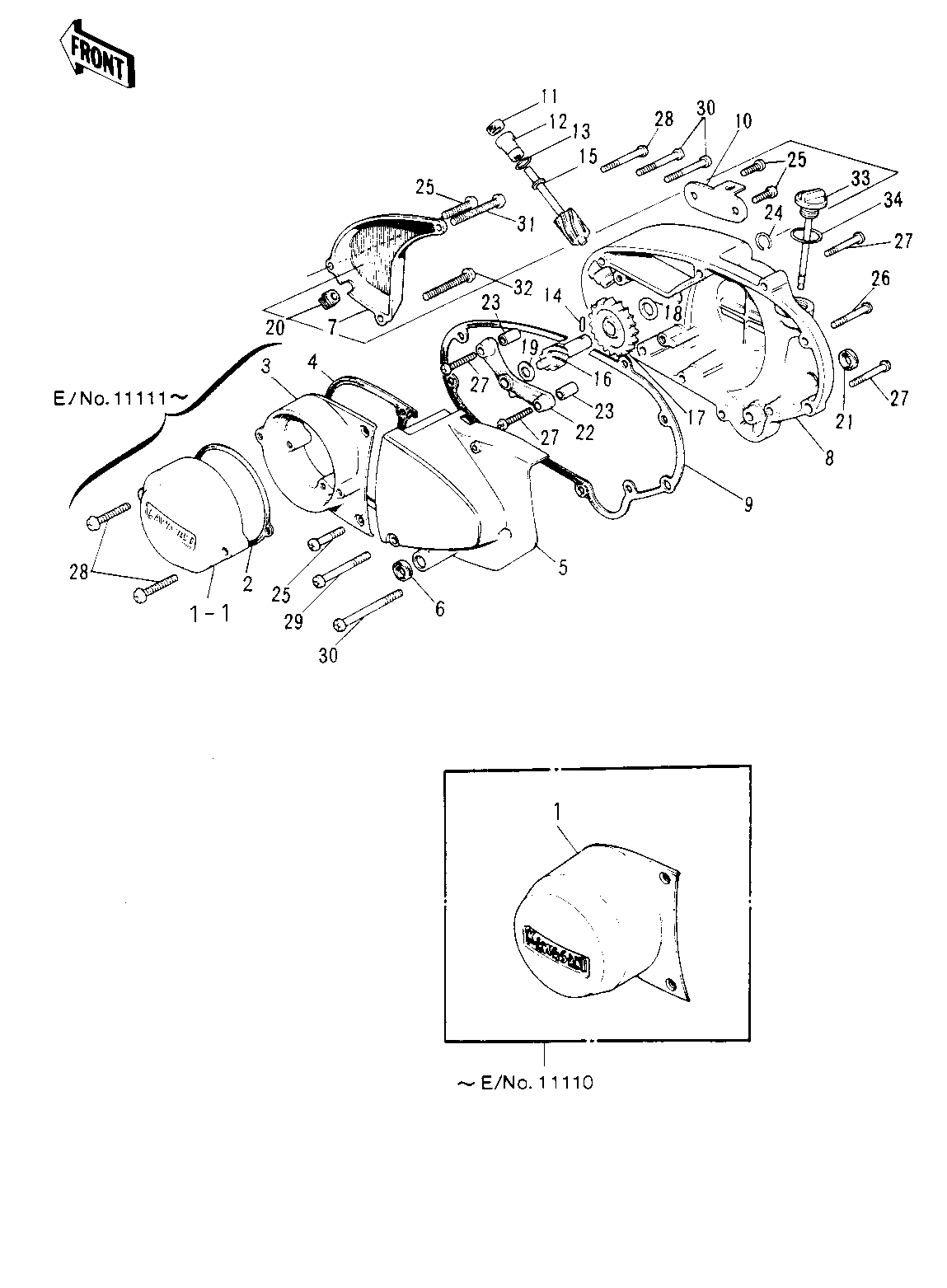

1973 Mach II - ENGINE COVERS

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
COVER-L.H ENGINE 1 14031-047 ~E/NO. 11110
CAP,BREAKER POINT,BUF 1-1 14027-016-80 E/NO. 11111~
GASKET-POINT CAP 2 14050-005
COVER,R.H ENGINE,BUFF 3 14031-086-80 E/NO. 11111~
COVER,R.H ENGINE,BUFF 3 14031-086-80 E/NO. 11111~
GASKET,L.H ENG COVER 4 14045-022
COVER,CHAIN CASE,BUFF 5 14026-022-80
COVER,CHAIN CASE,BUFF 5 14026-022-80
SEAL-OIL 6 92049-1249
COVER,OIL PUMP,BUFF 7 14030-030-80
COVER,OIL PUMP,BUFF 7 14030-030-80
COVER,R.H,ENG. CLEAR 8 14032-1018
COVER,R.H,ENG. CLEAR 8 14032-1018
COVER,R.H,ENG. CLEAR 8 14032-1018
GASKET-R.H ENGINE COV 9 14046-019
HOLDER 10 14044-006
OIL SEAL 11 92054-004
BUSH 12 92028-075
"0" RING 13 92055-025
PIN,DOWEL 14 92042-035
SHAFT-TACHOMETER GEAR 15 13226-005
GEAR-TACHOMETER 16 13224-008
GEAR-OIL PUMP 17 16085-017
WASHER THRUST 18 92026-025
WASHER THRUST 19 92026-026
GROMMET-R.H ENG COVER 20 14038-030
OIL SEAL SB16244 21 92049-002
HOLDER-TACHOMETER GR 22 14018-005
PIN-DOWEL 23 92042-007
CIRCLIP 24 92036-017
SCREW PAN HEAD 6X20 25 220B0620
SCREW PAN HEAD 6X25 26 220B0625
SCREW PAN HEAD 6X30 27 220B0630
SCREW PAN HEAD 6X35 28 220B0635
SCREW PAN HEAD 6X45 29 220B0645
SCREW PAN HEAD 6X55 30 220B0655
SCREW-PAN HEAD,6X90 31 220B0690
SCREW PAN HEAD 6X100 32 220B06100
PLUG-OIL FILLER 33 16115-017
"0" RING,20MM 34 670B2020
