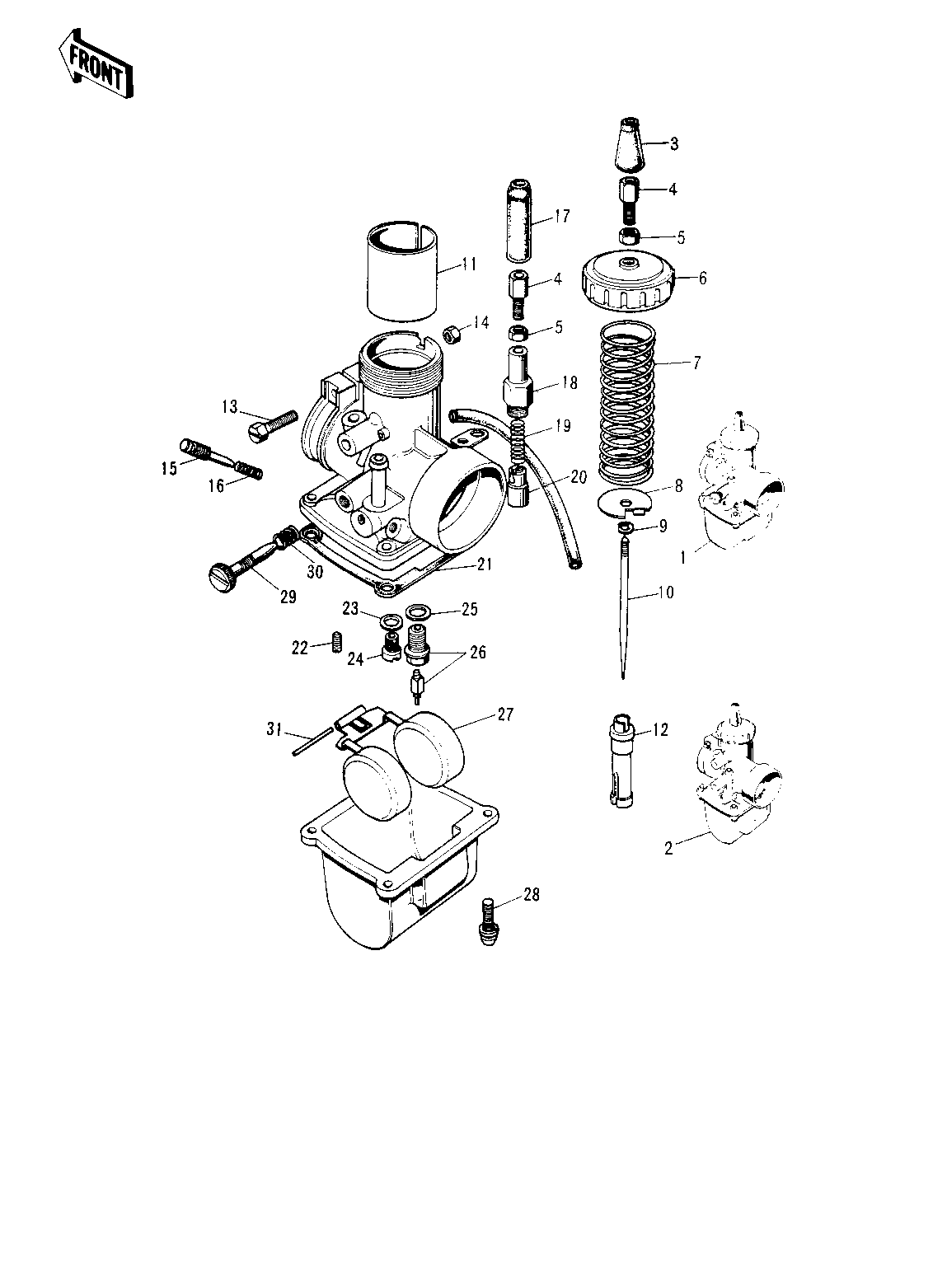

1973 Mach II - CARBURETORS

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CARBURETOR ASY,R.HDCN 1 16001-146
CARBURETOR ASSY,L.H 2 16001-145
CAP,CARBURETOR 3 16036-007
ADJUSTER,CABLE 4 16002-017
NUT CABLE ADJUST LOCK 5 16003-004
CAP,MIXING CHAMBER 6 16004-025
SPRING THROTTLE VALVE 7 16006-014
SPRING SEAT,THRTL VL 8 16007-023
CIRCLIP 9 16008-010
JET NEEDLE 4EJ4 10 16009-047
VALVE-THROTTLE,CA2.0 11 16025-043
VALVE-THROTTLE,CA2.0 11 16025-044
NEEDLE JET O-2 12 16017-054
SCREW CLAMP 13 16010-004
NUT 6MM 14 311B0600
SCREW 15 16014-006
SPRING-THR STOP SCREW 16 16022-007
CAP CABLE ADJUST RUBB 17 16036-005
CAP STARTER PLUNGER 18 16012-008
SPRING-PLUNGER 19 16013-003
PLUNGER-ENRICHNER 20 16016-002
GASKET FLOAT CHAMBER 21 16019-013
JET-PILOT NO 25 22 92064-032
WASHER MAIN JET 23 16034-001
MAIN JET NO 85R 24 92063-093
MAIN JET,#77.5R 24 92063-1032 OPTION
MAIN JET, #A80 24 92063-1030 OPTION
MAIN JET NO 87.5R 24 92063-094 OPTION
MAIN JET,#A90R 24 92063-1029 OPTION
WASHER FLOAT VLV SEAT 25 16029-004
FLOAT VALVE ASSY 26 16030-005
FLOAT 27 16031-016
SCREW FLOAT CHAMBER 28 16033-009
SCREW-THROTTLE STOP 29 16021-013
SPRING THR STOP SCREW 30 16022-005
FLOAT PIN 31 16032-003
