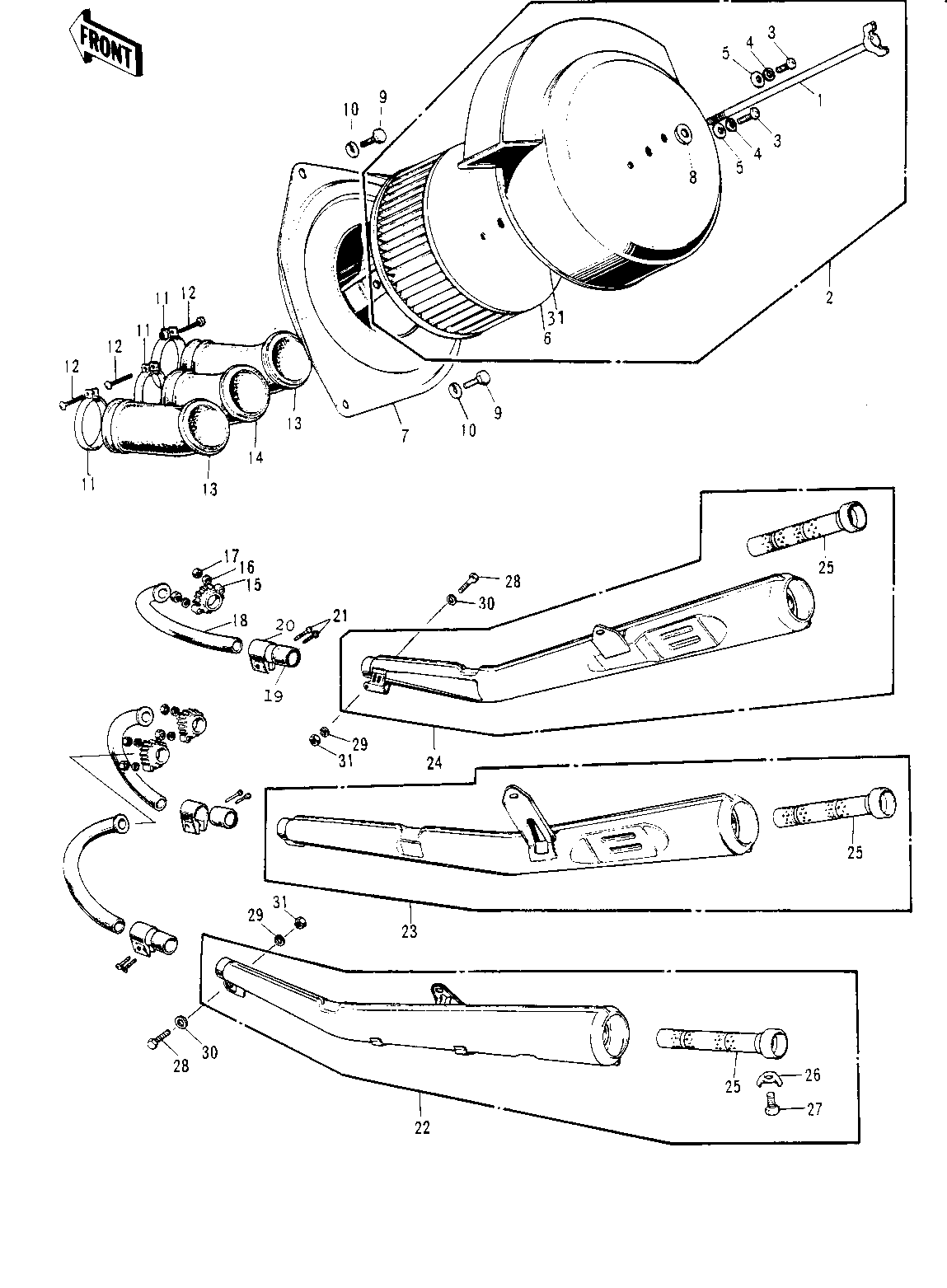

1973 Mach II - AIR CLEANER/MUFFLERS

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-AIR CLEANER FIT 1 92003-073
AIR CLEANER ASSY 2 11010-039
AIR CLEANER ASY,BLACK 2 11010-039-21
SCREW PAN HEAD 4X8 3 220B0408
WASHER SPRING 4MM 4 461F0400
WASHER PLAIN 4MM 5 410B0400
ELEMENT,AIR,CLNR 6 11013-026
BODY-AIR CLEANER 7 11011-013
WASHER-PLAIN 8 92022-021
BOLT,6X10 9 112G0610
WASHER SPRING 6MM 10 461F0600
CLAMP AIR CLEANER 11 92037-034
SCREW PAN HEAD 6X35 12 220B0635
PIPE-AIR INLT,R.H&L.H 13 11015-024
PIPE-AIR INLET,CENTER 14 11015-025
HOLDER-EXHAUST PIPE 15 18069-038
WASHER SPRING 8MM 16 461F0800
NUT,8MM 17 311B0800
PIPE-EXHAUST 18 18049-074
CONNECTOR MUFFLER 19 18043-008
HOLDER-MFLR CONECT,CR 20 18044-004-79
SCREW PAN HEAD 6X28 21 220B0628
MUFFLER ASSY-L.H 22 18001-036
MUFFLER ASSY-CENTER 23 18001-037
MUFFLER ASSY,R.H 24 18001-038
BAFFLE TUBE 25 18033-048
WASHER LOCK 6MM 26 92024-016
BOLT-UPSET,6X12 27 112G0612
BOLT,8X20 28 115G0820
WASHER SPRING 8MM 29 461F0800
WASHER PLAIN 8MM 30 411B0800
RUBBER SEAL,CLENR CAP 31 11024-001
