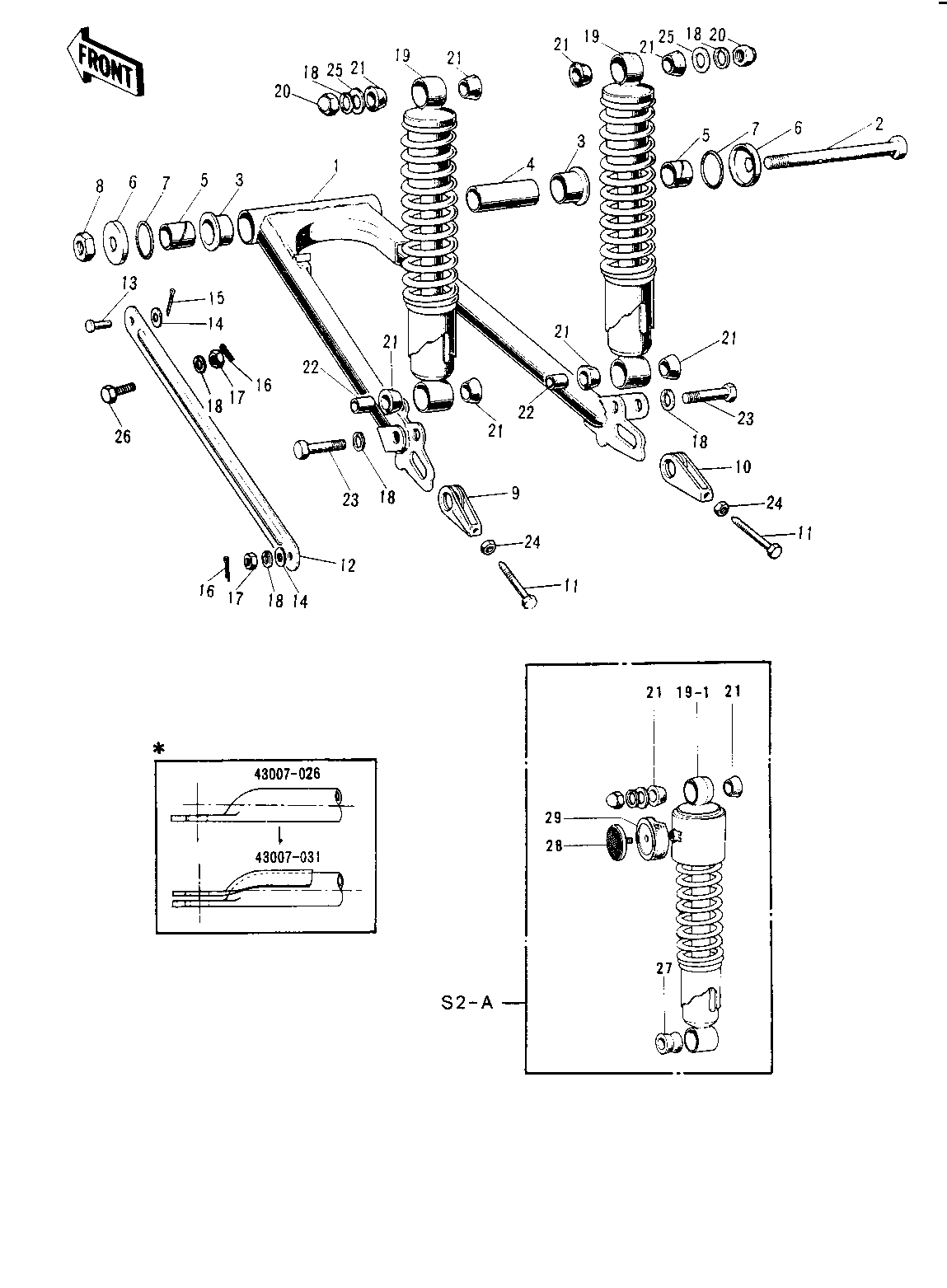

1973 Mach II - SWING ARM/SHOCK ABSORBERS

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
ARM-SWING 1 33001-039
SHAFT-SWING ARM PIVOT 2 33032-037
BUSHING-SWING ARM 3 33033-009
SLEEVE-SWING ARM,LONG 4 33034-012
SLEEVE-SWING ARM,SHRT 5 33034-013
CAP-SWING ARM 6 33035-004
"0" RING,30MM 7 671B2530
NUT-LOCK,14MM 8 92019-011
ADJUSTER CHAIN L.H 9 33040-032
ADJUSTER CHAIN R.H 10 33040-033
BOLT,8X50 11 92001-1399
TORQUE LINK-RR BRAKE 12 43007-031 *
TORQUE LINK-RR BRAKE * 43007-031
PIN REAR TORQUE LINK 13 43009-001 USE FOR 43007-026
WASHER PLAIN 10MM 14 410B1000
PIN COTTER 2.5X20 15 550D2520 USE FOR 43007-026
PIN,SNAP 16 554A0800
PIN,SNAP 16 554A0800
NUT,10MM 17 314B1000
WASHER SPRING 10MM 18 461F1000
SHOCK ABSBR RR 19 45014-062 S2
SHOCK ABSBR RR 19-1 45014-078 S2-A
NUT SHOCK ABSORBER 20 92020-003
BUSH SHCK ABS RUBBER 21 45017-001 S2
BUSH SHCK ABS RUBBER 21 45017-001 S2-A
BUSH SHCK ABS PVT SFT 22 45016-003
BOLT HEX HEAD 10X35 23 113N1035
NUT 8MM 24 312B0800
WASHER-PL-10.5X26X2.3 25 92022-044
BOLT 26 92003-096 USE FOR 43007-031
BUSHING,SHCK ABS RUB 27 45017-018 S2-A
REFLECTOR,REFLEX,REAR 28 28001-030 S2-A
REFLECTOR,REFLEX,REAR 28 28001-030 S2-A
DAMPER RUBBER-REFLEX 29 28016-002 S2-A
