Parts Diagrams |

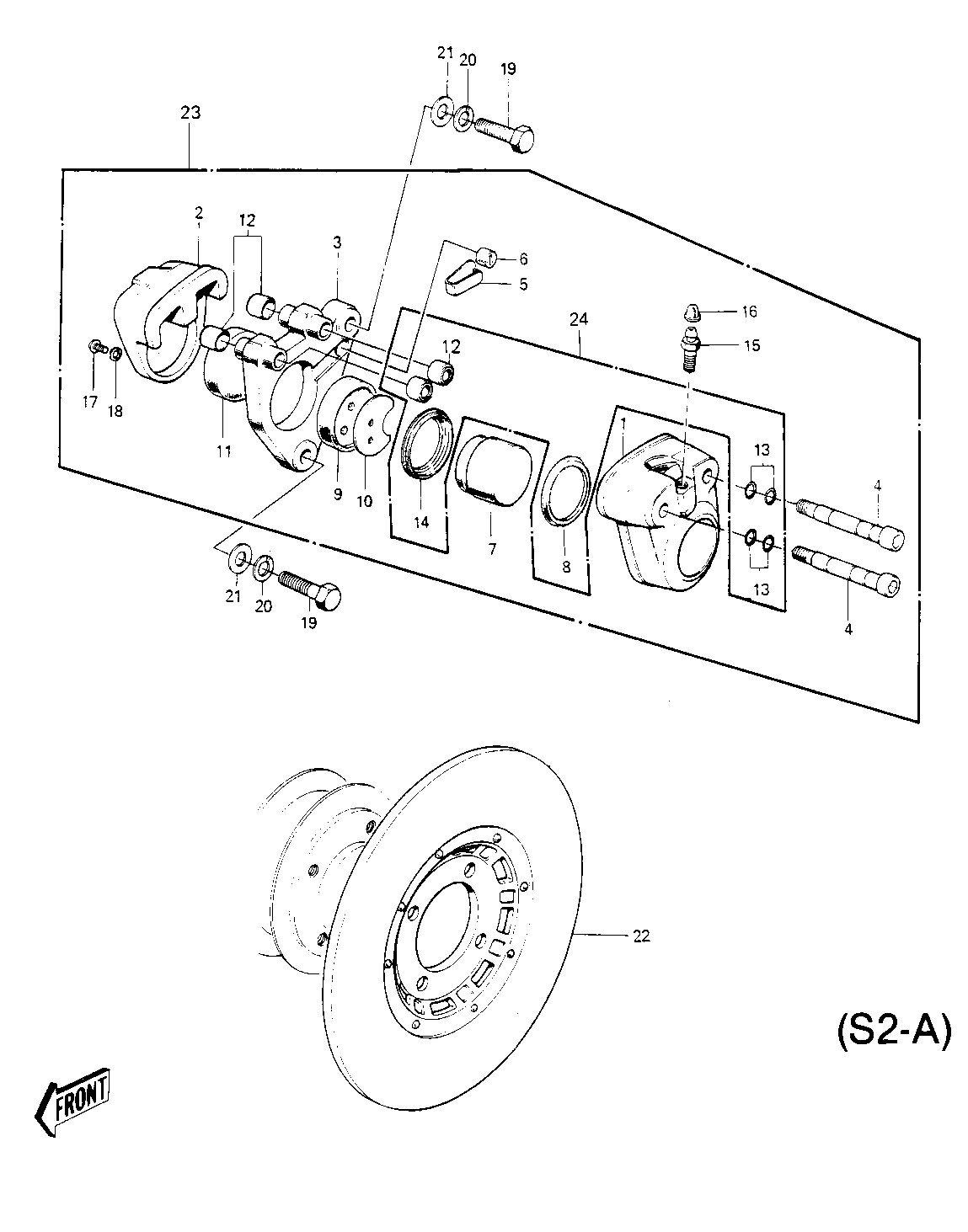

ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
CALIPER A | 1 | 43042-003 | |||
CALIPER B | 2 | 43043-002 | |||
HOLDER-CALIPER | 3 | 43044-003 | |||
SHAFT | 4 | 43045-002 | |||
STOPPER-PAD A | 5 | 43046-001 | |||
BUSHING-RUBBER | 6 | 43047-001 | |||
PISTON-CALIPER | 7 | 43048-001 | |||
RING-PISTON | 8 | 43049-001 | |||
PAD A | 9 | 43082-001 | |||
PAD A | 9 | 43082-001 | |||
SHIM | 10 | 43076-001 | |||
PAD B | 11 | 43051-001 | |||
DUST SEAL-SHAFT | 12 | 43052-002 | |||
"0" RING,SHAFT | 13 | 43053-001 | |||
DUST SEAL-PISTON | 14 | 43054-002 | |||
BLEEDER | 15 | 43056-002 | |||
BLEEDER SET | 16 | 43085-001 | |||
SCREW,8X12 | 17 | 220B0812 | |||
WASHER SPRING 6MM | 18 | 461F0600 | |||
BOLT | 19 | 92007-032 | |||
WASHER SPRING 10MM | 20 | 461F1000 | |||
WASHER PLAIN 10MM | 21 | 410B1000 | |||
DISC PLATE,FRONT BRAK | 22 | 41080-006 | |||
CALIPER ASSY | 23 | 43041-003 | |||
REPAIR SET,CALLIPER | 24 | 43073-003 |
