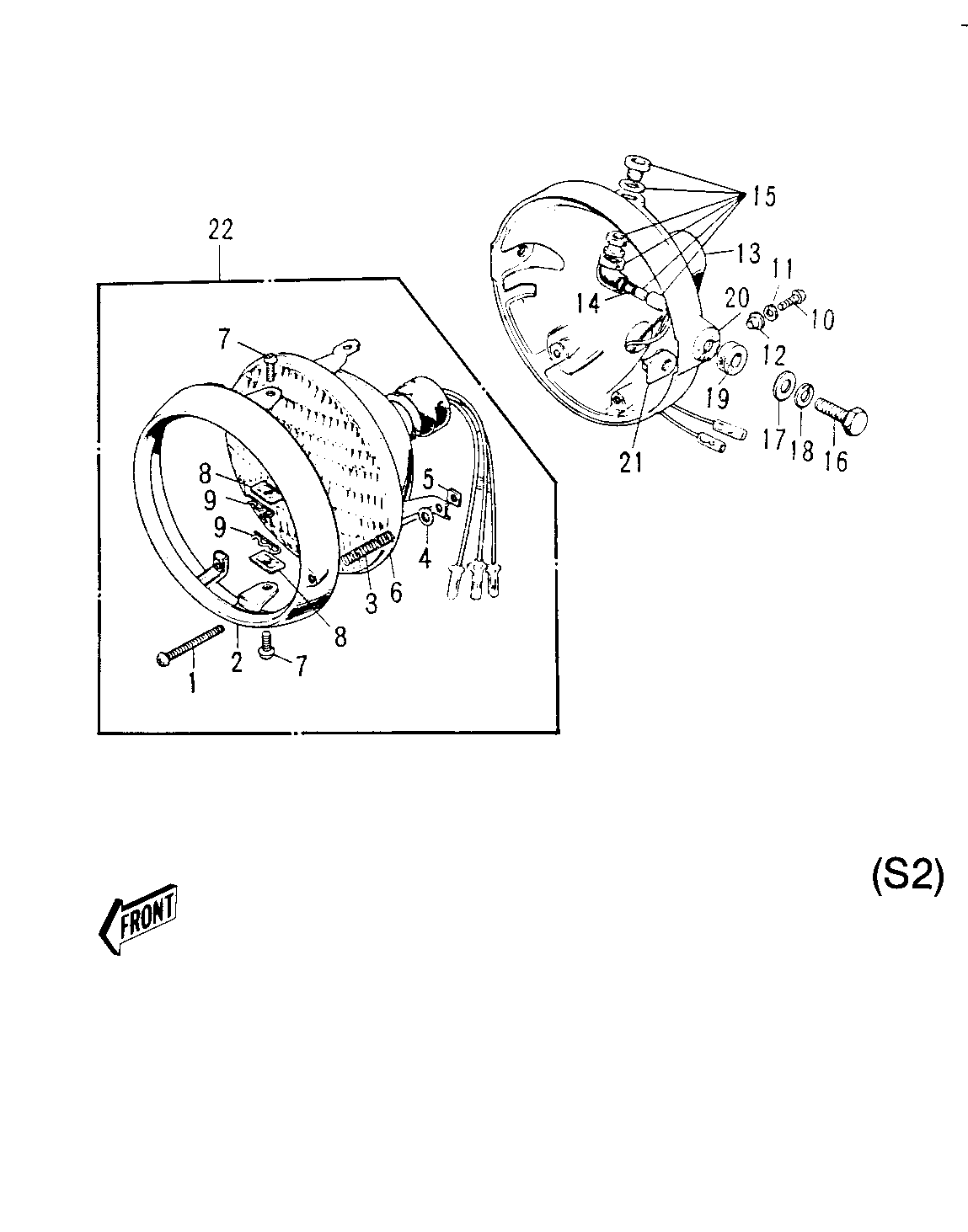

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
SCREW FORCUS ADJUST | 1 | 23019-021 | |||
RIM-HEAD LAMP | 2 | 23006-025 | |||
SPRING FOCUS ADJUST | 3 | 23014-005 | |||
WASHER | 4 | 23021-004 | |||
NUT | 5 | 23020-016 | |||
SEALED BEAM UNIT | 6 | 23007-030 | |||
SCREW LENS UNIT FITT | 7 | 23019-018 | |||
NUT LENS UNIT FITTING | 8 | 23020-009 | |||
PIN LENS UNIT FITTING | 9 | 23022-001 | |||
SCREW-PAN HEAD,5MM | 10 | 92011-024 | |||
WASHER SPRING 5MM | 11 | 461F0500 | |||
WASHER | 12 | 23021-010 | |||
BODY-HEAD LAMP,BLACK | 13 | 23005-032-10 | |||
BULB 12V 1.5W | 14 | 92069-017 | |||
LAMP ASSY-PILOT | 15 | 23016-006 | |||
BOLT,10MM | 16 | 92007-024 | |||
WASHER PLAIN 10MM | 17 | 411B1000 | |||
WASHER SPRING 10MM | 18 | 461F1000 | |||
DAMPER RUBBER | 19 | 92075-079 | |||
WASHER-LOCK | 20 | 23021-011 | |||
NUT | 21 | 23020-017 | |||
LAMP UNIT-HEAD | 22 | 23003-014 |
SCREW FORCUS ADJUST | |
REF # | 1 |
---|---|
PART NUMBER | |
QUANTITY | |
DESTINATION | |
REMARKS |
RIM-HEAD LAMP | |
REF # | 2 |
---|---|
PART NUMBER | |
QUANTITY | |
DESTINATION | |
REMARKS |
SPRING FOCUS ADJUST | |
REF # | 3 |
---|---|
PART NUMBER | |
QUANTITY | |
DESTINATION | |
REMARKS |
WASHER | |
REF # | 4 |
---|---|
PART NUMBER | |
QUANTITY | |
DESTINATION | |
REMARKS |
NUT | |
REF # | 5 |
---|---|
PART NUMBER | |
QUANTITY | |
DESTINATION | |
REMARKS |
SEALED BEAM UNIT | |
REF # | 6 |
---|---|
PART NUMBER | |
QUANTITY | |
DESTINATION | |
REMARKS |
SCREW LENS UNIT FITT | |
REF # | 7 |
---|---|
PART NUMBER | |
QUANTITY | |
DESTINATION | |
REMARKS |
NUT LENS UNIT FITTING | |
REF # | 8 |
---|---|
PART NUMBER | |
QUANTITY | |
DESTINATION | |
REMARKS |
PIN LENS UNIT FITTING | |
REF # | 9 |
---|---|
PART NUMBER | |
QUANTITY | |
DESTINATION | |
REMARKS |
SCREW-PAN HEAD,5MM | |
REF # | 10 |
---|---|
PART NUMBER | |
QUANTITY | |
DESTINATION | |
REMARKS |
WASHER SPRING 5MM | |
REF # | 11 |
---|---|
PART NUMBER | |
QUANTITY | |
DESTINATION | |
REMARKS |
WASHER | |
REF # | 12 |
---|---|
PART NUMBER | |
QUANTITY | |
DESTINATION | |
REMARKS |
BODY-HEAD LAMP,BLACK | |
REF # | 13 |
---|---|
PART NUMBER | |
QUANTITY | |
DESTINATION | |
REMARKS |
BULB 12V 1.5W | |
REF # | 14 |
---|---|
PART NUMBER | |
QUANTITY | |
DESTINATION | |
REMARKS |
LAMP ASSY-PILOT | |
REF # | 15 |
---|---|
PART NUMBER | |
QUANTITY | |
DESTINATION | |
REMARKS |
BOLT,10MM | |
REF # | 16 |
---|---|
PART NUMBER | |
QUANTITY | |
DESTINATION | |
REMARKS |
WASHER PLAIN 10MM | |
REF # | 17 |
---|---|
PART NUMBER | |
QUANTITY | |
DESTINATION | |
REMARKS |
WASHER SPRING 10MM | |
REF # | 18 |
---|---|
PART NUMBER | |
QUANTITY | |
DESTINATION | |
REMARKS |
DAMPER RUBBER | |
REF # | 19 |
---|---|
PART NUMBER | |
QUANTITY | |
DESTINATION | |
REMARKS |
WASHER-LOCK | |
REF # | 20 |
---|---|
PART NUMBER | |
QUANTITY | |
DESTINATION | |
REMARKS |
NUT | |
REF # | 21 |
---|---|
PART NUMBER | |
QUANTITY | |
DESTINATION | |
REMARKS |
LAMP UNIT-HEAD | |
REF # | 22 |
---|---|
PART NUMBER | |
QUANTITY | |
DESTINATION | |
REMARKS |
