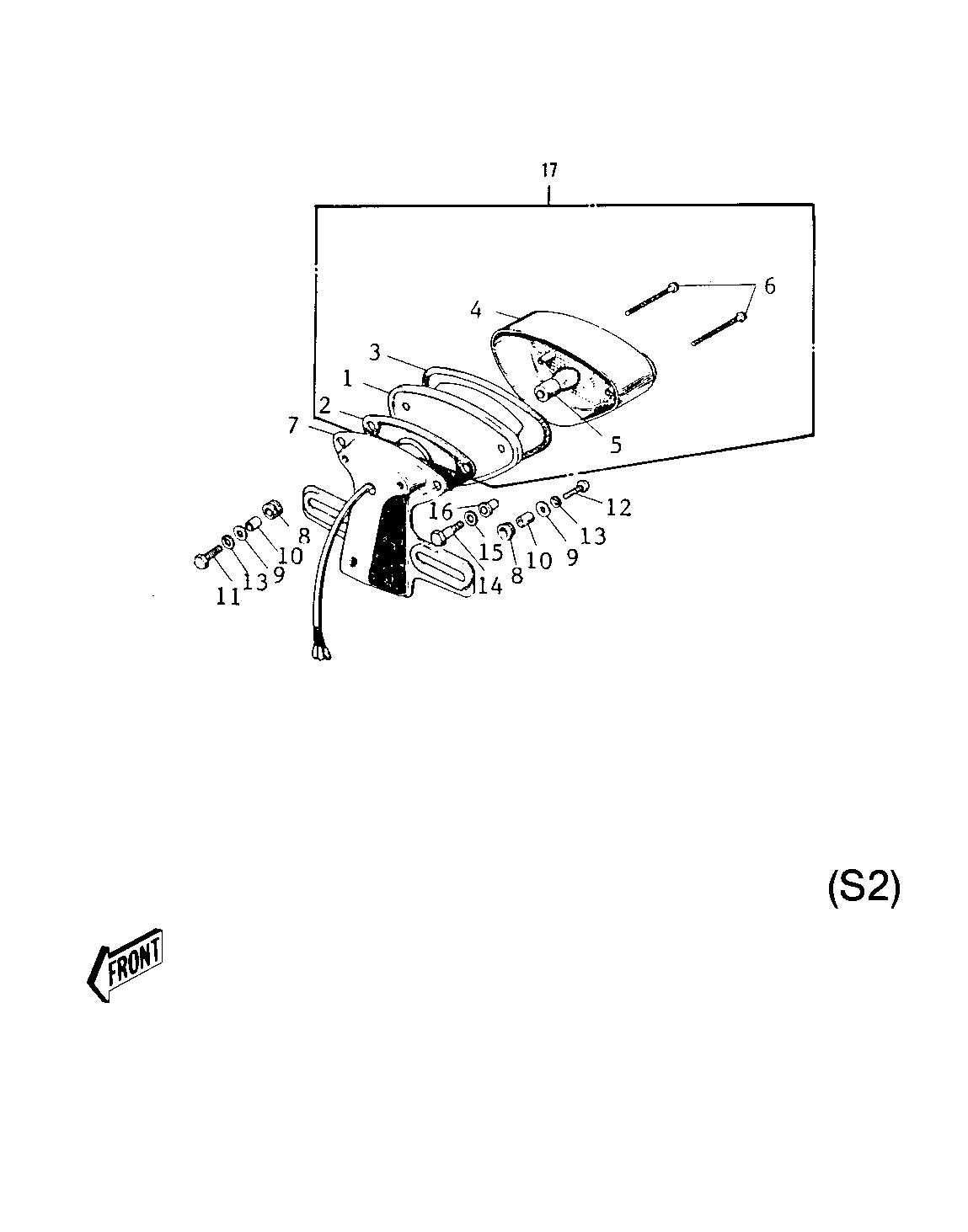

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CASE-TAIL LAMP 1 23027-029
GASKET-TAIL LAMP CASE 2 23028-015
GASKET-TAIL LAMP LENS 3 23028-016
LENS-TAIL LAMP 4 23026-022
BULB,12V 32/3CP 5 92069-059
SCREW 6 220R0455
BKT-LICENSE PLT,BLACK 7 23036-012-21
DAMPER RUBBER 8 92075-112
WASHER 6.5X20X1.6T 9 92022-125
COLLAR 6.8X10X10.5 10 92027-120
BOLT-UPSET,6X20 11 112G0620
SCREW PAN HEAD 6X20 12 220B0620
WASHER SPRING 6MM 13 461F0600
BOLT 14 92001-105
WASHER,8.5X20X1.6 15 92022-1561
DAMPER RUBBER 16 92075-091
LAMP ASSY-TAIL 17 23025-044
