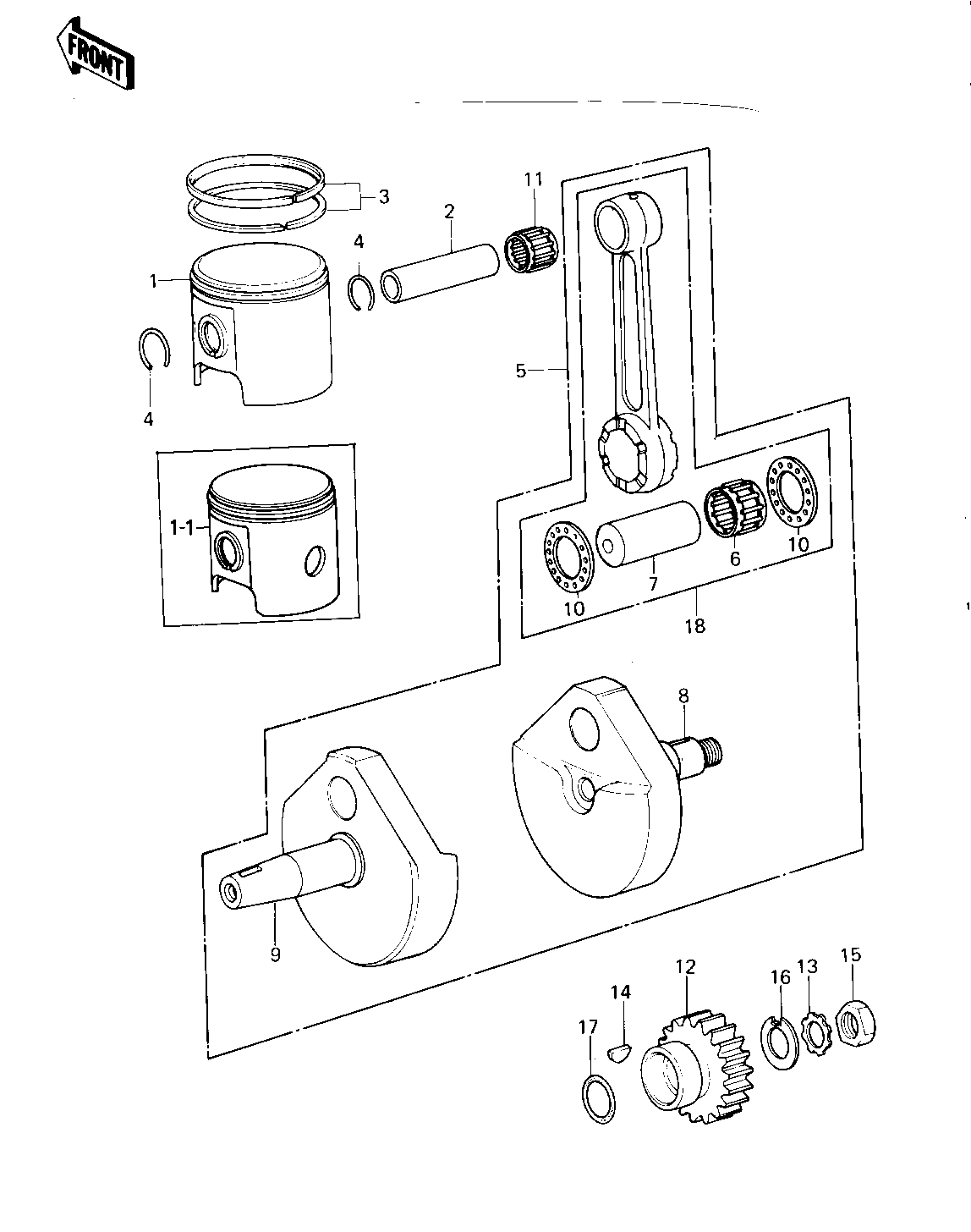

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
PISTON 1 13001-1038 1
PIN-PISTON 2 13002-031 1
RING SET,PISTON 3 13008-5017 1
CIRCLIP PISTON PIN 4 92036-008 2
CRANKSHAFT ASSY 5 13031-1023 1
BEARING N,KT263322EGS 6 13034-1012 1 KT263322 EGS01-B2
PIN,CRANK,12X26X62 7 13035-1003 1
CRANKSHAFT,R.H. 8 13037-1035 1
CRANKSHAFT,L.H. 9 13037-1037 1
WASHER,CONROD SIDE 10 92026-093 2
BEARING-SMALL END,KTV 11 13033-1055 1 71KTV067
GEAR,PRIMARY,26T 12 13097-1019 1
WASHER,LOCK,18M/M 13 464H1800 1
WOODRUFF KEY 14 510A5100 1
NUT 18MM 15 92015-019 1
WASHER LOCK 18MM 16 92024-015 1
"0" RING,30MM 17 92055-1047 1
CONNECTING ROD ASSY 18 13044-5011 1
