Parts Diagrams |

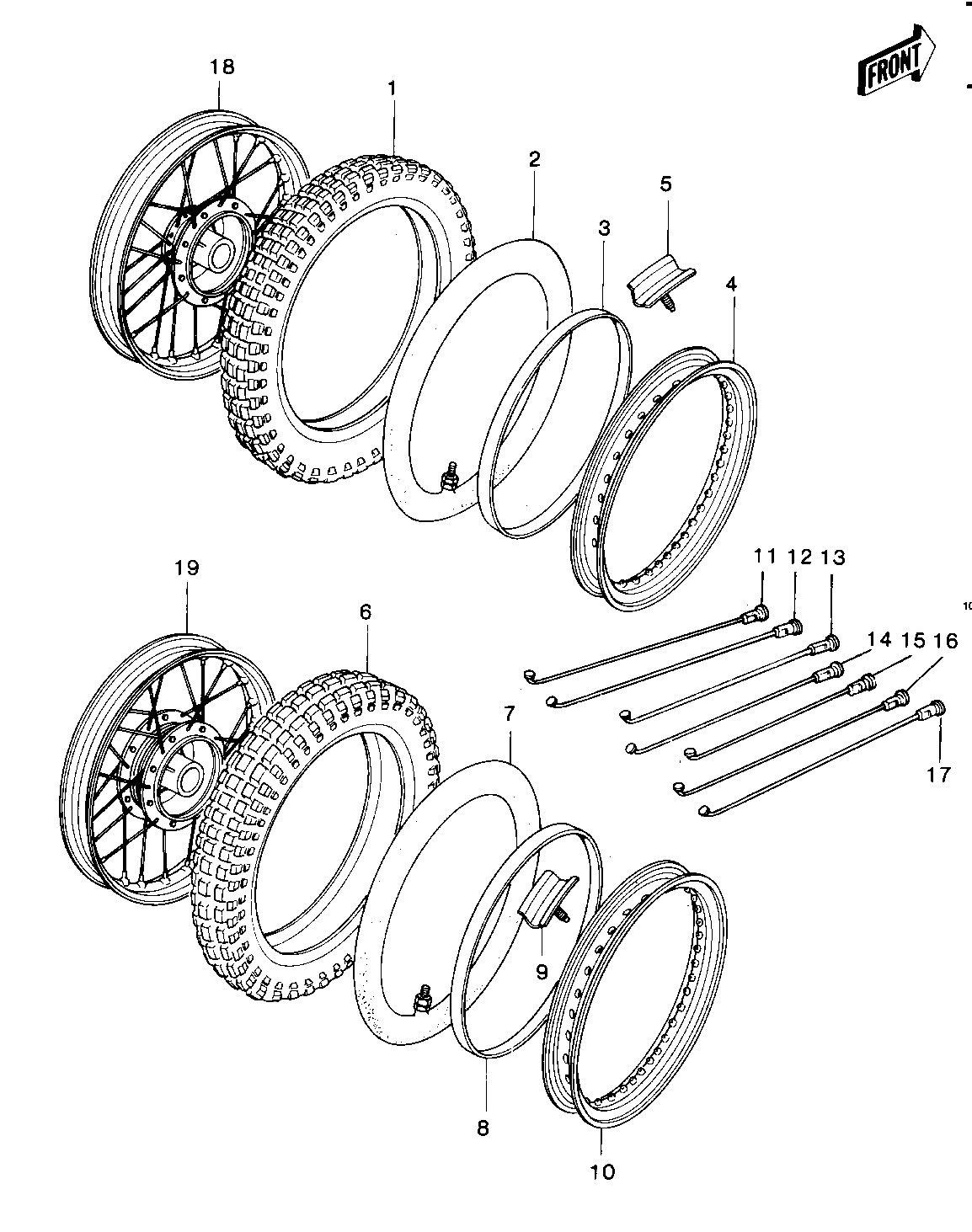

| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| TIRE 300-21 K190 F | 1 | 41002-4006 | 1 | DUNLOP SPORTS K190 | |
| TUBE,2.75/3.70-21 | 2 | 41022-1021 | 1 | ||
| BAND,RIM,3.00-21 | 3 | 41023-1001 | 1 | ||
| RIM,FRONT,1.60X21 | 4 | 41025-4001 | 1 | ||
| PROTECTOR,BEAD 1.60A | 5 | 41024-010 | 1 | ||
| TIRE 450-18 K190 R | 6 | 41002-4007 | 1 | DUNLOP SPORTS K190 | |
| TUBE 450/475/550-18 | 7 | 41022-1015 | 1 | ||
| BAND,RIM,4.00/5.10-18 | 8 | 41023-1006 | 1 | ||
| STOPPER,RIM,2.50 | 9 | 41024-4001 | 1 | ||
| RIM,REAR,2.50X18 | 10 | 41025-4002 | 1 | ||
| SPOKE-ASY,FR INNER LH | 11 | 41027-5013 | 9 | 195.5 MM X 102 | |
| SPOKE-ASY,FR RH | 12 | 41027-5014 | 18 | 221.5 MM X 132 | |
| SPOKE-ASY,FR OUTER LH | 13 | 41028-5012 | 9 | 194.5 MM X 83 | |
| SPOKE-ASY,RR INNER LH | 14 | 41027-5015 | 9 | 176.5 MM X 126.5 | |
| SPOKE-ASY,RR INNER RH | 15 | 41027-5016 | 9 | 155.5 MM X 106.5 | |
| SPOKE-ASY,RR OUTER LH | 16 | 41028-5013 | 9 | 173.5 MM X 134 | |
| SPOKE-ASY,RR OUTER RH | 17 | 41028-5014 | 9 | 156.5 MM X 72 | |
| WHEEL ASS'Y,FRONT | 18 | 41073-4001 | 1 | ||
| WHEEL ASS'Y,REAR | 19 | 41073-4002 | 1 |
| TIRE 300-21 K190 F | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | DUNLOP SPORTS K190 |
| TUBE,2.75/3.70-21 | |
| REF # | 2 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BAND,RIM,3.00-21 | |
| REF # | 3 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RIM,FRONT,1.60X21 | |
| REF # | 4 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PROTECTOR,BEAD 1.60A | |
| REF # | 5 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TIRE 450-18 K190 R | |
| REF # | 6 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | DUNLOP SPORTS K190 |
| TUBE 450/475/550-18 | |
| REF # | 7 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BAND,RIM,4.00/5.10-18 | |
| REF # | 8 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| STOPPER,RIM,2.50 | |
| REF # | 9 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RIM,REAR,2.50X18 | |
| REF # | 10 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPOKE-ASY,FR INNER LH | |
| REF # | 11 |
|---|---|
| PART NUMBER | |
| QUANTITY | 9 |
| DESTINATION | |
| REMARKS | 195.5 MM X 102 |
| SPOKE-ASY,FR RH | |
| REF # | 12 |
|---|---|
| PART NUMBER | |
| QUANTITY | 18 |
| DESTINATION | |
| REMARKS | 221.5 MM X 132 |
| SPOKE-ASY,FR OUTER LH | |
| REF # | 13 |
|---|---|
| PART NUMBER | |
| QUANTITY | 9 |
| DESTINATION | |
| REMARKS | 194.5 MM X 83 |
| SPOKE-ASY,RR INNER LH | |
| REF # | 14 |
|---|---|
| PART NUMBER | |
| QUANTITY | 9 |
| DESTINATION | |
| REMARKS | 176.5 MM X 126.5 |
| SPOKE-ASY,RR INNER RH | |
| REF # | 15 |
|---|---|
| PART NUMBER | |
| QUANTITY | 9 |
| DESTINATION | |
| REMARKS | 155.5 MM X 106.5 |
| SPOKE-ASY,RR OUTER LH | |
| REF # | 16 |
|---|---|
| PART NUMBER | |
| QUANTITY | 9 |
| DESTINATION | |
| REMARKS | 173.5 MM X 134 |
| SPOKE-ASY,RR OUTER RH | |
| REF # | 17 |
|---|---|
| PART NUMBER | |
| QUANTITY | 9 |
| DESTINATION | |
| REMARKS | 156.5 MM X 72 |
| WHEEL ASS'Y,FRONT | |
| REF # | 18 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WHEEL ASS'Y,REAR | |
| REF # | 19 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
