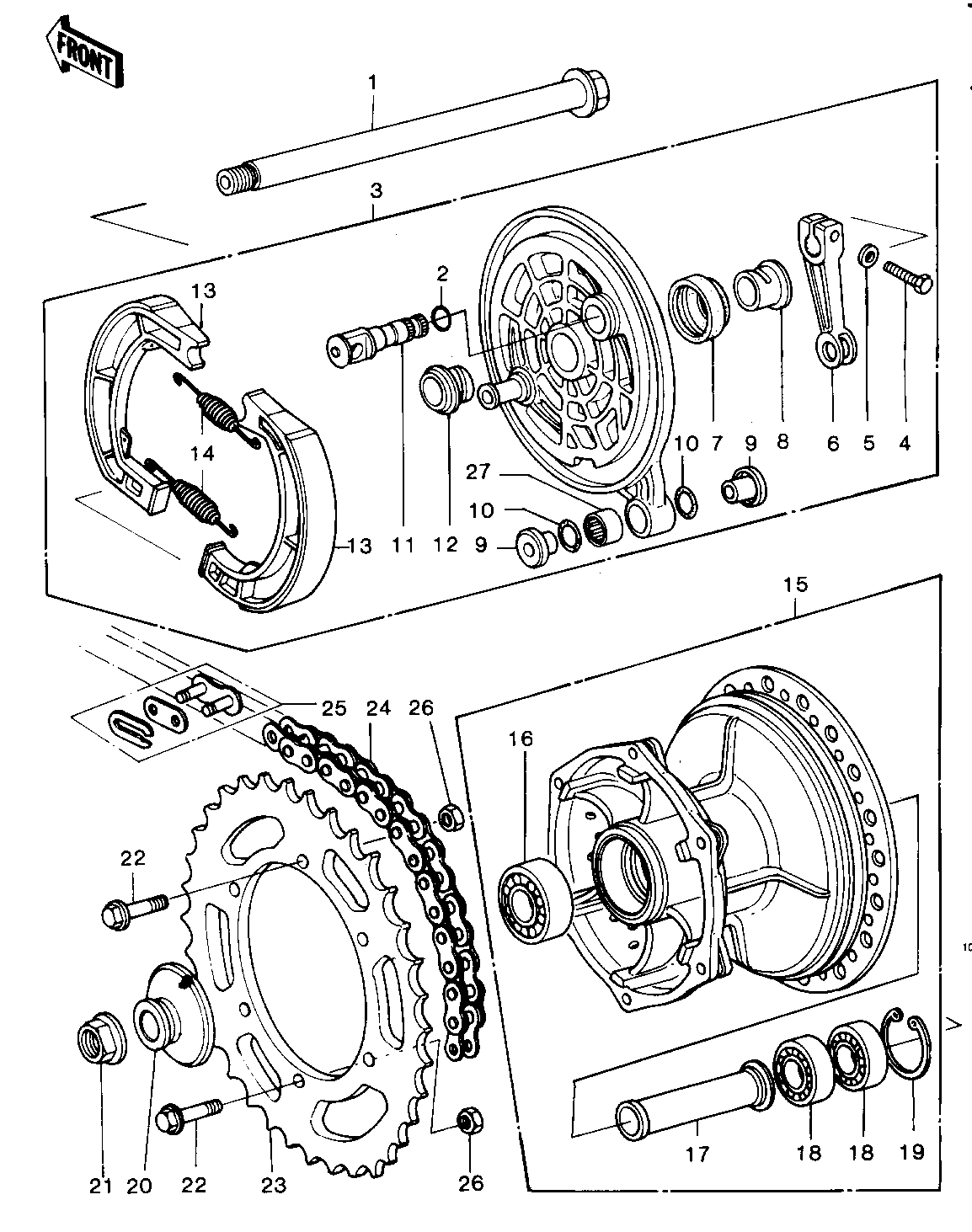

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| AXLE,REAR | 1 | 41068-4002 | 1 | ||
| "O" RING,15MM | 2 | 670B2015 | 1 | ||
| PANEL-ASY,RR BRK | 3 | 41035-4001 | 1 | ||
| BOLT-UPSET | 4 | 112G0622 | 1 | ||
| WASHER PLAIN 6MM | 5 | 410B0600 | 1 | ||
| LEVER,REAR BRAKE CAM | 6 | 41053-1004 | 1 | ||
| OIL SEAL | 7 | 92093-1004 | 1 | ||
| SLEEVE,REAR PANEL,R.H | 8 | 42036-1035 | 1 | ||
| COLLAR | 9 | 92027-1040 | 2 | ||
| "0" RING,11M/M | 10 | 670C2011 | 2 | ||
| CAM SHAFT,BRAKE | 11 | 41050-1002 | 1 | ||
| SLEEVE,REAR BRAKE | 12 | 42036-1009 | 1 | ||
| SHOE,BRAKE | 13 | 42019-011 | 2 | ||
| SPRING-BRAKE SHOE | 14 | 42020-004 | 2 | ||
| DRUM-ASSY,RR BRK | 15 | 41034-4002 | 1 | ||
| BEARING,BALL,6204UUC3 | 16 | 601B6204UU | 1 | ||
| COLLAR,REAR BRAKE DRM | 17 | 92027-4004 | 1 | ||
| BEARING-BALL,#6003UC3 | 18 | 601B6003U | 2 | ||
| CIRCLIP,35MM | 19 | 481J3500 | 1 | ||
| COLLAR,REAR AXLE,L.H | 20 | 92027-4005 | 1 | ||
| NUT,16M/M | 21 | 92015-1015 | 1 | ||
| BOLT,HEX HEAD,8X36 | 22 | 92001-1041 | 6 | ||
| SPROCKET,REAR,48T | 23 | 42041-4001 | 1 | STD. | |
| SPROCKET,REAR,46T | 23 | 42041-4002 | (1 | ||
| REAR SPROCKET,50T STD | 23 | 42041-1006 | (1 | ||
| DR CHAIN 520X110 | 24 | 92057-1004 | 1 | ||
| CHAIN JOINT 520 | 25 | 92058-1002 | 1 | ||
| NUT,LOCK,8MM | 26 | 92015-1124 | 6 | ||
| BEARING,NEEDLE | 27 | 92046-1009 | 1 |
