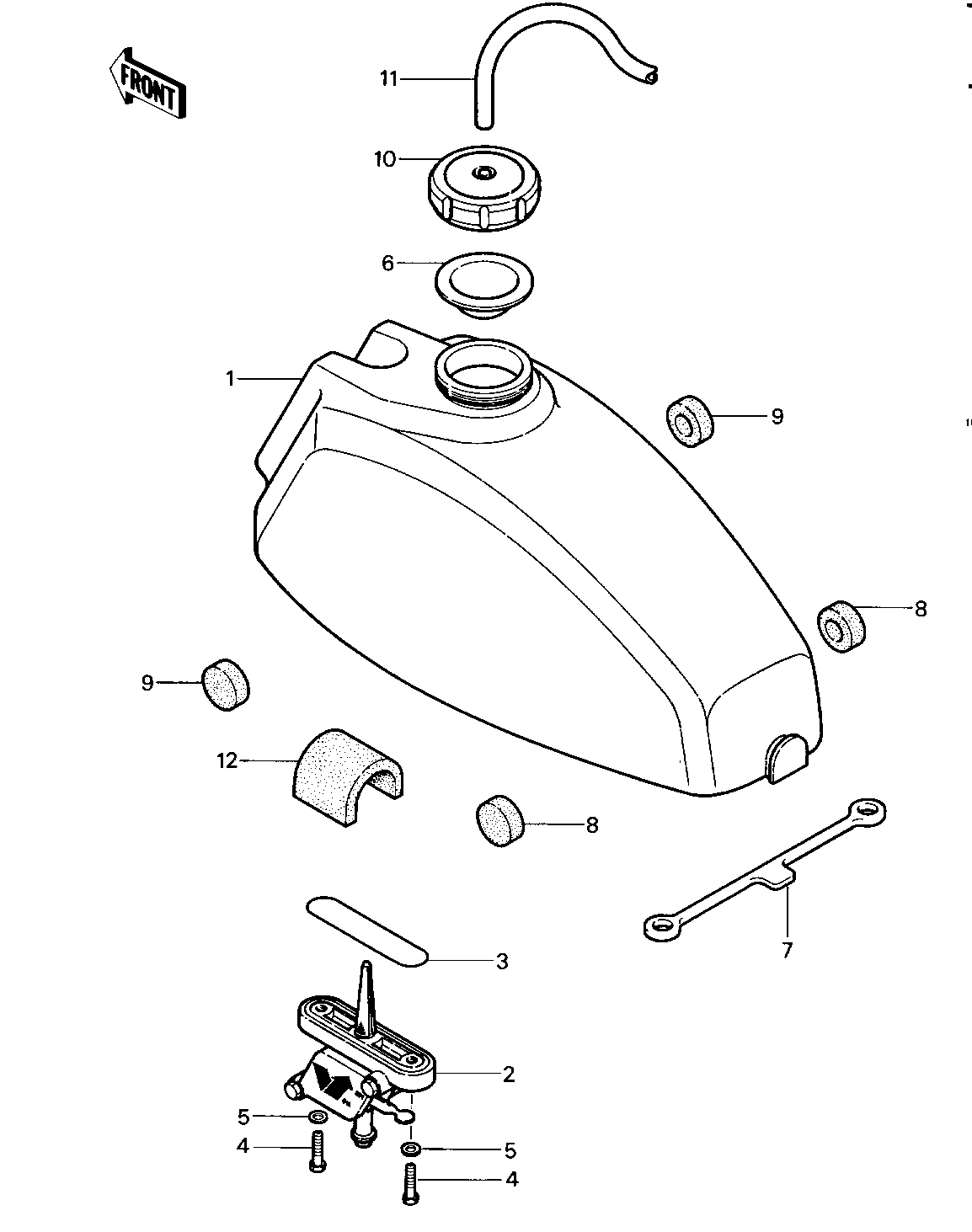

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
TANK-FUEL,GREEN 1 51001-4002-7F 1
COCK ASSY,FUEL 2 51023-4002 1
"O" RING 3 51039-003 1
BOLT,6X20,FUEL TAP 4 92001-1091 2
WASHER-PLAIN 5 92022-183 2
GASKET,FUEL TANK CAP 6 11009-4001 1
BAND,FUEL TANK 7 92072-042 1
DAMPER 8 92075-4003 2
DAMPER, FUEL TANK FR 9 92075-4011 2
CAP-TANK,FUEL 10 51049-1060 1
TUBE,5X7X500 11 92059-4001 1
DAMPER, FUEL TANK 12 92075-4008 1
