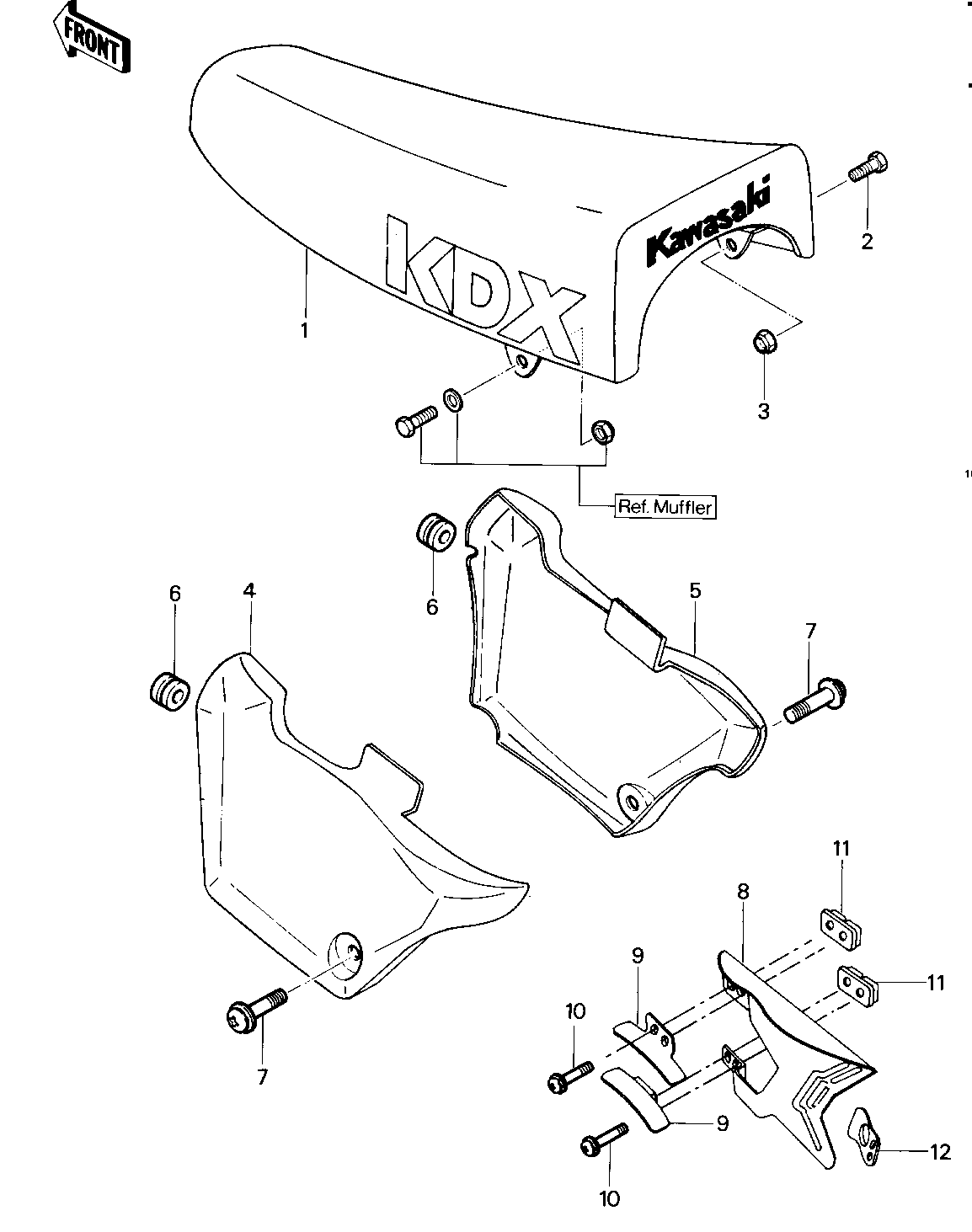

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SEAT-ASSY 1 53001-4002 1
BOLT,FLANGED,8X14 2 130G0814 1
NUT,LOCK,8MM 3 92015-1124 1
SIDE COVER,LH 4 36001-4001-7F 1
SIDE COVER,RH 5 36001-4002-7F 1
DAMPER RUBBER 6 92075-1028 2
SCREW,6X10 7 92009-1286 2
CHAIN GUARD 8 36014-4001 1
GUARD,WEAR STRIP 9 55020-4002 2
SCREW,6X20 10 92009-1289 4
PLATE 11 13169-4004 2
BRACKET 12 11034-4005 1
