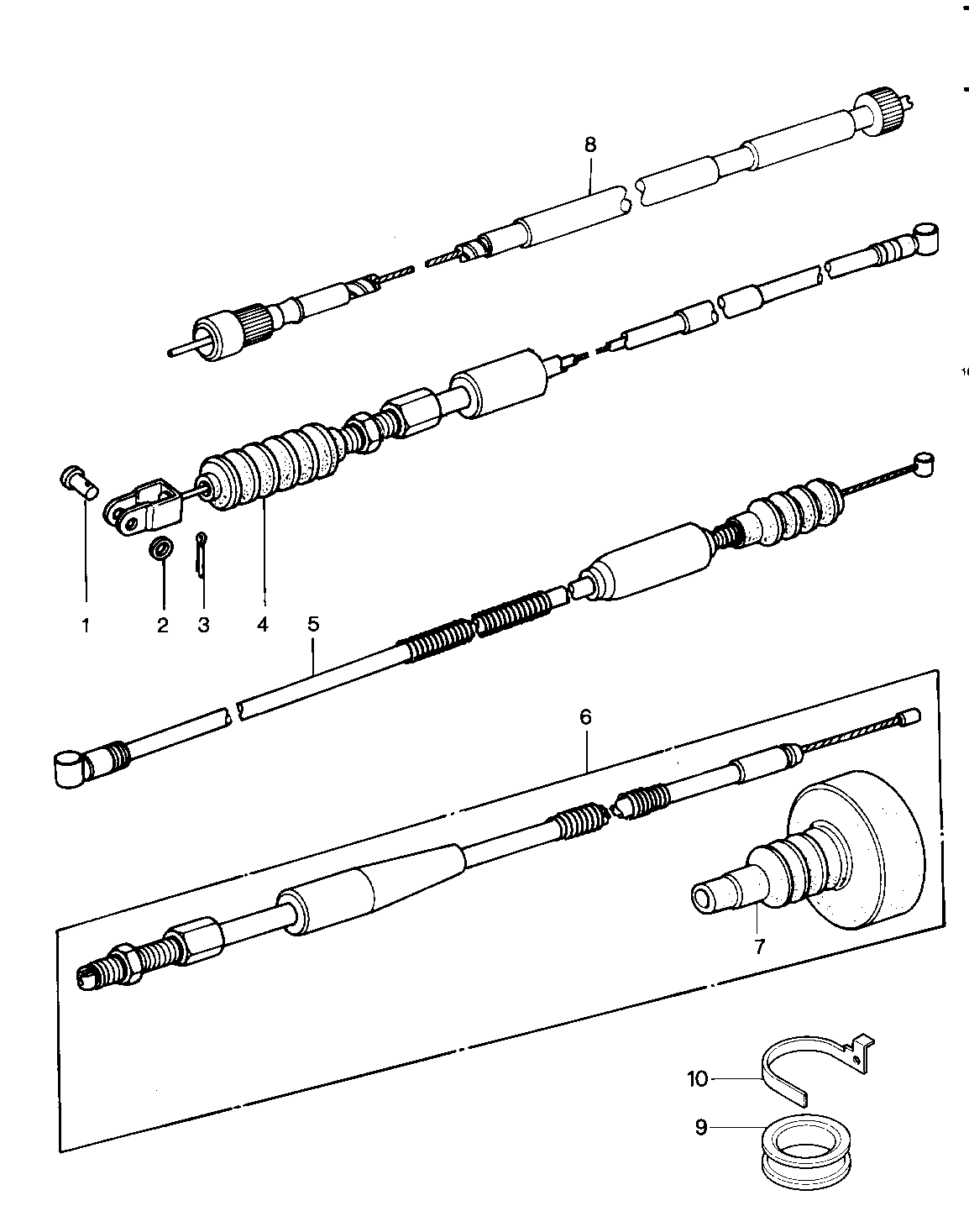

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
PIN-BRAKE ROD FITTING 1 92043-064 1
WASHER PLAIN 6MM 2 410B0600 1
PIN COTTER 2.0X15 3 550D2015 1
CABLE,BRAKE 4 54005-4002 1
CABLE,CLUTCH 5 54011-4001 1
CABLE,THROTTLE 6 54012-1045 1
BOOT,THROTTLE CABLE 7 49006-1016 1
CABLE,SPEEDOMETER 8 54001-4001 1
CABLE GUIDE,HEAD LAMP 9 13070-4001 1
CLAMP, CABLE GUIDE 10 92037-4002 1
