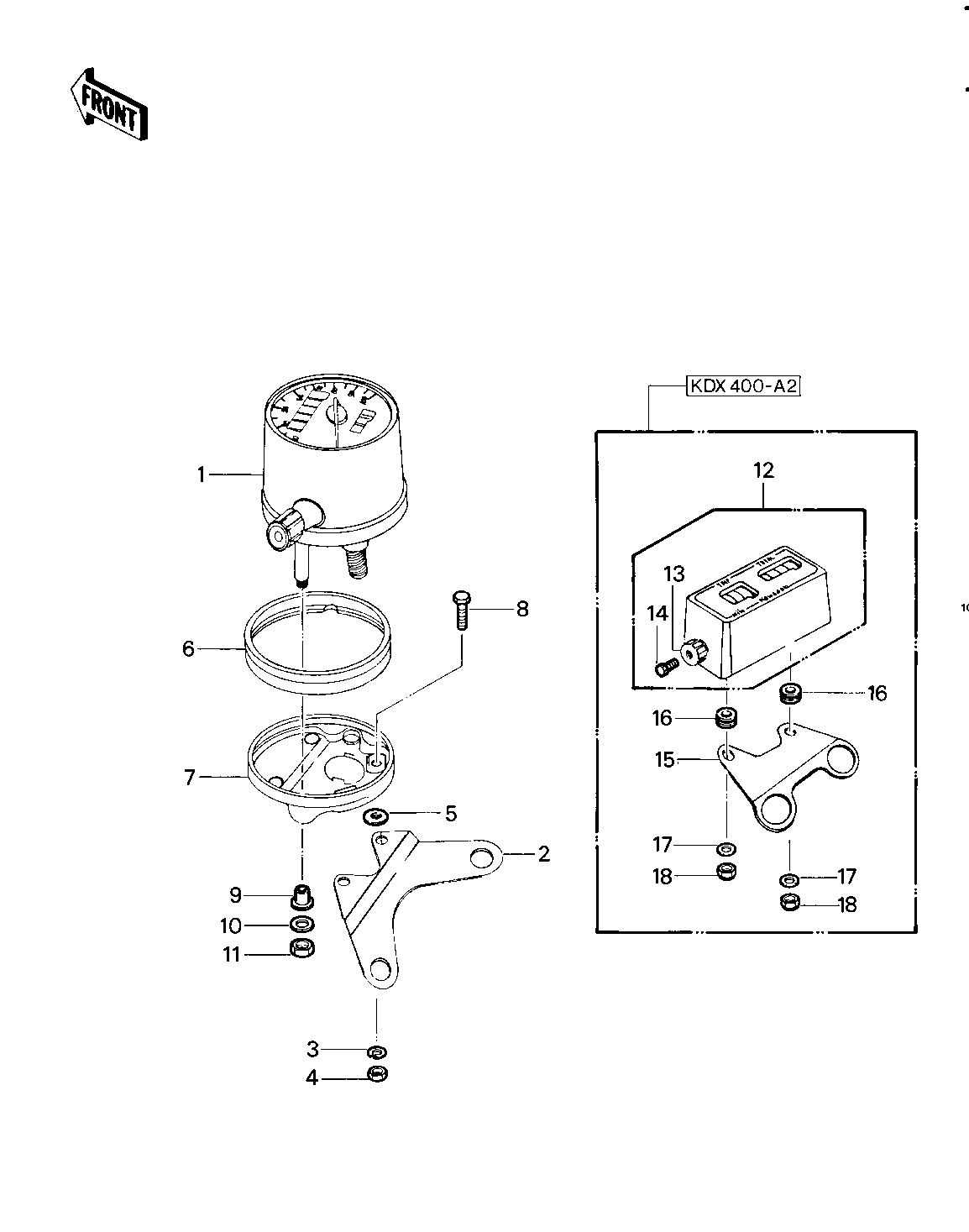

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SPEEDOMETER,MPH 1 25005-1034 1
BRACKET,METER 2 11034-4010 1
WASHER SPRING 6MM 3 461F0600 2
NUT 6MM 4 311B0600 2
WASHER,6M/M,METER 5 92022-1039 2
DAMPER,METER 6 92075-1102 1
COVER,METER 7 14025-1075 1
BOLT,HEX HEAD,6X14 8 92003-204 2
DAMPER RUBBER,MET FIT 9 25019-023 2
WASHER PLAIN 5MM 10 411B0500 2
NUT,5MM 11 311B0500 2
