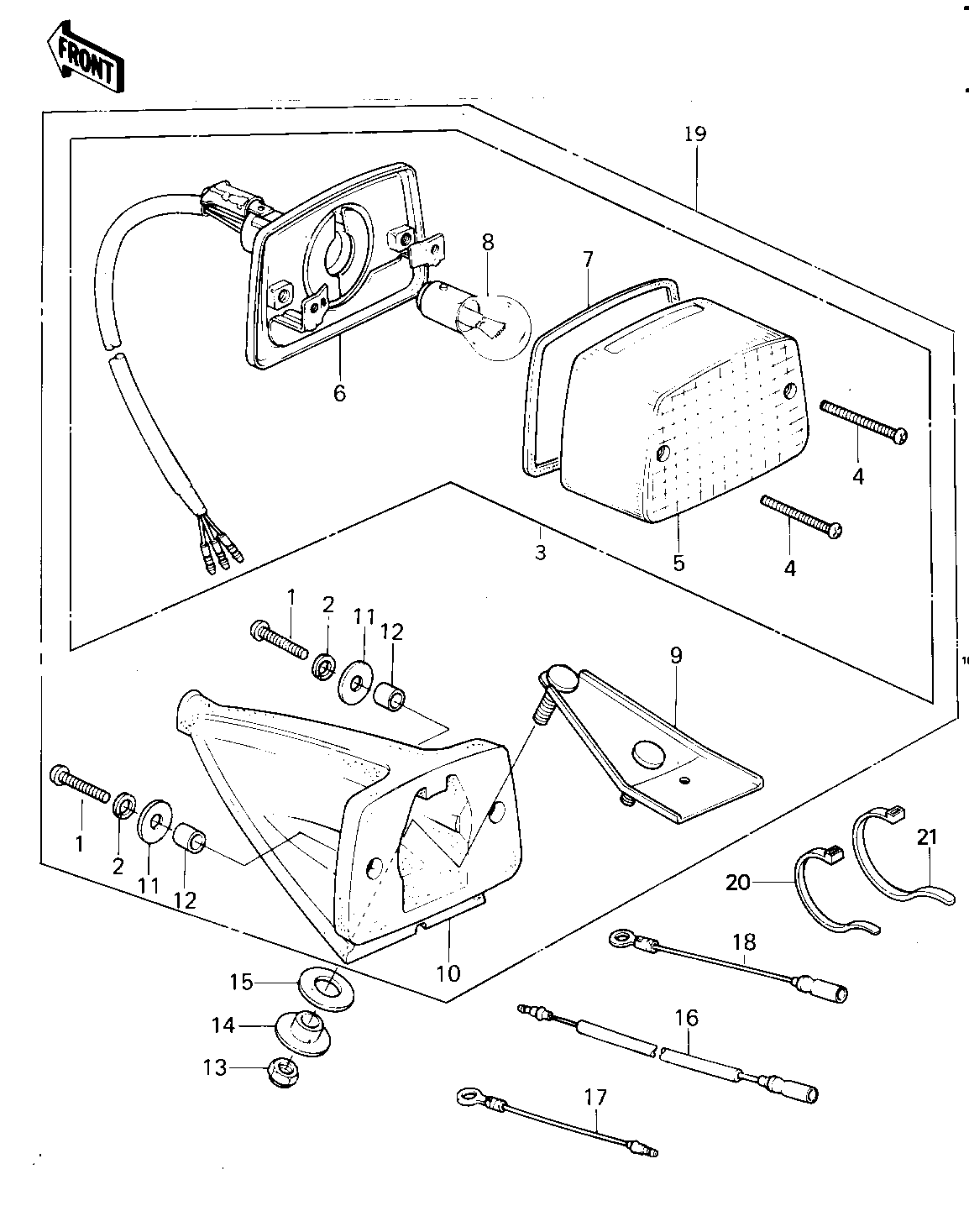

1979 KDX400 - TAILLIGHT/CHASSIS ELECTRICAL EQUIPMENT
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
UNAVAILABLE IN PRICE BOOK | 1 | 214B0516A | 2 | ||
WASHER SPRING 5MM | 2 | 461F0500 | 2 | ||
LAMP,TAIL | 3 | 23025-075 | 1 | ||
SCREW-PAN-CROS | 4 | 220B0330 | 2 | ||
LENS,TAIL LAMP | 5 | 23026-040 | 1 | ||
CASE,TAIL LAMP | 6 | 23027-044 | 1 | ||
GASKET,TAIL LIGHT | 7 | 23028-020 | 1 | ||
BULB,6V 17/5.3W | 8 | 92069-028 | 1 | ||
BRACKET,TAIL LAMP | 9 | 23036-4001 | 1 | ||
BODY,TAIL LAMP | 10 | 23069-4001 | 1 | ||
WASHER,TAIL LAMP | 11 | 92022-4001 | 2 | ||
COLLAR,TAIL LAMP | 12 | 92027-4002 | 2 | ||
NUT | 13 | 92019-008 | 2 | ||
COLLAR | 14 | 92027-1045 | 2 | ||
DAMPER RUBBER | 15 | 92075-118 | 2 | ||
WIRE, TAILLAMP | 16 | 26011-4001 | 1 | L=500 MM | |
WIRE, GROUND HEADLAMP | 17 | 26011-4002 | 1 | L=100 MM | |
WIRE, GROUND TAILLITE | 18 | 26011-4003 | 1 | L=100 MM | |
TAIL LAMP ASSY | 19 | 23024-4001 | 1 | ||
BAND | 20 | 92072-3505 | 4 | ||
BAND | 21 | 92072-3509 | 3 |
UNAVAILABLE IN PRICE BOOK | |
REF # | 1 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
WASHER SPRING 5MM | |
REF # | 2 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
LAMP,TAIL | |
REF # | 3 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SCREW-PAN-CROS | |
REF # | 4 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
LENS,TAIL LAMP | |
REF # | 5 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CASE,TAIL LAMP | |
REF # | 6 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GASKET,TAIL LIGHT | |
REF # | 7 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BULB,6V 17/5.3W | |
REF # | 8 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BRACKET,TAIL LAMP | |
REF # | 9 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BODY,TAIL LAMP | |
REF # | 10 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WASHER,TAIL LAMP | |
REF # | 11 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
COLLAR,TAIL LAMP | |
REF # | 12 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
NUT | |
REF # | 13 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
COLLAR | |
REF # | 14 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
DAMPER RUBBER | |
REF # | 15 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
WIRE, TAILLAMP | |
REF # | 16 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | L=500 MM |
WIRE, GROUND HEADLAMP | |
REF # | 17 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | L=100 MM |
WIRE, GROUND TAILLITE | |
REF # | 18 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | L=100 MM |
TAIL LAMP ASSY | |
REF # | 19 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BAND | |
REF # | 20 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
BAND | |
REF # | 21 |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS |
