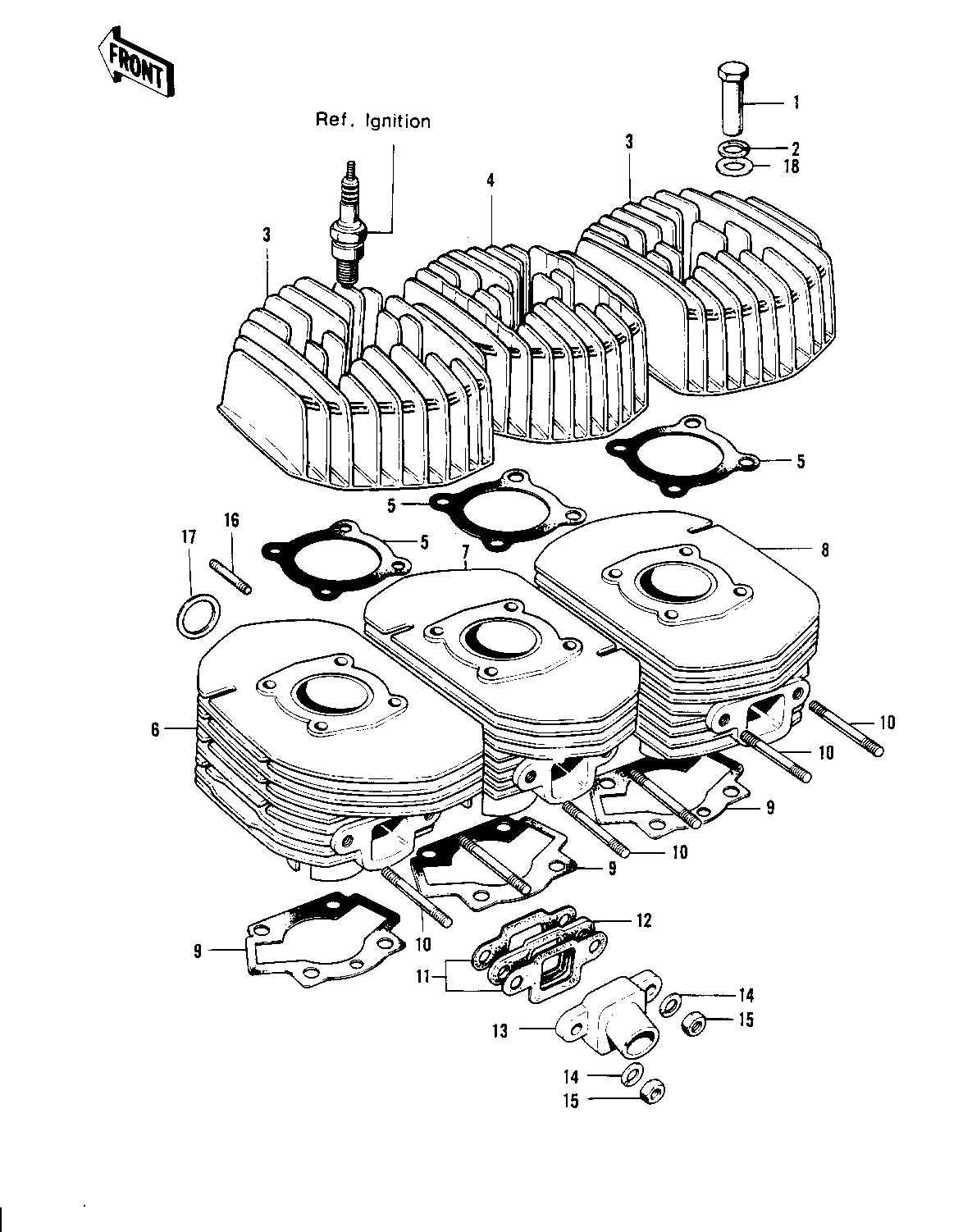

1974 Mach II - CYLINDER HEADS/CYLINDERS ('74-'75 S3/S3-

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
NUT 8MM 1 92015-020 12
WASHER SPRING 12MM 2 461F1200 12
CYLINDER HEAD,L.H&R.H 3 11001-086-2H 2
CYLINDER HEAD,CENTER 4 11001-087-2H 1
GASKET,CYLINDER HEAD 5 11004-061 3
CYLINDER,L.H,BARREL 6 11005-125-2H 1
CYLINDER,CNTR,BARREL 7 11005-126-2H 1
CYLINDER,R.H,BARREL 8 11005-127-2H 1
GASKET,CYLINDER BASE 9 11009-036 3
STUD 8X20 10 172G0820 6
GASKET-AIR INLET 11 16062-014 6
INSULATOR-HEAT 12 16061-012 3
INLET-AIR 13 16060-012 3
WASHER SPRING 8MM 14 461F0800 6
NUT,8MM 15 311B0800 6
STUD,8X35 16 92004-1009 6
STUD,8X35 16 92004-1009 6
GASKET EXHAUST PIPE 17 18067-008 3
WASHER PLAIN 12MM 18 92022-072 12
