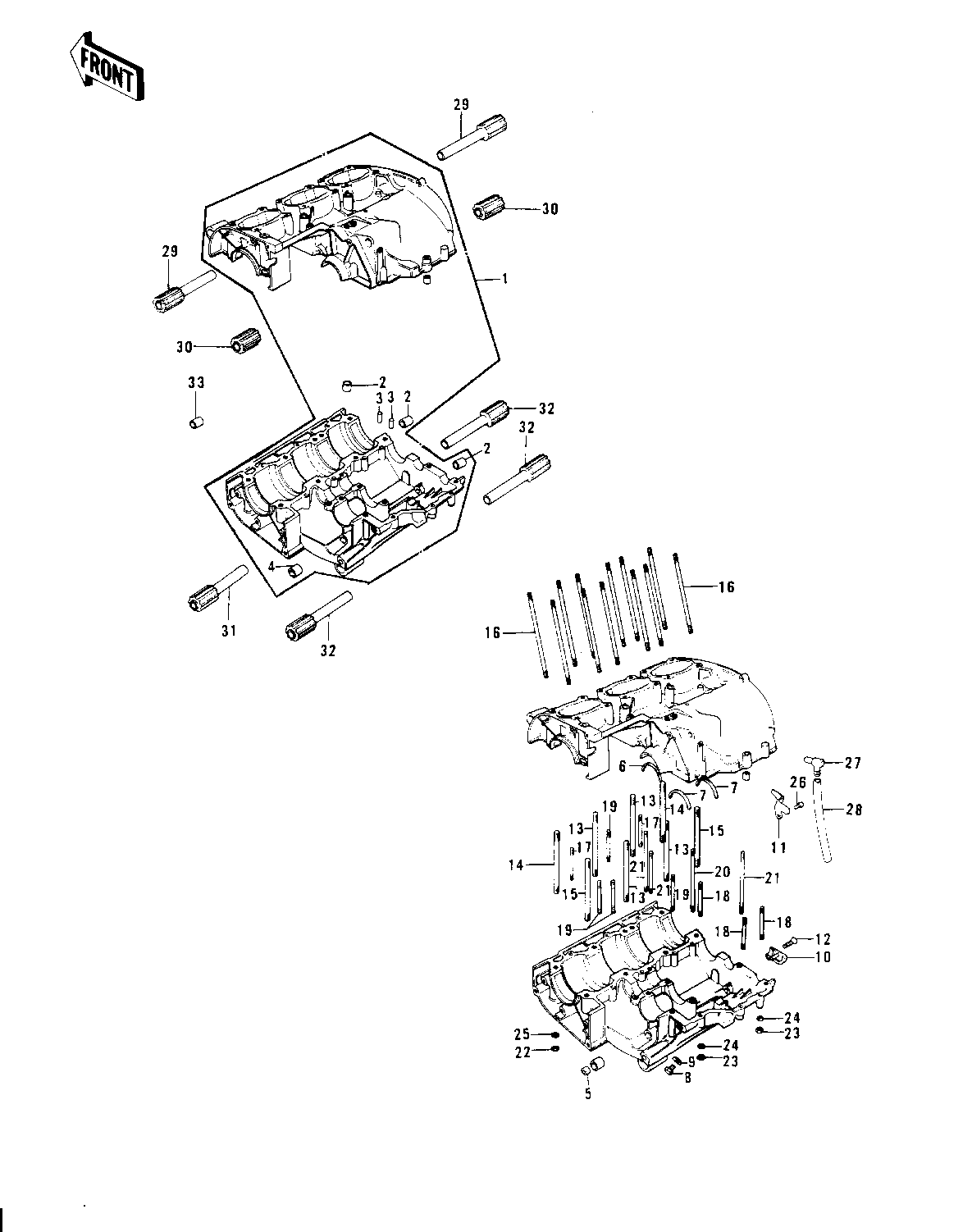

1974 Mach II - CRANKCASE ('74-'75 S3/S3-A)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CRANKCASE SET 1 14001-059 1
PIN,DOWEL,10X8.2X14 2 92043-1037 4
PIN DOWEL 6MM 3 92042-016 3
BUSH CHANGE PEDAL SHT 4 92028-071 1
OIL SEAL SB12205 5 92049-004 1
RING-BEARING SET 6 14013-013 1
RING BEARING SETTING 7 14013-004 2
PLUG OIL DRAIN 8 92067-001 1
GASKET CHECK VALVE 9 92065-058 1
RECEIVER OIL 10 14015-001 1
RECEIVER-OIL 11 14015-003 1
SCREW CNTSNK HD 6X16 12 221B0616 1
STUD,10X55 13 172G1055 4
STUD,10X70 14 172G1070 2
STUD,10X80 15 172G1080 2
STUD 8X65 16 172G0865 12
STUD 6X22 17 172G0622 2
STUD 6X35 18 172G0635 3
STUD,6X45 19 172G0645 4
STUD 6X50 20 172G0650 1
STUD,6X65 21 172G0665 3
NUT,10MM 22 317B1000 8
NUT 6MM 23 311B0600 13
WASHER SPRING 6MM 24 461F0600 13
WASHER SPRING 10MM 25 461F1000 8
SCREW PAN HEAD 6X10 26 220B0610 1
BREATHER 27 14069-003 1
PIPE-BREATHER 28 92059-061 1
DAMPER RUBBER 29 14017-002 2
DAMPER RUBBER 30 14017-004 2
DAMPER RUBBER 31 14017-009 1
DAMPER RUBBER 32 14017-003 1
PIN-DOWEL 33 92042-007 1
