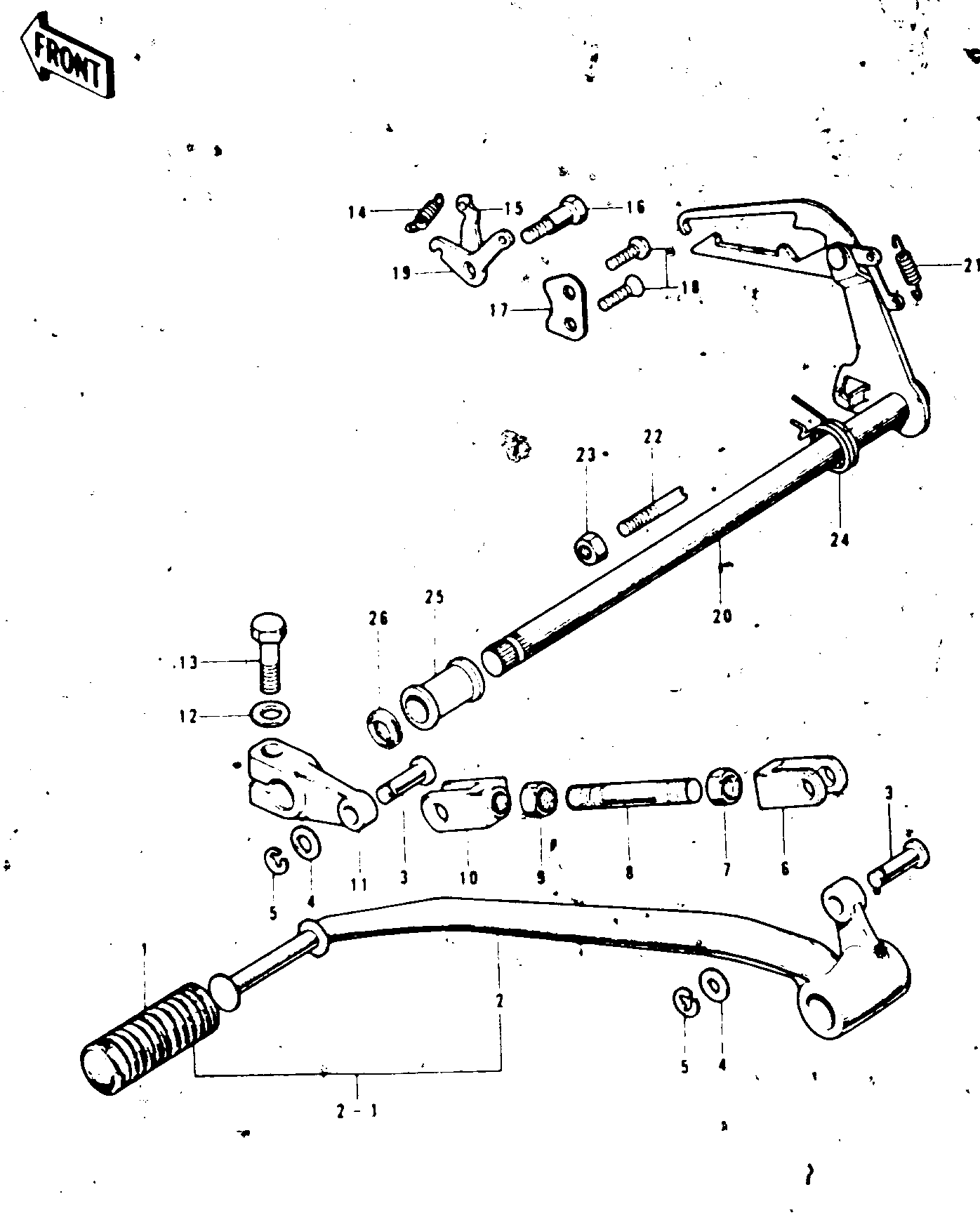

1974 Mach II - GEAR CHANGE MECHANISM ('74-'75 S3/S3-A)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| RUBBER CHANGE PEDAL | 1 | 13157-004 | 1 | ||
| PEDAL ASY,GEAR CHANGE | 2 | 13242-009 | 1 | ||
| PEDAL ASY,GEAR CHANGE | 2-1 | 13242-009 | 1 | ||
| PIN | 3 | 92043-069 | 2 | ||
| WASHER,PLAIN | 4 | 92022-1028 | 2 | ||
| CIRCLIP 5MM | 5 | 482K5000 | 2 | ||
| CONNECTOR,B | 6 | 13159-008 | 1 | ||
| NUT,8MM | 7 | 92017-010 | 1 | ||
| ROD | 8 | 92003-074 | 1 | ||
| NUT,8MM | 9 | 318N0800 | 1 | ||
| CONNECTOR,A | 10 | 13159-007 | 1 | ||
| LEVER-GEAR CHANGE | 11 | 13158-007 | 1 | ||
| WASHER SPRING 8MM | 12 | 461F0800 | 1 | ||
| BOLT,8X25 | 13 | 114N0825 | 1 | ||
| SPRING-COIL | 14 | 92081-091 | 1 | ||
| PLATE-CHNG DRUM LEVER | 15 | 13170-005 | 1 | ||
| SCREW-PAN HEAD | 16 | 92011-023 | 1 | ||
| PLATE-DRUM LEV POSTON | 17 | 13169-007 | 1 | ||
| SCREW CNTSNK HD 6X16 | 18 | 221B0616 | 2 | ||
| LEVER ASSY-CHNG RETRN | 19 | 13236-002 | 1 | ||
| LEVER ASSY GEAR CHNG | 20 | 13161-036 | 1 | ||
| SPRING,CHANGE LEVER | 21 | 92144-1720 | 1 | ||
| BOLT,RETURN SPRING | 22 | 92001-1401 | 1 | ||
| NUT 8MM | 23 | 312B0800 | 1 | ||
| SPRING,TENTION | 24 | 92081-1129 | 1 | ||
| SPRING,TENTION | 24 | 92081-1129 | 1 | ||
| DUST SHIELD-CHNG SHT | 25 | 13171-004 | 1 | ||
| SEAL-OIL | 26 | 92049-1249 | 1 |
