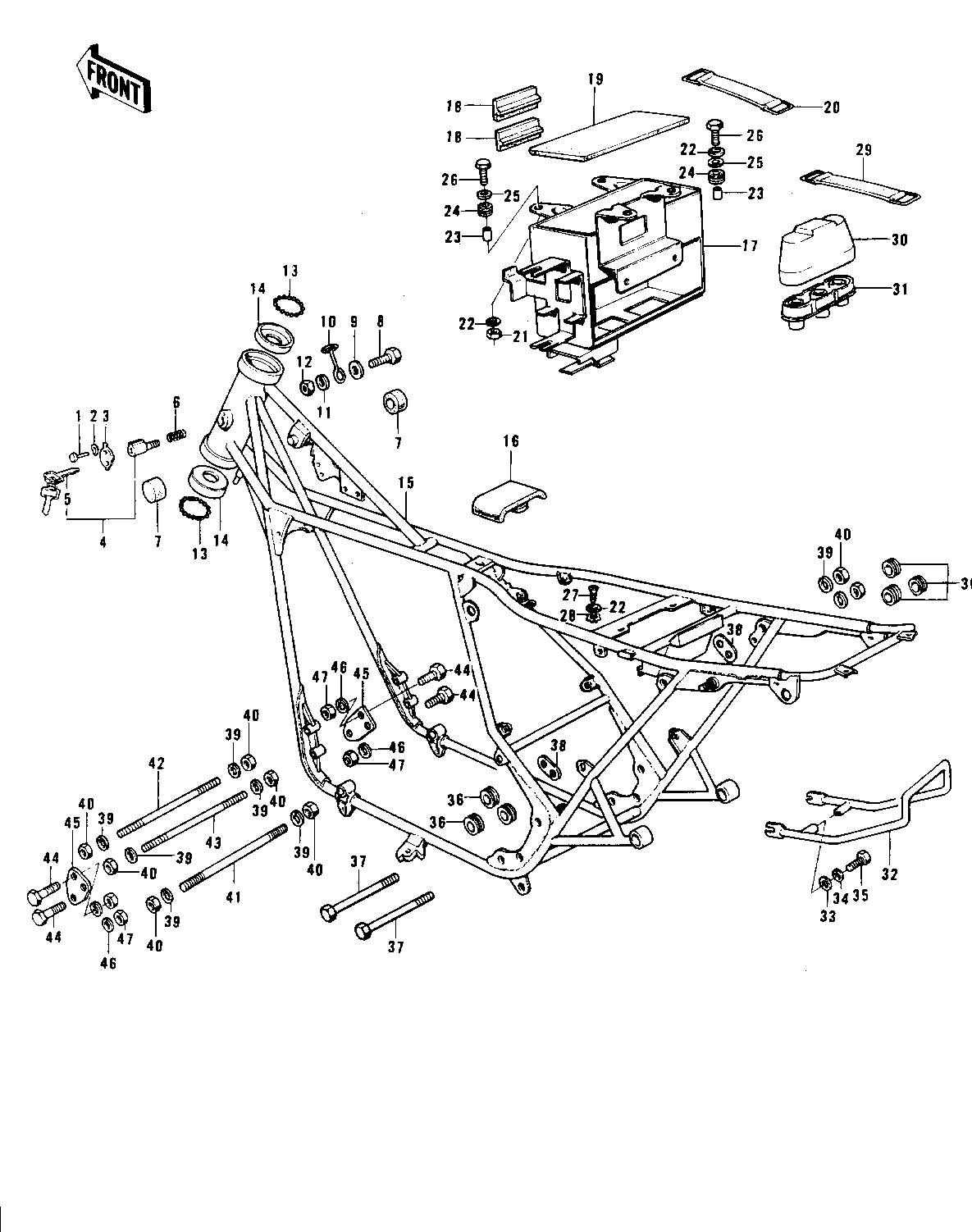

1975 Mach II - FRAME/FRAME FITTINGS ('74-'75 S3/S3-A)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SCREW-TAPPING 1 92008-007
WASHER 2 92097-003
CAP,STEERING LOCK 3 11012-1134
LOCK ASSY,STEERING 4 27016-038
KEY SET,#901 5 27008-055-01
KEY SET,#910 5 27008-055-10
SPRING-STEERING LOCK 6 27032-001
DAMPER RUBBER-FL TANK 7 92075-101
BOLT HEX HEAD 8X16 8 110N0816
WASHER PLAIN 8MM 9 410D0800
CLAMP,CABLE 10 92037-139
WASHER SPRING 8MM 11 461F0800
NUT,8MM 12 311B0800
BALL STEEL 1/4' 13 600A0800
RACE STRNG STEM BERNG 14 92048-006
FRAME 15 32002-129
FRAME 15 32002-129
DAMPER RUBBER,FL TANK 16 92075-214
CASE,BATTERY 17 32097-031
SEAT RECTIFIER RUBBER 18 32103-003
MAT BATTERY 19 32103-006
BAND,OIL TANK 20 92072-045
NUT 6MM 21 311B0600
WASHER SPRING 6MM 22 461F0600
COLLAR,6.8X10X8.5 23 92027-129
DAMPER RUBBER 24 92075-076
WASHER 6.5X20X1.6T 25 92022-125
BOLT 6X22 26 112B0622
SCREW PAN HEAD 6X14 27 220B0614
WASHER LOCK 6MM 28 464H0600
BAND-SPARK PLUG COVER 29 92072-053
COVER-SPARK PLUG 30 32132-003
HOLDER-SPARK PLUG COV 31 32132-002
STAY,REAR FENDER 32 35032-028
WASHER PLAIN 8MM 33 411B0800
WASHER SPRING 8MM 34 461F0800
BOLT,8X20 35 115G0820
GROMMET 36 92071-056
BOLT, FLANGED, 10X110 37 92001-1602
PLATE-ENGINE MOUNT 38 32030-023
WASHER SPRING 10MM 39 461F1000
NUT,10MM 40 314B1000
BOLT,10X237 41 92003-182
BOLT,10X225 42 92003-181
BOLT,10X252 43 92003-209
BOLT,10X45 44 92001-1182
BOLT,FLANGED,8X60 44 92001-1581
PLATE,ENGINE MOUNT,FR 45 32030-030
WASHER SPRING 8MM 46 461F0800
NUT,8MM 47 311B0800
