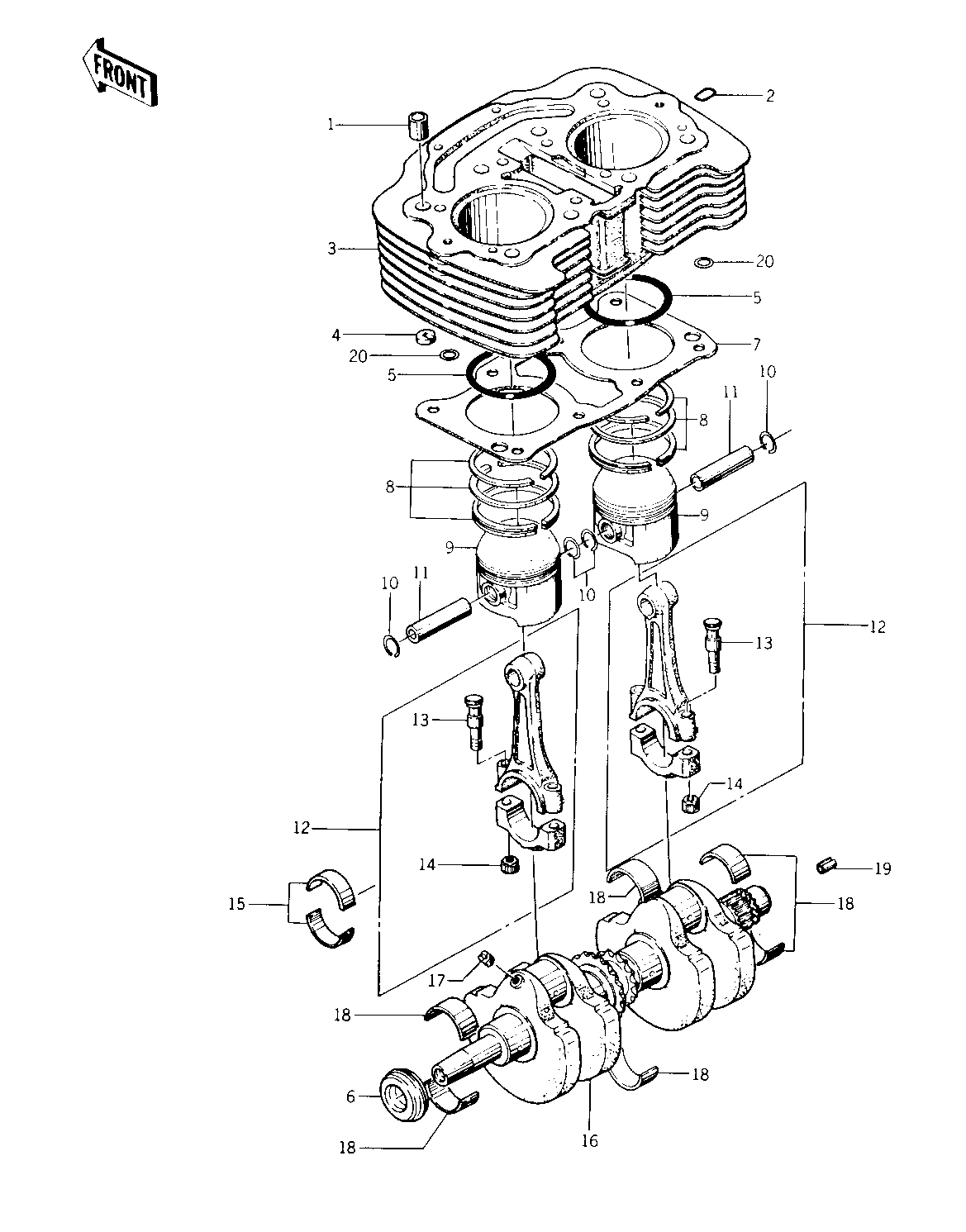

1978 KZ400-A2 - CYLINDER/PISTONS/CRANKSHAFT

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
PIN,DOWEL,14MM 1 92042-032
"O" RING,CYLINDER 2 11009-1012
CYLINDER, 3 11005-146
DAMPER RUBBER,CYLNDR 4 92075-256
"O" RING 5 92055-056
OIL SEAL,L.H CRNKSFT 6 92050-064
GASKET,CYLINDER BASE 7 11009-040
RING SET,PISTON,STD 8 13008-5028
RING SET,PISTON,STD 8 13008-5028
RING SET,0.020",O/S 8 13025-5013
RING SET,0.020",O/S 8 13025-5013
RING SET,0.040",O/S 8 13024-5012
RING SET,0.040",O/S 8 13024-5012
PISTON,STD 9 13001-078
PISTON,0.020'0.S 9 13029-073
PISTON,0.040'0.S 9 13027-066
CIRCLIP PISTON PIN 10 92036-005
PIN-PISTON 11 13002-029
CONNECTING ROD ASSY,H 12 13032-046-HH
CONNECTING ROD ASSY,I 12 13032-046-II
CONNECTING ROD ASSY,J 12 13032-046-JJ
BOLT 13 92001-169
NUT,FLANGED,8MM 14 92015-1311
METAL,CONROD BEARING 15 13034-037
METAL,CON ROD 15 13034-047
METAL,CON ROD 15 13034-048
CRANKSHAFT ASSY 16 13037-061
SCREW,SLOTTED,6X8 17 291H0608
BUSHING,CRANKSHAFT 18 92028-1102 KZ400-A1
BUSHING,CRANKSHAFT 18 92028-1102 KZ400-A2
BUSHING,CRANKSHAFT 18 92028-1102
BUSHING,CRANKSHAFT 18 92028-1102
PIN-SPRING,4X8 19 555A0408
"O" RING 20 92055-074 -- E/NO. 070540
"O" RING 20 92055-090 E/NO. 070541 --
