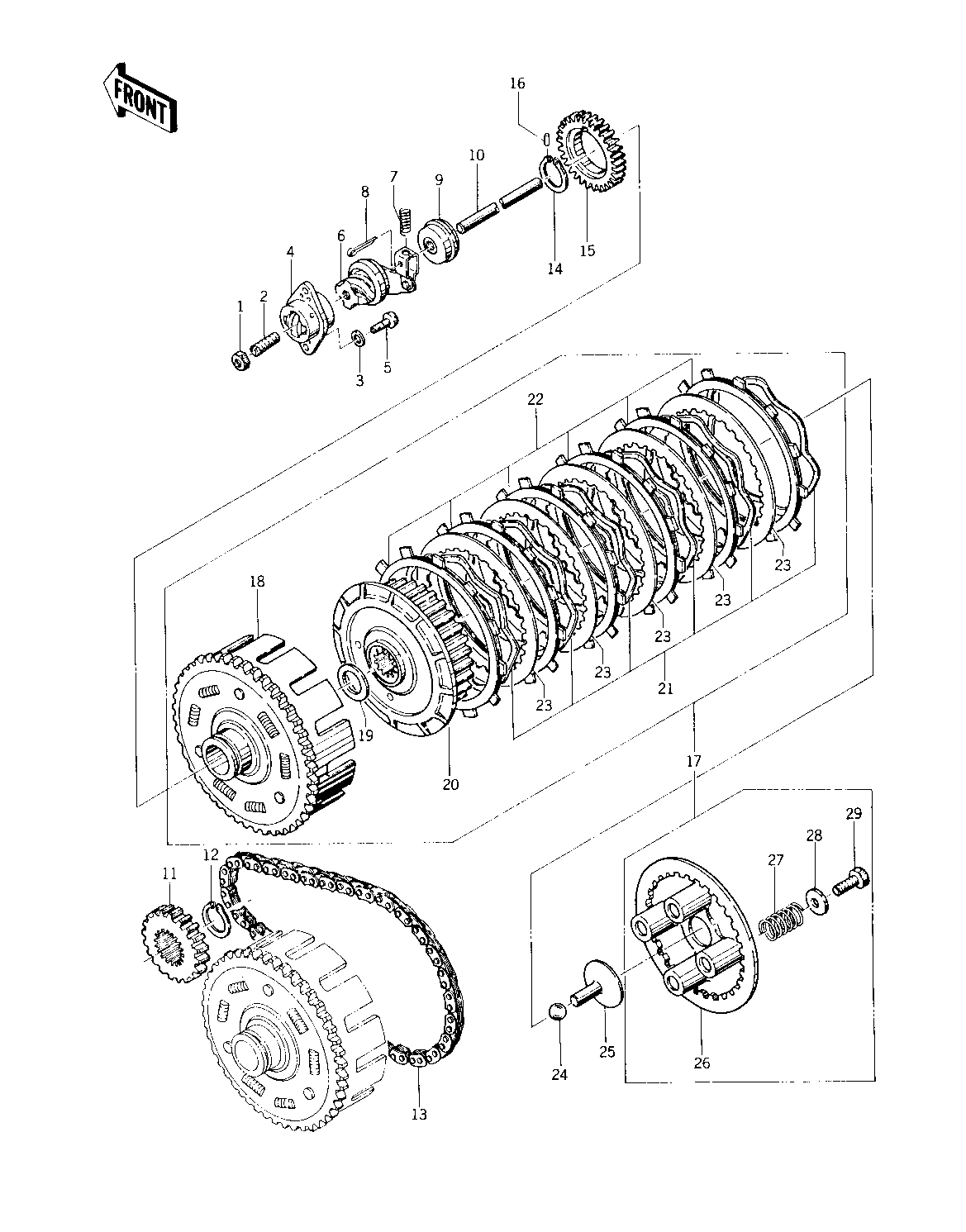

1978 KZ400-A2 - CLUTCH

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
NUT 8MM 1 318B0800
SCREW,SLOTTED,8X25 2 92014-014
WASHER PLAIN 6MM 3 411B0600
OUTER,CLUTCH RELEASE 4 13118-007
SCREW PAN HEAD 6X16 5 220B0616
INNER,CLUTCH RELEASE 6 13102-013
SPRING-CLUTCH RELEASE 7 92081-069
PIN COTTER 1.6X15 8 550D1615
OIL SEAL,PUSH ROD 9 92050-068 CRANKCASE SPLIT TO INSTALL
OIL SEAL,PUSH ROD 9 92049-1041 CRANKCASE SPLIT NOT REQ'D
ROD,PUSH,CLUTCH 10 13116-1017
ROD,PUSH,CLUTCH 10 13116-1017
SPROCKET,PRIMARY 11 13121-030
CIRCLIP,30MM 12 480J3000
CHAIN,PRIMARY DRIVE 13 13122-005
CIRCLIP, 38MM 14 480J3800
GEAR,OIL PUMP 15 16084-019 KZ400-A1
GEAR,OIL PUMP 15 16084-019 KZ400-A2
PIN, DOWELL, 6X6 16 610A0606
CLUTCH-ASSY 17 13081-074
HOUSING,CLUTCH 18 13095-045
WASHER,CLUTCH THRUST 19 92022-288
HUB,CLUTCH 20 13087-040
RING,CLUTCH STEEL 21 13229-005
PLATE,FRICTION 22 13088-1001
PLATE,FRICTION 22 13088-1001
PLATE,CLUTCH STEEL 23 13089-026
BALL STEEL 3/8' 24 600A1200
PUSHER,CLTCH SPRG PLT 25 13116-029
PLATE,CLUTCH SPRING 26 13187-007
SPRING,CLUTCH 27 92081-1033
SPRING,CLUTCH 27 92081-1033
HOLDER,CLUTCH SPRING 28 13091-011
BOLT-UPSET 29 112G0618
