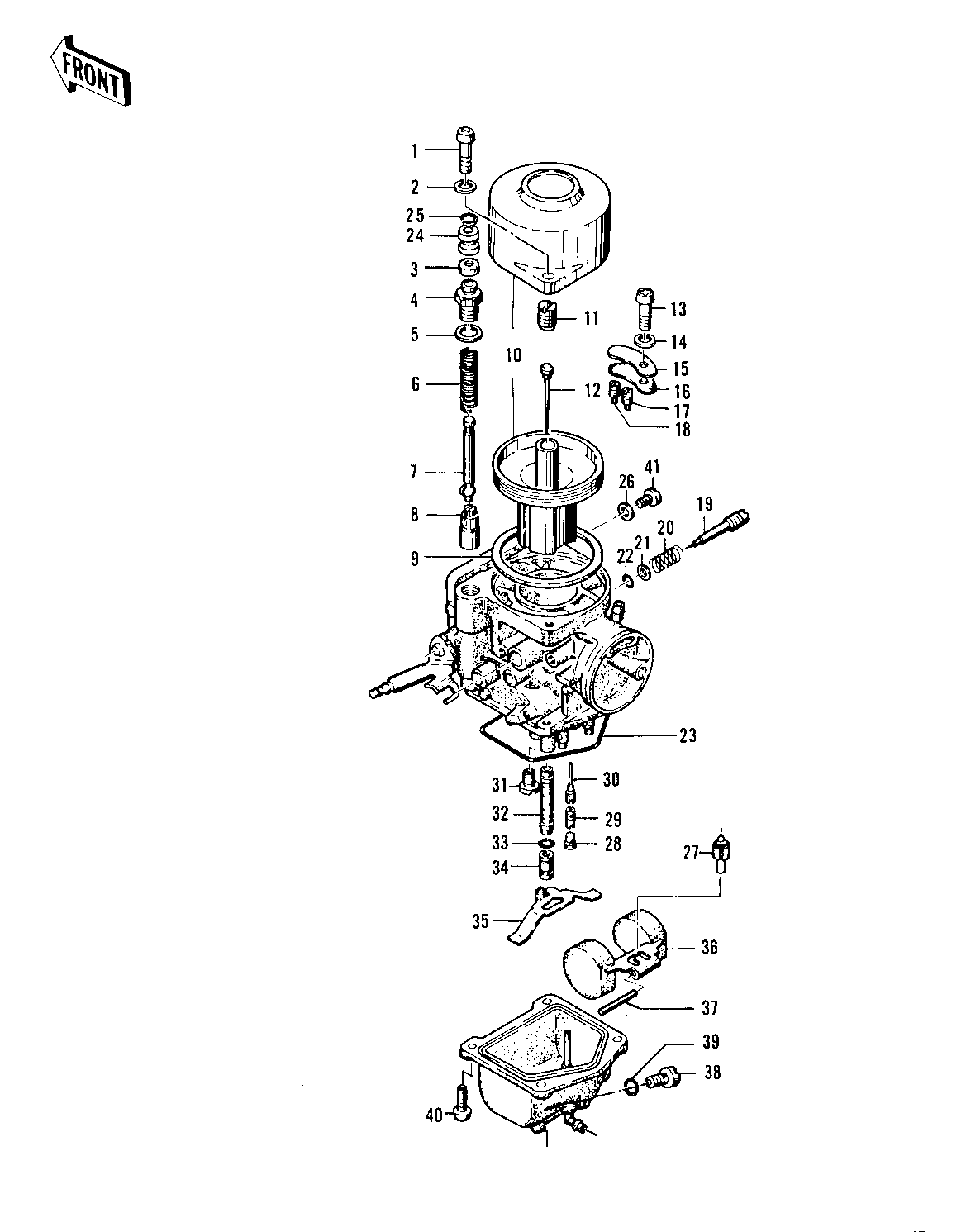

1978 KZ400-A2 - CARBURETOR PARTS (KZ400-A1)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
UNAVAILABLE IN PRICE BOOK 1 214B0516A
WASHER SPRING 5MM 2 461F0500
CAP,STARTER PLUNGER 3 16036-014
CAP,STARTER PLUNGER 4 16012-018
WASHER,PLAIN 5 16039-022
SPRING,STARTER PLUNG 6 16013-012 757B
SPRING,STARTER PLUNGR 6 16013-013 757C & LATER
SHAFT,STARTER PLUNGR 7 16041-007 757B
SHAFT,STARTER PLUNGER 7 16041-018 757C & LATER
PLUNGER,STARTER 8 16016-015
GASKET,VACUUM PISTON 9 16029-008
VACUUM PISTN&CAB CAP 10 16059-003
HOLDER,JET NEEDLE 11 16018-003
JET NEEDLE,303011 12 16009-069
SCREW PAN HEAD 4X6 13 220B0406
WASHER SPRING 4MM 14 461F0400
PLATE,AIR JET 15 16055-005
GASKET,AIR JET PLATE 16 16029-009
AIR JET,#40 17 16035-007
AIR JET,#90 18 16035-005 757 SERIES
AIR JET,#40 18 16035-007 V5A OR V5B
SCREW,PILOT ADJUST 19 16014-013
SPRING,PILOT ADJ SCR 20 16015-007
WASHER,PLAIN,3.6MM 21 16039-021
"O" RING,PILOT SCREW 22 16038-011
"O" RING,FLOAT BALL 23 16019-024
COLLAR 24 16073-015 757C & LATER
CIRCLIP 25 16008-018 757C & LATER
WASHER,PLAIN,6MM 26 16039-028
FLOAT VALVE 27 16030-1007 SEAT PRESSED IN BODY
CAP,PILOT JET RUBBER 28 16036-015
PILOT JET,#35 29 92064-043
SLOW JET,#35 30 16158-002
STARTER JET,#68 31 16157-003
NEEDLE JET 32 16017-088
"O" RING MAIN JET 33 16038-013
MAIN JET, #130 34 92063-130 STD
MAIN JET,#115 34 92063-136
MAIN JET,#120 34 92063-129
MAIN JET,#125 34 92063-137
MAIN JET,#135 34 92063-128
MAIN JET,#140 34 92063-138
MAIN JET, #150 34 92063-131
MAIN JET, #160 34 92063-132
PLATE,MAIN JET 35 16055-007
FLOAT 36 16031-027
FLOAT PIN 37 16032-007
SCREW,DRAIN 38 16033-018
"O" RING,DRAIN SCREW 39 92055-1003
SCREW PAN HEAD 4X10 40 220B0410
SCREW,PLUG 41 16033-019
