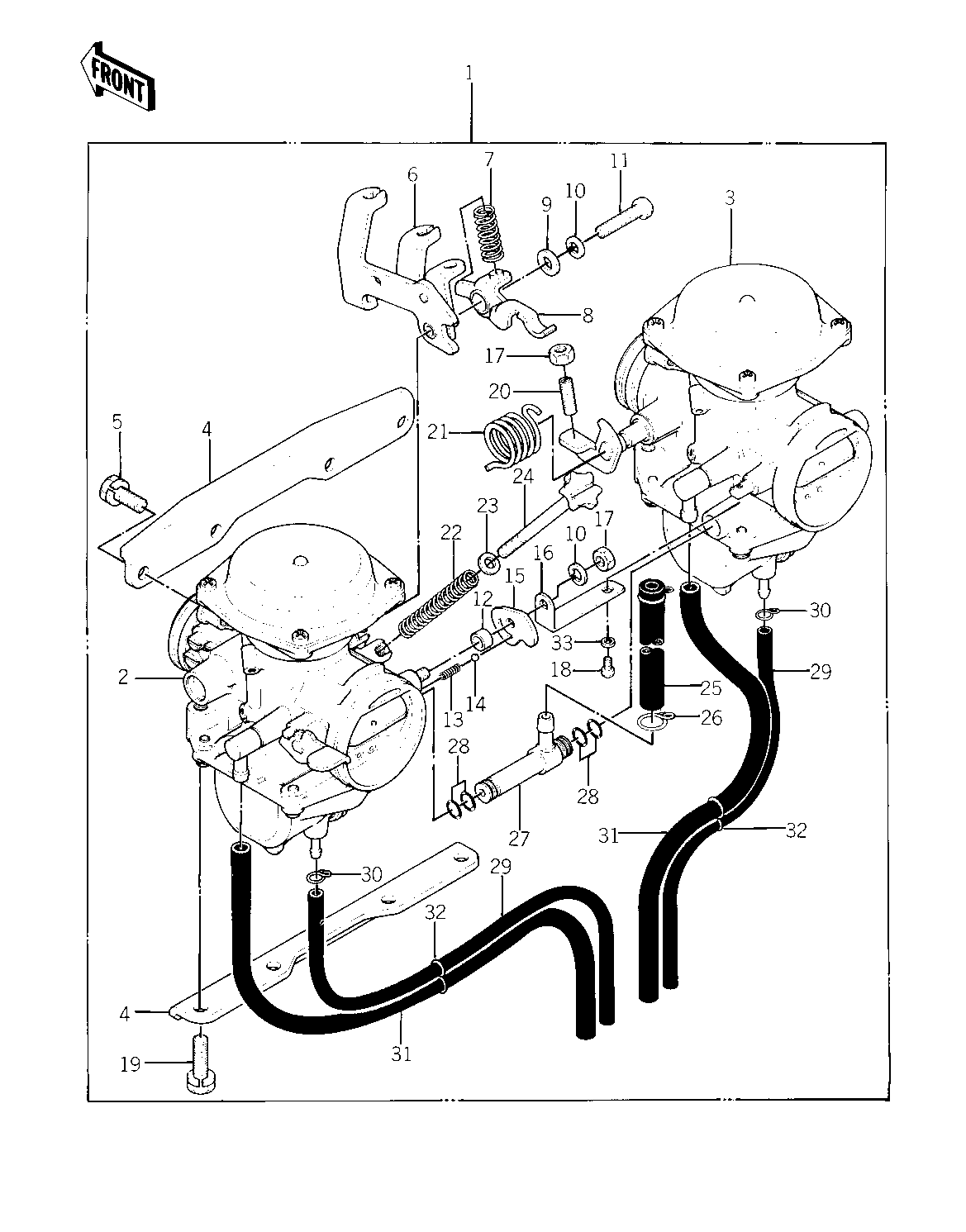

1978 KZ400-A2 - CARBURETOR ASSY (KZ400-A2)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CARBURETOR ASSY 1 16001-300
CARBURETOR,L.H. 2 16001-1006
CARBURETOR,R.H. 3 16001-1007
PLATE,STAY 4 16065-1001
SCREW,6X16 5 92009-1129
BRACKET,THR.CBL 6 11034-1008
SPRING 7 92081-1003
ROCKER ARM 8 11034-1009
WASHER,PLAIN 9 16039-027
WASHER SPRING 5MM 10 461F0500
SCREW-PAN-CROS,5X25 11 220B0525
COLLAR,CHOKE LEVER 12 16073-1001
SPRING 13 92081-1004
BALL,STEEL,1/8" 14 600A0400
CAM,CHOKE LINK 15 13169-1007
BRACKET,CHOKE LEVER 16 11034-1010
NUT,5MM 17 311B0500
SCREW-PAN-HEAD 3X6 18 220B0306
BOLT,HEX HEAD,6X22 19 92009-1006
SCREW,SLOTTED 20 16021-1002
SPRING 21 92081-1006
SPRING,THR.STOP SCREW 22 92081-1005
WASHER PLAIN 5MM 23 410B0500
SCREW,THROTTLE STOP 24 16021-1001
HOSE,FUEL INLET 25 92059-1001
CLAMP,FUEL HOSE 26 92037-1040
NIPPLE,FUEL HOSE 27 16046-013
"O" RING 28 92055-1004
HOSE,FUEL OVERFLOW 29 92059-111
CLAMP,TUBE,OVERFLOW 30 92037-1142
HOSE 31 92059-110
CLAMP,OVERFLOW HOSE 32 16044-002
WASHER SPRING 3MM 33 461F0300
