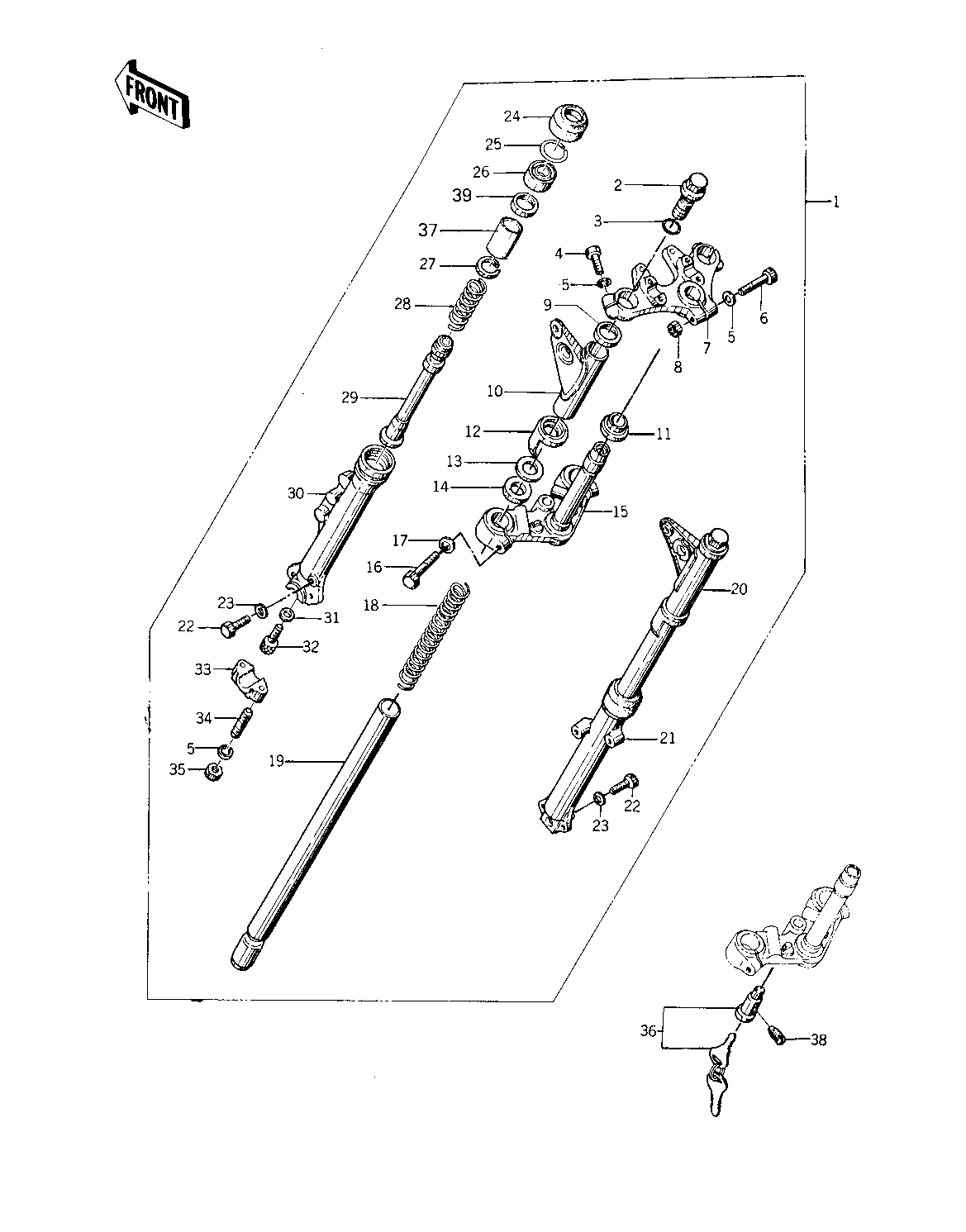

1978 KZ400-A2 - FRONT FORK

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
FORK-FRONT 1 44001-201
BOLT, FORK TOP 2 44032-012
"O" RING,FORK TOP BLT 3 44046-023
BOLT,HEX HEAD,8X40 4 92001-1063
WASHER SPRING 8MM 5 461F0800
BOLT-HEX HEAD,8X55 6 44041-038
HEAD, STEERING STEM 7 44039-064
NUT,LOCK,8MM 8 92015-1124
CAP,FORK COVER 9 44064-026
COVER,L.H FORK 10 44033-080
CONE STRNG STEM BERNG 11 92047-006
CAP, FORK COVER 12 44064-021
WASHER,FORK COVER 13 92022-297
DAMPER RUBBER,FK COV 14 92075-240
STEM, STEERING 15 44037-077
BOLT,10X50 16 92001-1007
WASHER SPRING 10MM 17 461F1000
SPRING, FORK 18 44026-061
TUBE,FORK INNER 19 44013-1001
COVER,R.H FORK 20 44034-080
TUBE,RH,FORK OUTER 21 44006-1002
BOLT HEX HEAD 6X8 22 110B0608
GASKET,DRAIN PLUG 23 44045-047
DUST SHIELD,FORK 24 92093-1063
RING,OIL SEAL STOPER 25 44043-057
OIL SEAL,FORK 26 92049-1077
RING, PISTON 27 44025-003
SPRING,FORK SHORT 28 44026-1001
CYLINDER-FORK 29 44022-035
TUBE,LH,FORK OUTER 30 44005-1002
GASKET,FORK CYL BOLT 31 44045-051
BOLT,FORK CYLINDER 32 44041-078
HOLDER, FRONT AXLE 33 44063-010
STUD 8X30 34 172G0830
NUT,LOCK,8MM 35 92017-013
LOCK ASSY,STEERING 36 27016-043
BUSHING,FORK 37 44065-1001
SCREW,SEAT LOCK 38 92014-016
SPACER,FORK 39 92026-1005
