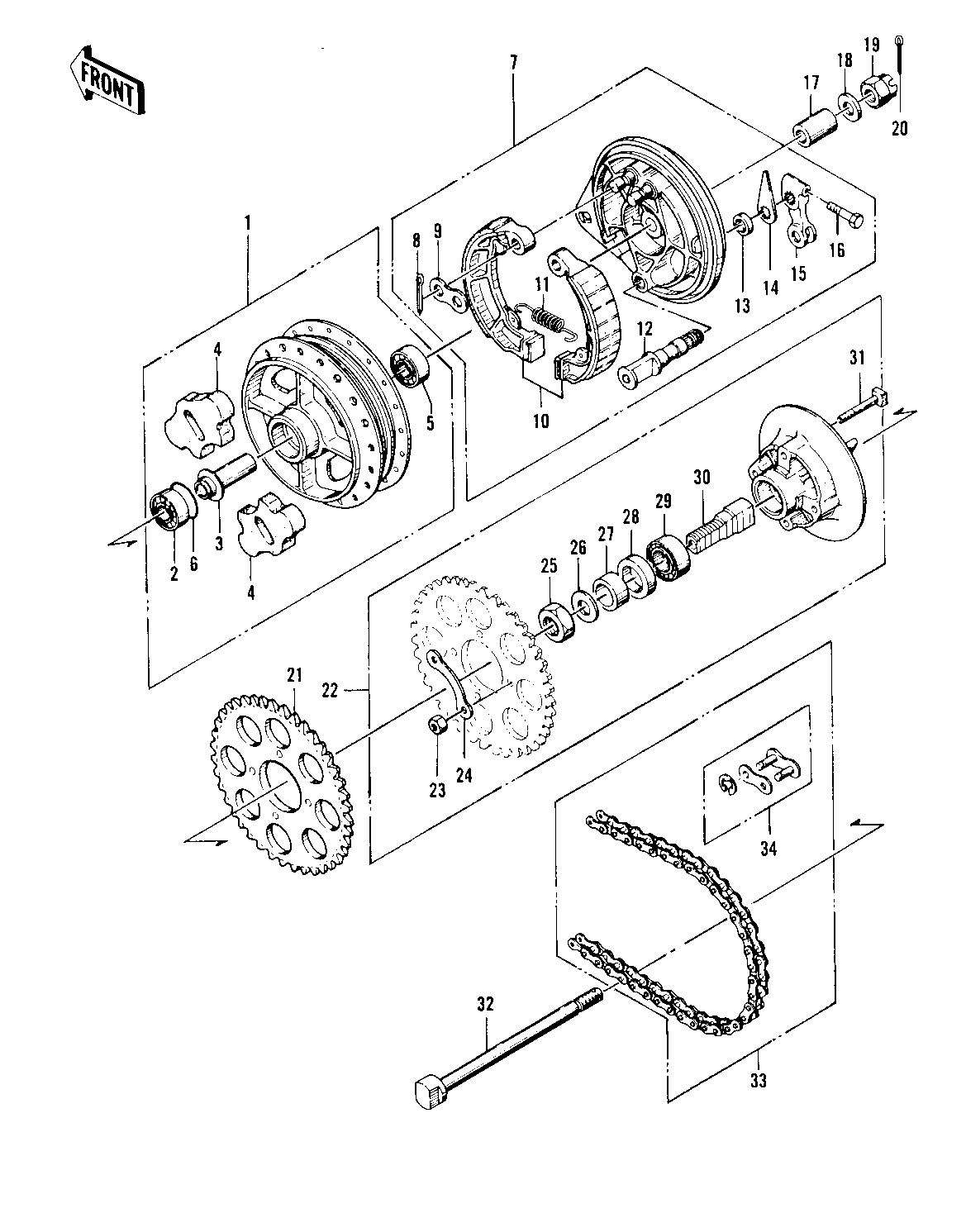

1978 KZ400-A2 - REAR HUB/BRAKE/CHAIN

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
DRUM ASY,RR BK,BUFF 1 42005-044-80 BUFF FINISH
BEARING BALL #6303 2 601B6303
SPACER,RR HUB BEARING 3 42010-027
DAMPER REAR HUB SHOCK 4 42014-008
BEARING BALL #6303Z 5 601B6303Z
"0" RING,60MM 6 671B2560
PANEL-ASY,RR BRK,BUFF 7 42006-055-80 BUFF FINISH
PIN COTTER 2.0X25 8 550D2025
WASHER,BRAKE SHOE 9 41045-007
SHOE REAR BRAKE 10 42019-003
SPRING BRAKE SHOE 11 41049-003
CAM SHAFT,REAR BRAKE 12 42026-024
DUST SHIELD BRAKE CAM 13 41051-001
INDICATOR,RR BK SHOE 14 41085-016
LEVER,REAR BRAKE CAM 15 42029-036
BOLT-SMALL-UPSET 8X25 16 115G0825
COLLAR,REAR AXLE 17 42032-053
WASHER SLEEVE 18 42046-009
NUT CASTLE,16MM 19 92015-055
PIN-COTTER,4.0X35 20 550D4035
REAR SPROCKET,45T 21 42041-145
COUPLING ASSY,RR HUB 22 42008-024
NUT,10MM 23 314B1000
WASHER SPROCKET LOCK 24 92088-005
NUT SLEEVE 25 42045-006
WASHER,PLAIN,24MM 26 92022-293
COLLAR,RR HUB COUPLNG 27 42037-026
OIL SEAL WTC35527 28 92052-006
BEARING BALL #6205 29 601B6205
SLEEVE,RR HUB COUPLNG 30 42036-021
BOLT, RR SPROCKET FIT 31 92003-156
AXLE,REAR 32 42031-050
CHAIN,525X94 SH 33 92057-029 EK530SH
CHAIN JOINT 530 34 92058-008
