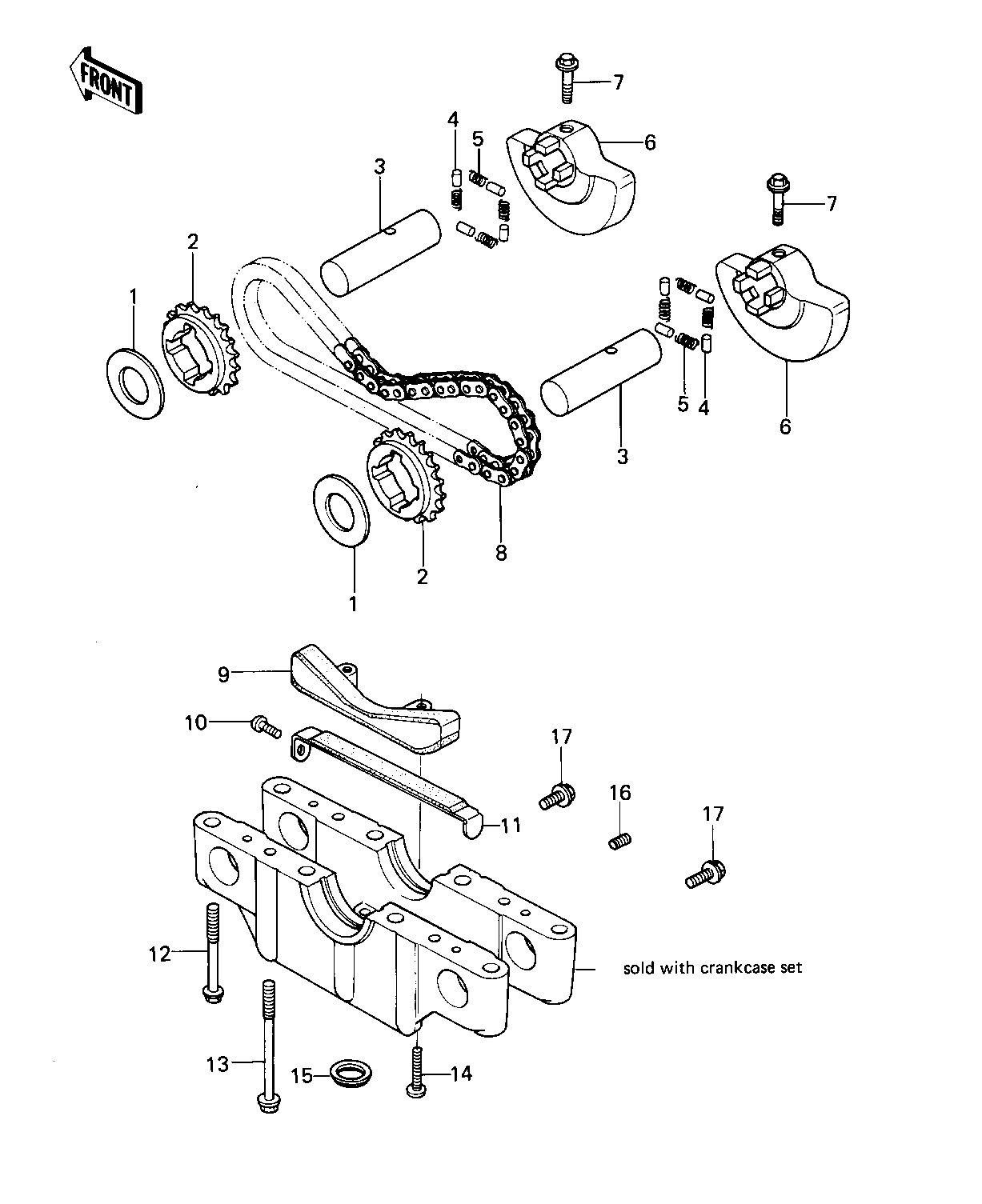

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SPACER,20,3X40X1 1 92026-1003 2
SPROCKET,BALANCER,21T 2 12046-1003 2
SHAFT,IDLER,BALANCER 3 39115-1002 2
PIN DOWEL 4X8 4 610A0408 8
SPRING,BALANCER 5 92081-135 2
BALANCER 6 13041-1002 2
BOLT,6X32 7 92003-229 2
CHAIN,BALANCER 8 92057-1007 1
GUIDE-CHAIN,BALANCER 9 12053-1051 1
SCREW PAN HEAD 6X8 10 220B0608 1
GUIDE,BALANCER,CHAIN 11 12053-1003 1
BOLT,FLANGED,8X58 12 92001-1005 4
BOLT,FLANGED,10X91 13* 92001-1004 3
BOLT,FLANGED,10X91 13* 92001-1004 3
SCREW PAN HEAD 6X30 14 220B0630 2
O RING,0.D=18MM 15 92055-048 1
SCREW,6X6 16* 290Q0606 1
BOLT,FLANGED,6X8 17* 130P0608 2
