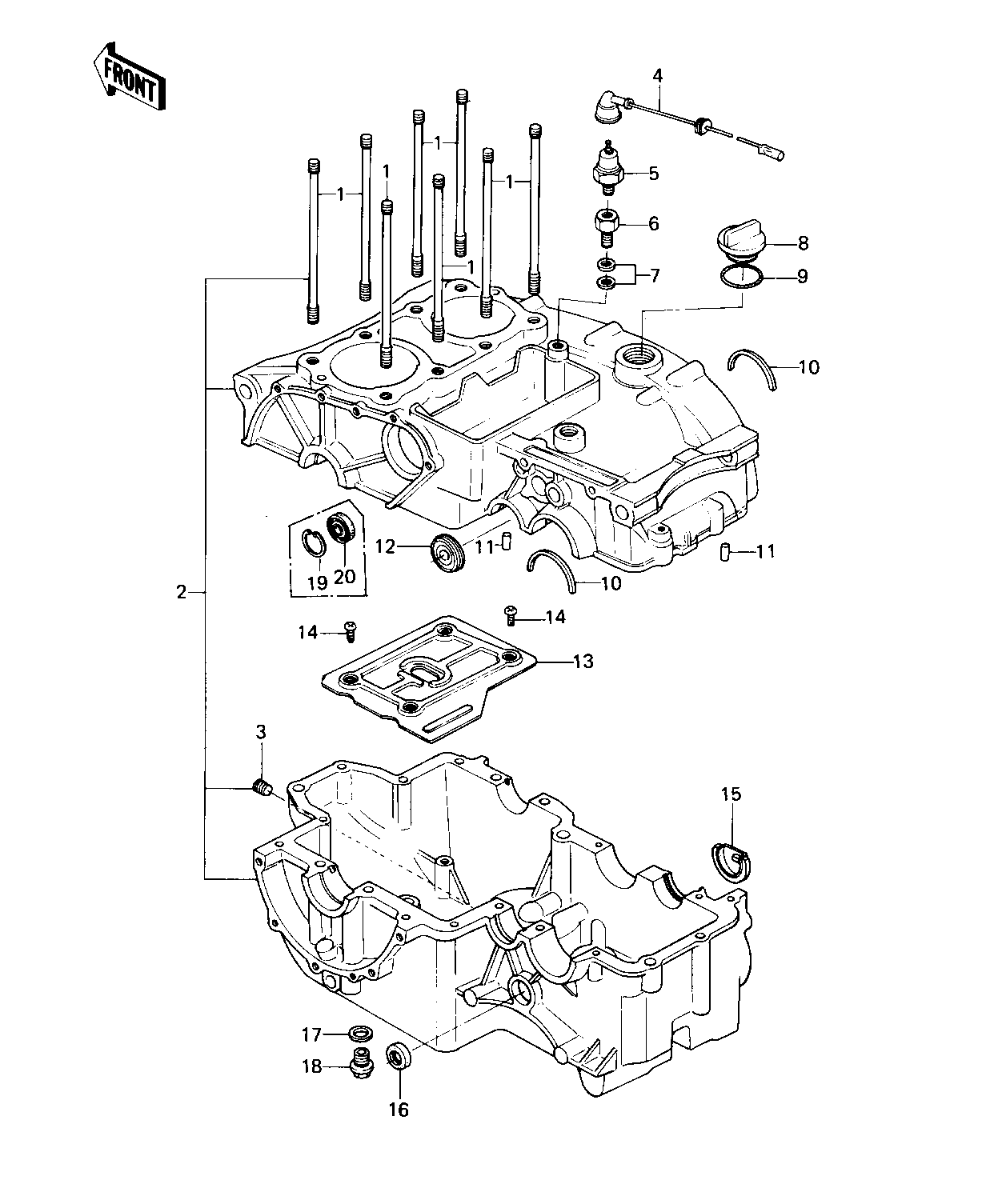

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
STUD,10X153 1* 92004-062
CRANKCASE SET 2 14001-5010 E/NO. 118001~141330
SET-CRANKCASE 2 14001-5087 E/NO. 141331~
PLUG,OIL SWITCH 3* 92066-059
WIRE,LEAD,OIL SWITCH 4 26011-1078
SWITCH,OIL PRESSURE 5 27010-1157
BOLT,OIL SWITCH 6 92001-1020
GASKET,10X14.5X1.5 7 11009-1105
PLUG,OIL FILLER 8 16115-013
"0" RING,31MM 9 92055-049
RING BEARING SETTING 10 14013-004
PIN DOWEL 6MM 11 92042-016
OIL SEAL,PUSH ROD 12 92050-068 E/NO. 118001~141330
PLATE,CRANKCASE 13 13169-1103
SCREW PAN HEAD 6X12 14 220B0612
RECEIVER,OIL 15 13045-1001
OIL SEAL,TB13225.5 16 92051-005
GASKET,DRIN PLUG 17 92065-097
PLUG,OIL DRAIN,12X15 18 92066-1174
CIRCLIP,36M/M 19 481J3600 E/NO. 141331~
OIL SEAL,PUSH ROD 20 92049-1041 E/NO. 141331~
