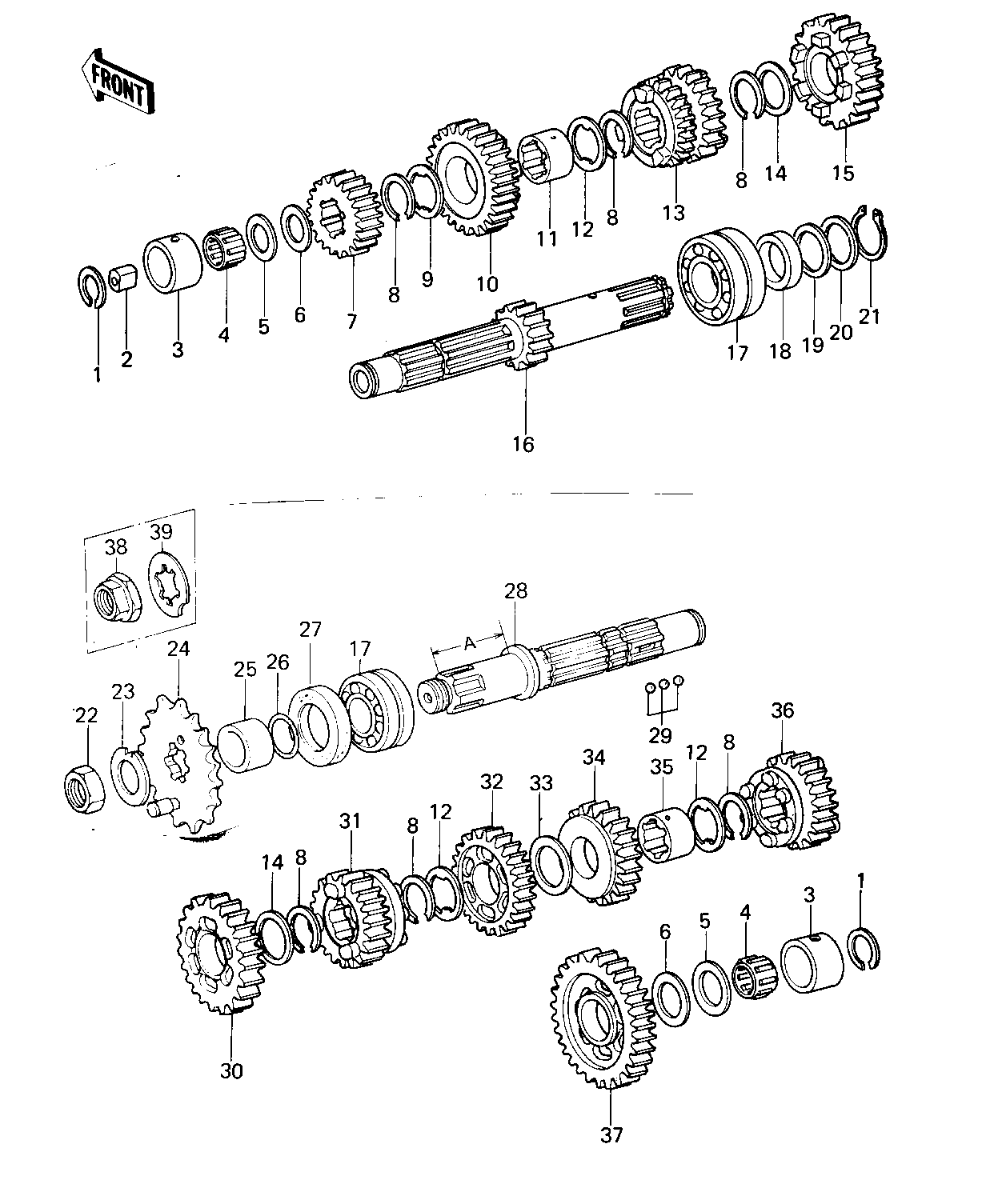

1979 KZ400-B2 - TRANSMISSION

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CIRCLIP 1 92033-015
BUSHING,DRIVE SHAFT 2 92028-155
RACE,OUT & DRV SHAFT 3 92048-1001
BRG,N,20R25139 4 92046-044
SHIM-KICK SHAFT 5 92022-144
WASHER THRUST 6 92022-112
2ND GEAR,DRV SHAFT 7 13129-1062
CIRCLIP 8 92033-026
WASHER-LOCK 9 92024-033
TOP GEAR,DRV SHAFT 10 13129-1055
BUSHING,OUTPUT 3RD GR 11 92028-1002
WASHER-LOCK 12 92024-038
3RD-4TH GEAR,DRV SHFT 13 13129-1054
WASHER-PLAIN 25MM 14 92022-159
GEAR,INPUT5TH,23T 15 13129-1277
SHAFT,DRIVE,13T 16 13127-1004
BEARING,B,5205ANX4PX 17 92045-031
COLLAR 18 92027-289
WASHER-THRUST 19 92022-225
WASHER,CLUTCH TRUST 20 92022-302
CIRCLIP 24MM 21 480J2400
NUT 20MM 22 92016-028 USE FOR 13128-1004
WASHER,LOCK,20MM 23 92024-044 USE FOR 13128-1004
ENGINE SPROCKET 24 13144-1003
COLLAR,ENG SPROCKET 25 92027-288
"O" RING 26 92055-035
OIL SEAL SC325210 27 92050-024
SHAFT,OUTPUT 28 13128-1004
SHAFT,OUTPUT 28 13128-1015
BALL STEEL 5/32' 29 600A0500
2ND GEAR,OUTPUT SHAFT 30 13129-1057
TOP GEAR,OUTPUT SHAFT 31 13129-1061
3RD GEAR,OUTPUT SHAFT 32 13129-1058
WASHER,THRUST 33 92026-079
4TH GEAR,OUTPUT SHAFT 34 13129-1059
BUSHING,OUTPUT GEAR 35 92028-1268
5TH GEAR,OUTPUT SHAFT 36 13129-1060
LOW GEAR,OUTPUT SHAFT 37 13129-1056
NUT,20MM 38 92015-1254 USE FOR 13128-1015
WASHER,SPLINE 39 92022-1083 USE FOR 13128-1015
