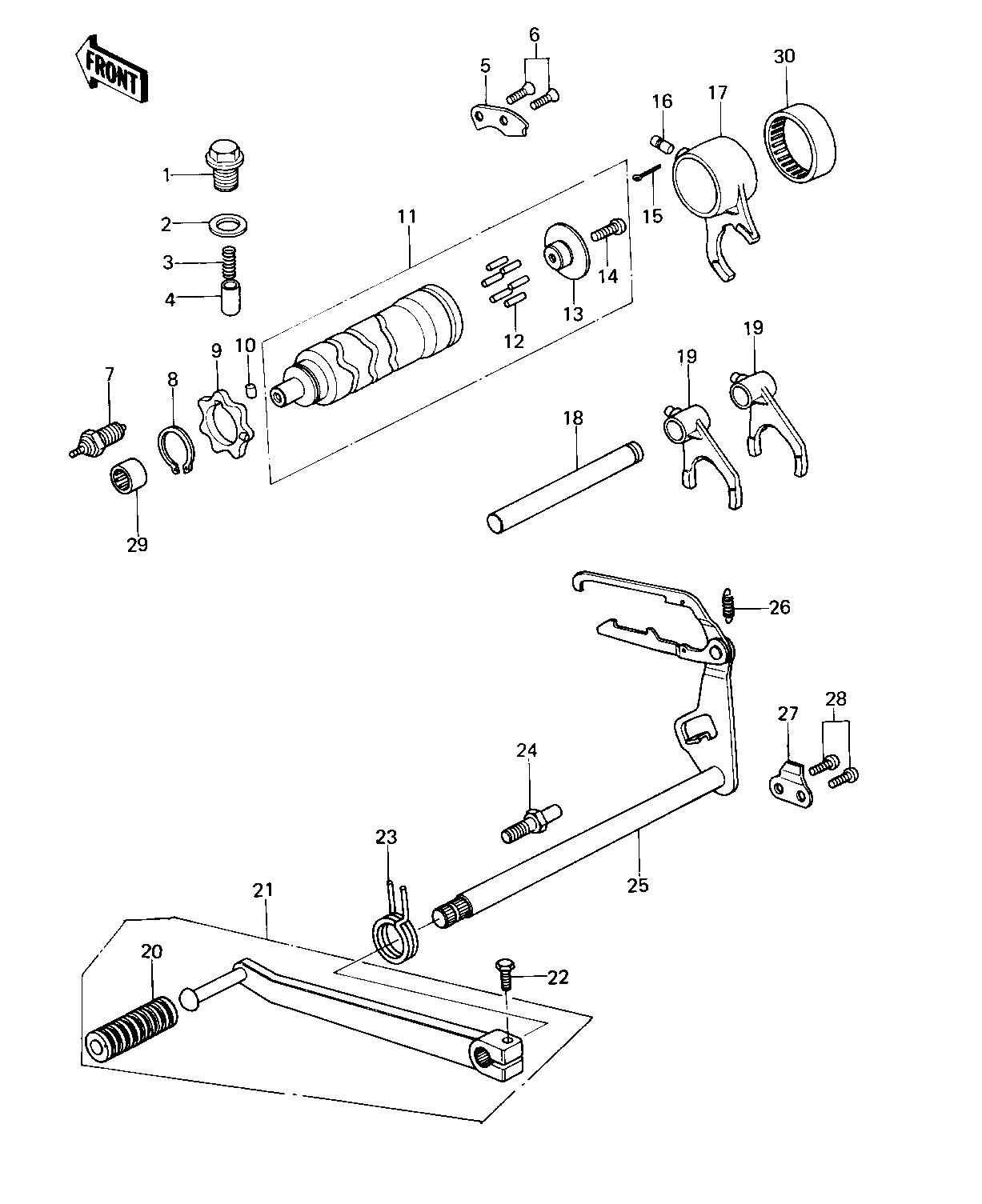

1979 KZ400-B2 - GEAR CHANGE MECHANISM

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT,NEUTRAL POSITION 1 92001-1037
GASKET,15.5X22X1 2 11009-1008
SPRING 3 92081-112
PIN-NEUTRAL POSITION 4 92043-076
PLATE,SIFT DRM POSITN 5 14014-1001
SCREW,CSK,6X16 6 92009-1007
SWITCH,NEUTRAL 7 13151-5002
CIRCLIP,30MM 8 480J3000
CAM-CHANGE DRUM 9 13145-1058
PIN-DOWEL,4X6 10 610A0406
DRUM ASSY,CHANGE 11 13239-1011
PIN GEAR CHANGE DRUM 12 92042-014
PLATE,SHIFT DRUM PIN 13 13142-016
SCREW PAN HEAD 6X14 14 220B0614
PIN COTTER 3.0X20 15 550D3020
DOWEL PIN,8X18 16 92042-021
FORK-SHIFT,5TH&TOP 17 13140-1053
ROD,SHIFT 18 13209-022
FORK-SHIFT,1,4&2,3 19 13140-1067
RUBBER CHANGE PEDAL 20 13157-004
PEDAL ASSY,GEAR SHIFT 21 13242-017
BOLT-UPSET,6X20 22 112G0620
SPRING,CHG PEDL RTN 23 92083-021 E/NO. 118001
SPRING,CHG PEDL RTRN 23 92083-028 E/NO. 141331
BOLT,RETURN SPRING 24 92001-1401
LEVER COMP,CHNG SHAFT 25 13161-1001
SPRING-CHANGE LEVER 26 92081-076
PLATE,GEAR SHIFT LEV 27 13169-011
SCREW PAN HEAD 6X16 28 220B0616
BEARING,NEEDLE,HK1210 29 92046-1010
BRG,NEDL,37BTM4312 30 92046-051
