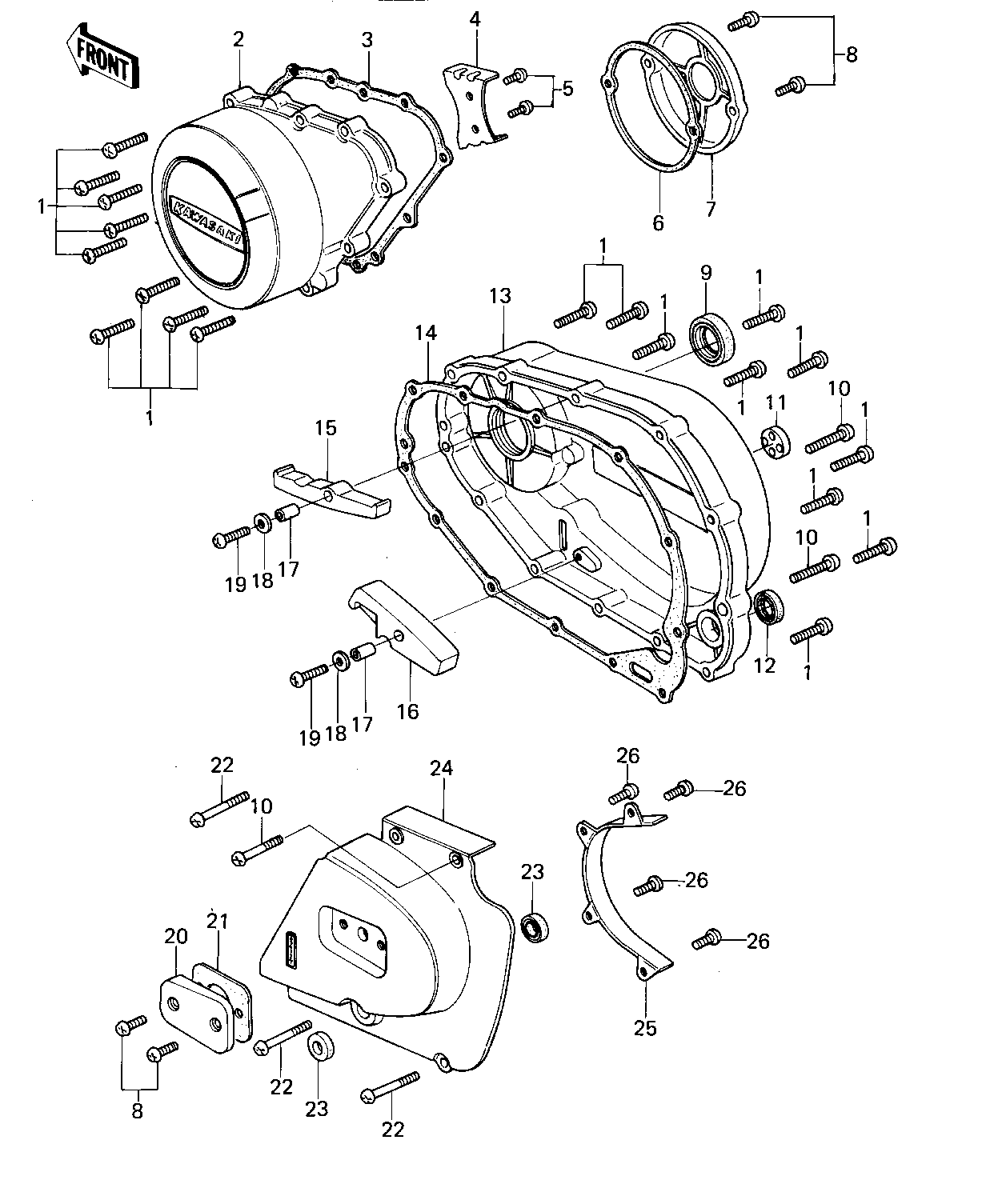

1979 KZ400-B2 - ENGINE COVERS

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SCREW PAN HEAD 6X30 1 220B0630
COVER,GENERATOR,BUFF 2 14031-1023
GASKET,GENERATER COV. 3 11009-1032
GUIDE,CHAIN 4 12053-1014
SCREW PAN HEAD 5X8 5 220B0508
GASKET,BREAKER COVER 6 14050-010
COVERBRK POINT,BUFF 7 14027-019-80
SCREW PAN HEAD 6X18 8 220B0618
OIL SEAL,R.H CRNKSFT 9 92050-065
SCREW PAN HEAD 6X40 10 220B0640
GAUGE,OIL LEVEL 11 52015-004
OIL SEAL SB20285 12 92049-012
COVER,CLUTCH,BUFF 13 14032-1013
GASKET,CLUTCH COVER 14 11009-1033
GUIDE,PRIMARY CHAIN 15 12053-1004
GUIDE,PRIMARY CHAIN 16 12053-1005
COLLAR,8X15 17 92027-1079
WASHER PLAIN 6MM 18 410B0600
SCREW PAN HEAD 6X25 19 220B0625
COVER,CLUTCH ADJUSTNG 20 14028-006-80
GASKET,CLUTCH ADJ CAP 21 14049-004
SCREW PAN HEAD 6X50 22 220B0650
OIL SEAL,TB13225.5 23 92051-005
COVER CHAIN 24 14026-1011-80
GUIDE,CHAIN 25 12053-1009
SCREW PAN HEAD 6X10 26 220B0610
