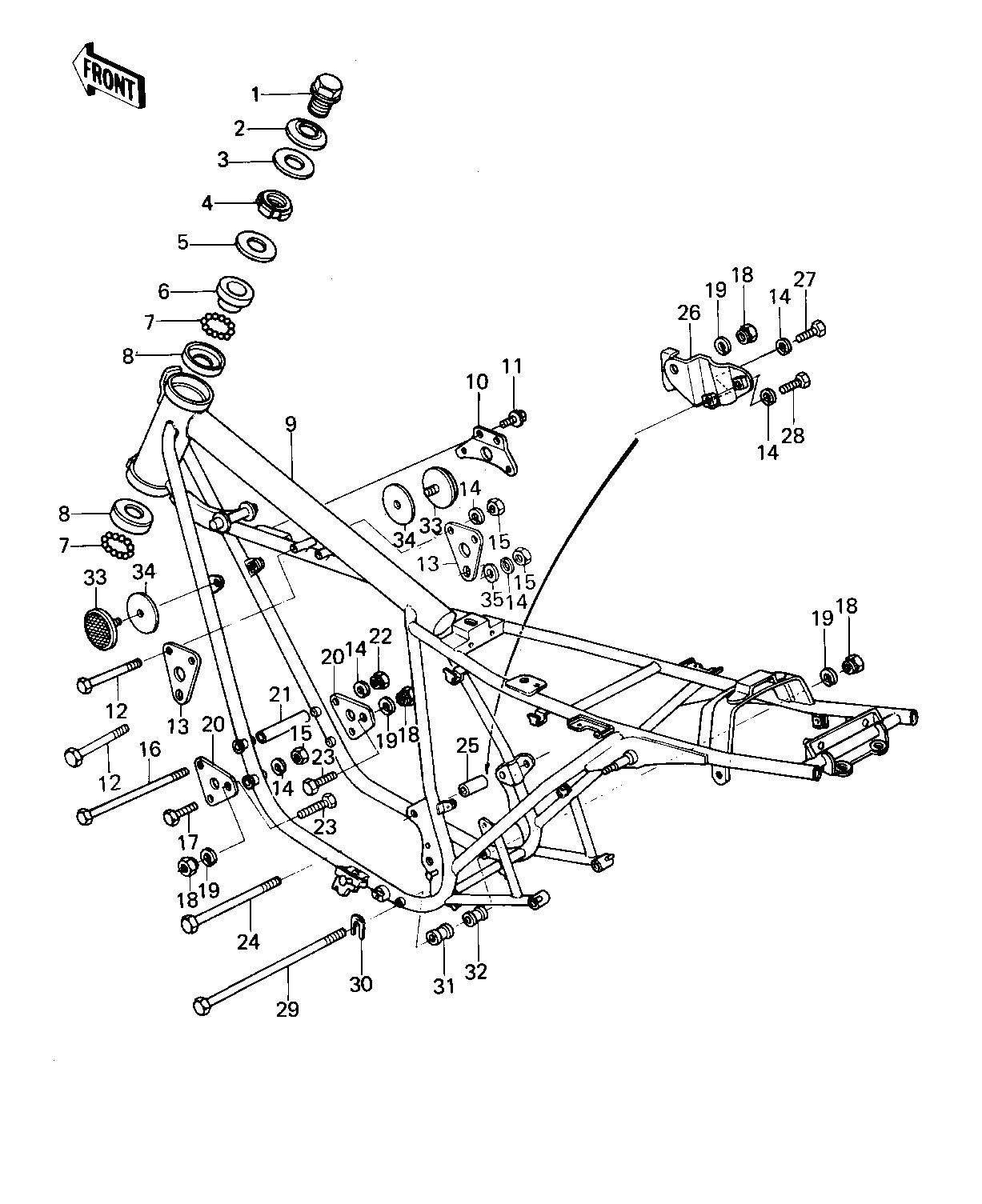

1979 KZ400-B2 - FRAME/FRAME FITTINGS

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT,STEERG STEM HEAD 1 92007-031
WASHER,STEERG STM HD 2 92022-230
WASHER,WAVE 3 46100-003
NUT STEERING STEM LCK 4 92090-007
CAP, STEERING STEM 5 46098-016
CONE STRNG STEM BERNG 6 92047-006
BALL STEEL 1/4' 7 600A0800
RACE STRNG STEM BERNG 8 92048-006
FRAME-COMP 9 32002-1260
BRACKET,IGNITON COIL 10 32058-049
BOLT,SPROCKET FITTING 11 92003-208
BOLT,FLANGED,8X60 12 92001-1581
BRACKET,ENGINE 13 32029-1016
WASHER SPRING 8MM 14 461F0800
NUT,8MM 15 311B0800
BOLT,HEX HEAD,8X253 16 92003-171
BOLT,HEX HEAD,8X59 17 110G0859
NUT,LOCK,10MM 18 92019-021
WASHER SPRING 10MM 19 461F1000
PLATE,ENG MOUNT,FRNT 20 32030-044
COLLAR,ENG PLAT,FRNT 21 92027-233
NUT,LOCK,8MM 22 92017-013
BOLT,HEX HEAD,10X50 23 92001-1254
BOLT FLANGED 10X220 24 92002-1197
COLLAR,ENG MOUNT UPPE 25 92027-228
PLATE,ENG MOUNT,REAR 26 32030-034
BOLT-SMALL-UPSET 8X25 27 115G0825
BOLT,8X20 28 115G0820
BOLT,HEX HEAD,10X292 29 92003-162
SHIM-ENG FIT FR,0.5MM 30 92025-053
SHIM-ENG FIT FR,0.8MM 30 92025-054
SHIM-ENG FIT FR,1.0MM 30 92025-055
SHIM-ENG FIT FR,1.6MM 30 92025-056
SHIM-ENG FIT FR,2.0MM 30 92025-057
SHIM-ENG FIT FR,2.3MM 30 92025-058
COLLAR,ENG MOUNTING 31 92027-160
COLLAR 32 92027-250
REFLECTOR,REFLEX,REAR 33 28012-009
DAMPER RUBBER,REFLECT 34 92094-011
WASHER PLAIN 8MM 35 411B0800
