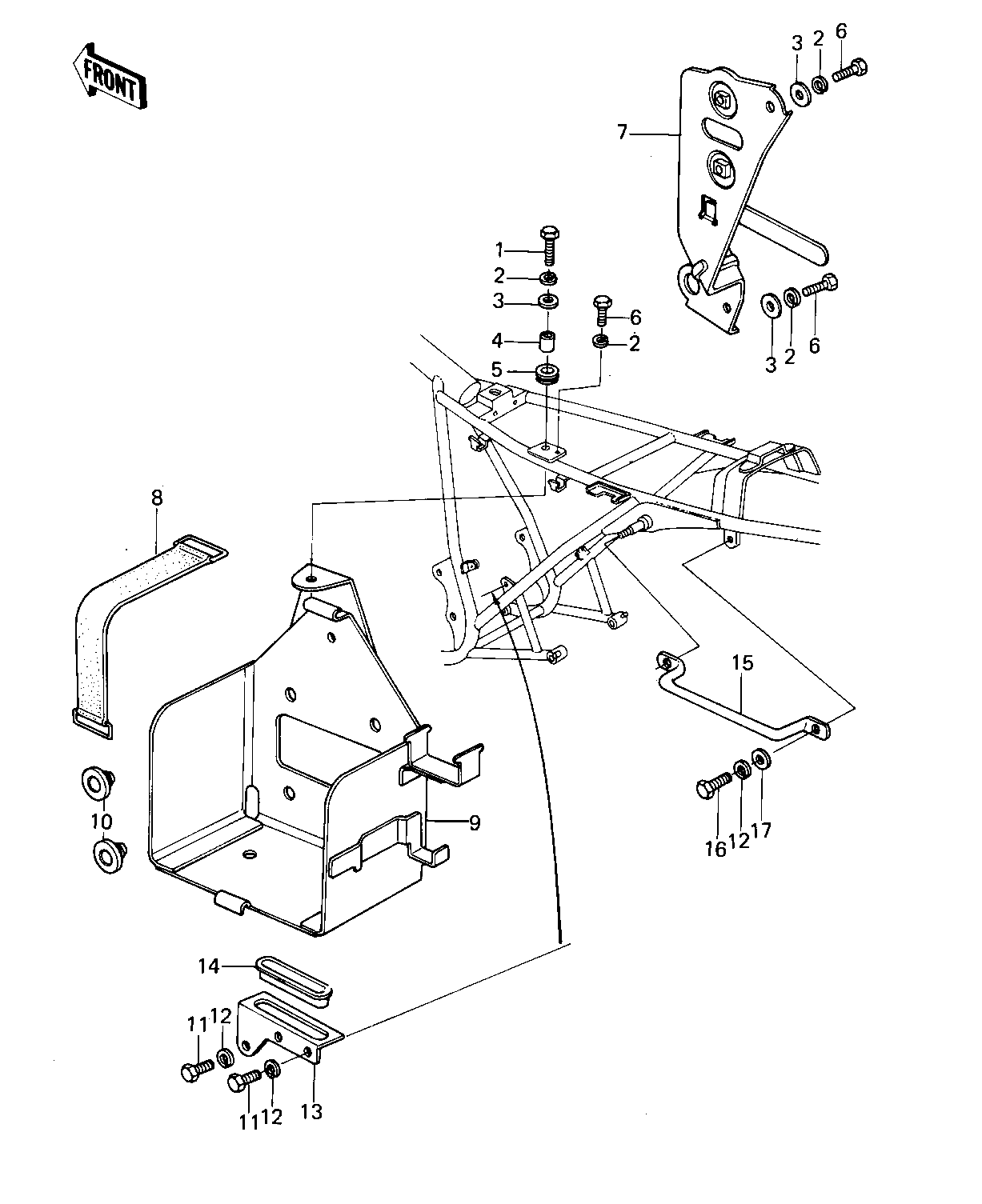

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT 6X22 1 112B0622
WASHER SPRING 6MM 2 461F0600
WASHER 6.5X20X1.6T 3 92022-125
COLLAR,6.8X10X8.5 4 92027-129
DAMPER RUBBER 5 92075-076
BOLT-UPSET 6X14 6 112B0614
BRACKET,ELECTRIC 7 11034-1071
BAND BATTERY 8 92072-006
CASE,BATTERY 9 32097-041
DAMPER RUBBER 10 92075-078
BOLT-SMALL-UPSET,8X16 11 115G0816
WASHER SPRING 8MM 12 461F0800
BRACKET,BASE 13 32129-008
DAMPER RUBBER 14 92075-280
GRIP FRAME 15 32109-009
BOLT-SMALL-UPSET,8X16 16 115G0816
WASHER PLAIN 8MM 17 410B0800
