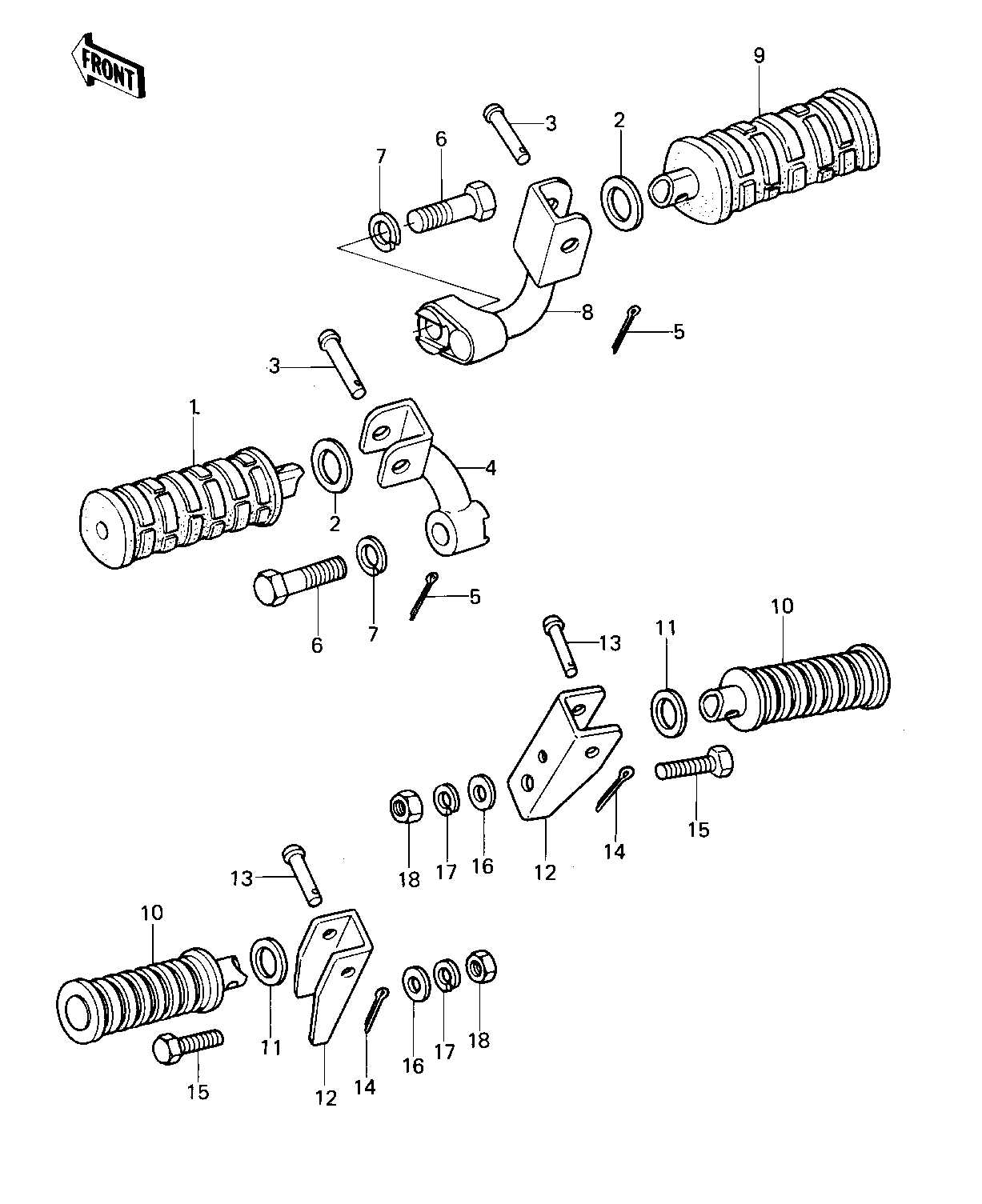

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BAR-FOOTREST,L.H 1 34028-011
WASHER,PLAIN 2 92022-250
PIN-FOOTREST BAR FIT 3 92043-080
HOLDER-STEP,FR,LH 4 34003-1078
PIN COTTER 2.5X16 5 550D2516
BOLT-HEX HEAD,12X36 6 113B1236A
WASHER SPRING 12MM 7 461F1200
HOLDER-STEP,FR,RH 8 34003-1079
BAR-FOOTREST,R.H 9 34028-012
RUBBER,FOOTREST 10 92076-027
WASHER-PLAIN (OPT) 11 92022-199
BRACKET,STEP 12 32054-1021
PIN 13 92043-1464
PIN,COTTER,2.0X12 14 550D2012
BOLT,HEX HEAD,10X50 15 92001-1254
WASHER PLAIN 10MM 16 410B1000
WASHER SPRING 10MM 17 461F1000
NUT,10MM 18 314B1000
