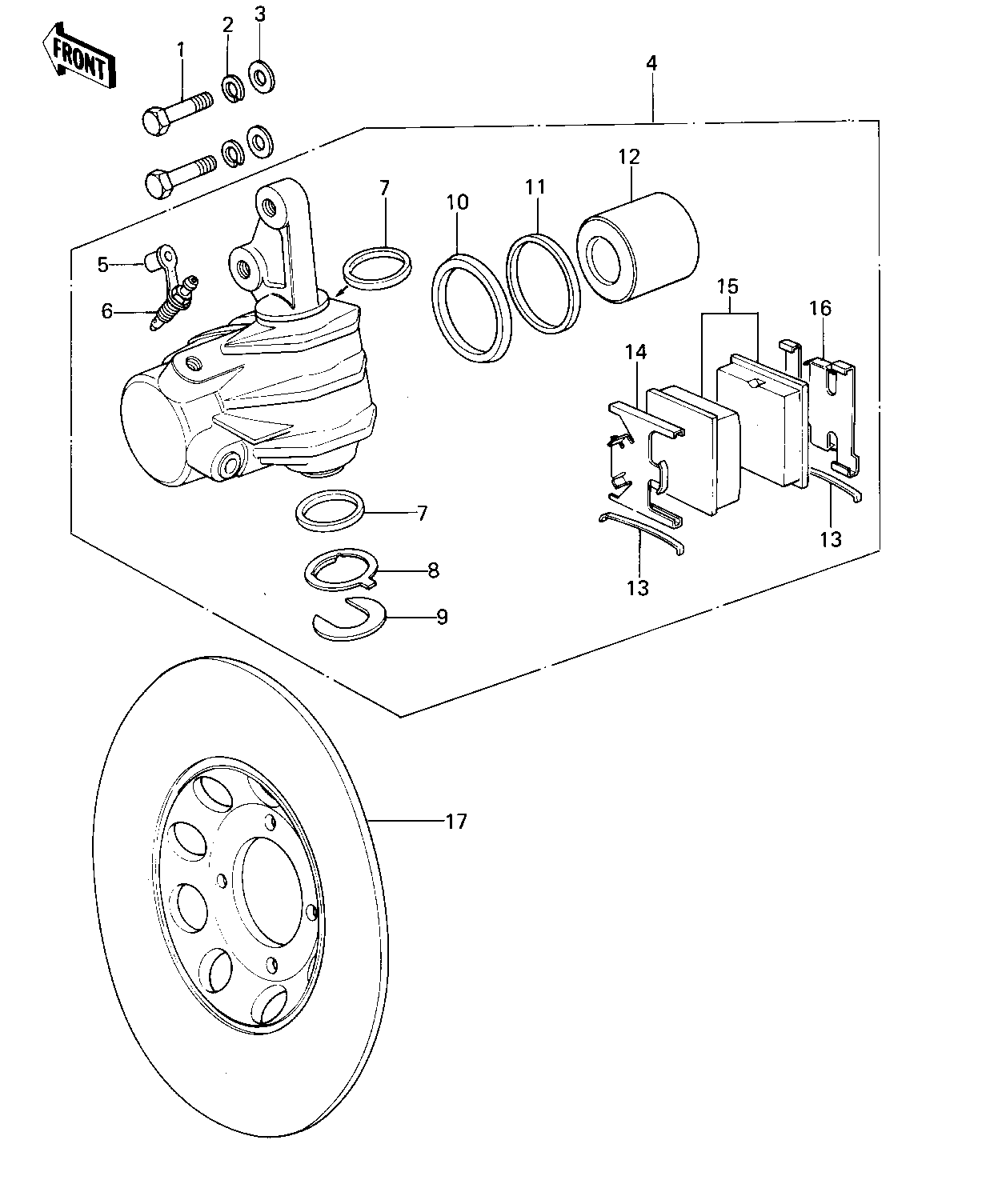

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT,HEX HEAD,10X57 1 92007-044
WASHER SPRING 10MM 2 461F1000
WASHER PLAIN 10MM 3 410B1000
CALIPER ASSY 4 43041-1003
CAP,BREEDER 5 43057-004
BREEDER 6 43056-004
SEAL, FRICTION 7 43049-1001
WASHER SET,LOCK 8 92022-1161
WASHER SET,LOCK 9 92022-1161
RING,PISTON SEAL 10 43049-004
SEAL 11 43083-002
PISTON,CALIPER 12 43048-005
SPRING 13 92081-1031
CLIP,PAD INNER 14 92037-1066
PAD SET 15 43050-5004
CLIP,PAD,OUTER 16 92037-1004
DISC.PLATE 17 41080-1001
