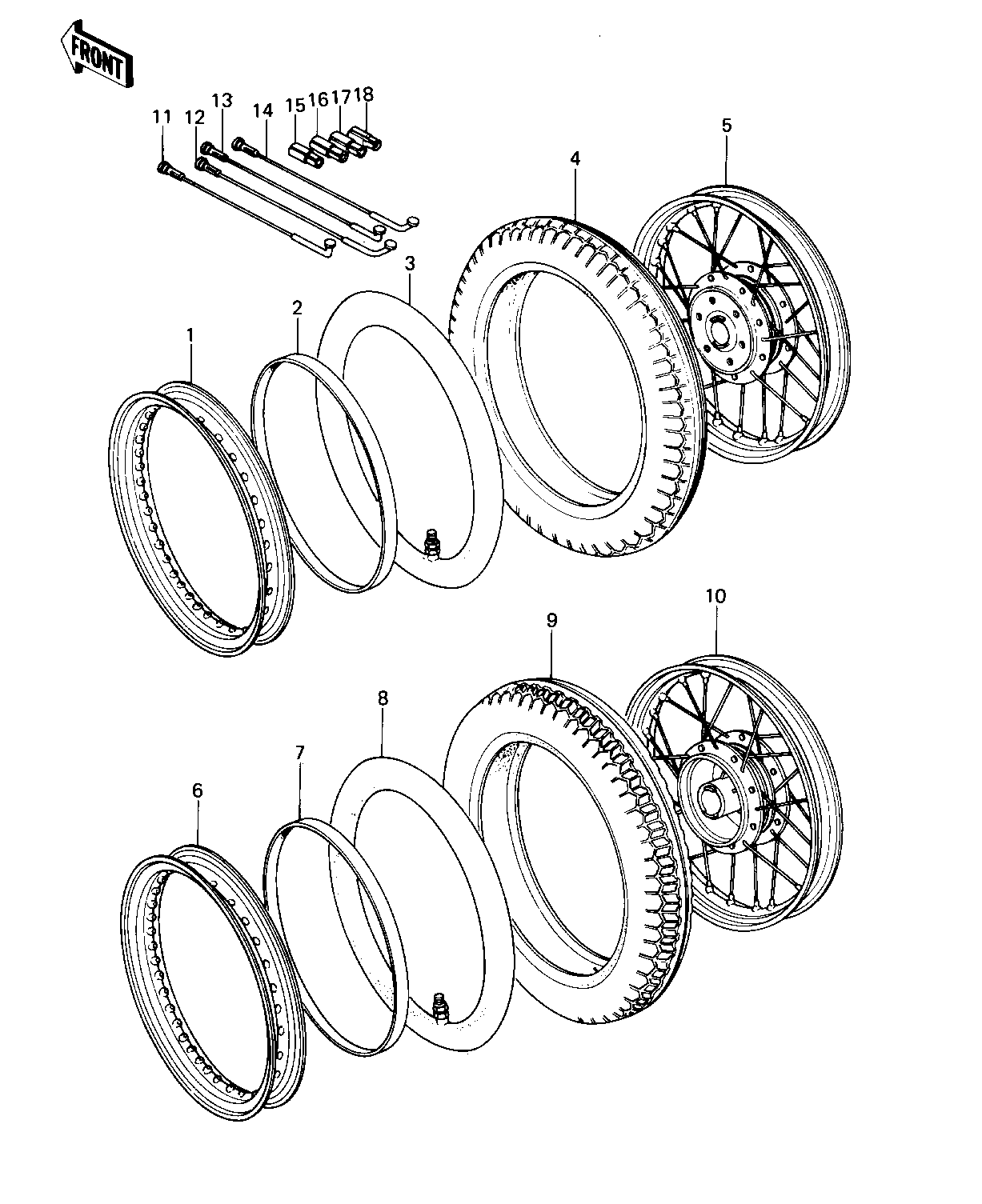

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
RIM,FRONT,1.60X18 1 41025-1007
BAND RIM 2 41023-001
TUBE 250/275-18 3 41022-032
TIRE 300S-18 Y986A F 4 41002-1032 Y-986A
WHEEL ASSY,FRONT 5 41073-5055
RIM,REAR,18.5X18 6 41025-1003
BAND,RIM,4.00/5.10-18 7 41023-1006
TUBE 300/325/360-18 8 41022-028
TIRE 350S-18 Y987C R 9 41002-1012 Y-987A
WHEEL ASSY,REAR 10 41073-5039
SPOKE-ASY,FR INNER 11 41027-054 174.5 M/M X 102
SPOKE-ASY,FR OUTER 12 41028-054 174 M/M X 83
SPOKE-ASY,RR INNER 13 41027-5008 155.5 M/M X 102
SPOKE-ASY,RR OUTER 14 41028-5007 154.5 M/M X 84
WEIGHT,BALANCE,10G 15 41075-1007
WEIGHT,BALANCE,20G 16 41075-1008
WEIGHT,BALANCE,30G 17 41075-1009
WEIGHT,BALANCE,5G 18 41075-1010
